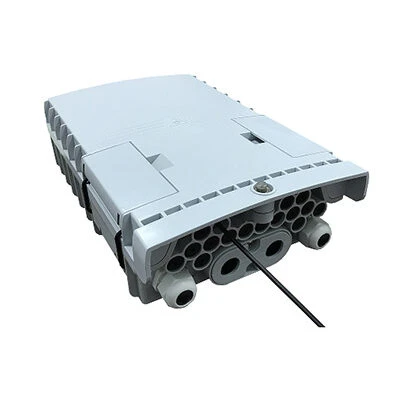

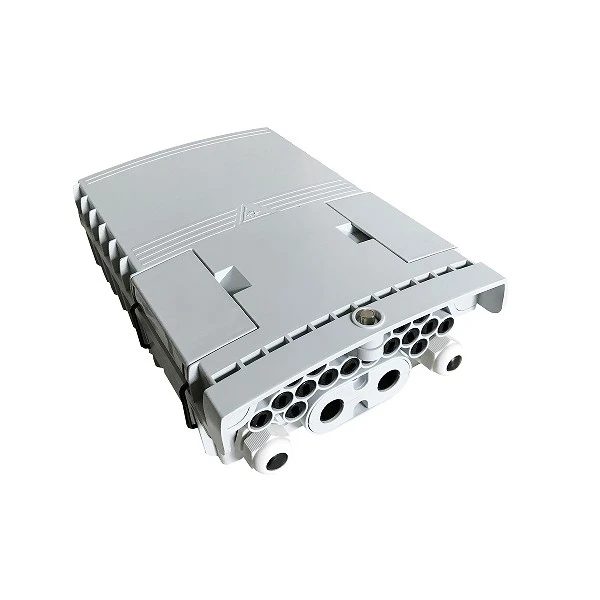

16 Cores Popular Fiber Optic Terminal Box

Fiber Splitter Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space.

Send Inquiry

Description

Technical Parameters

16 Cores Popular Fiber Optic Terminal Box

Description

product-1073-91

Features and Specification

Material	ABS or PC+ABS	IP Rate	IP65
Demension (WHD)	27417582mm	Weight	1.2kg
Max Splicing (Core)	16 cores	Working temperature	-40℃~+85℃
Relative humidity	≤85%(+30℃)	Atmospheric pressure	70KPa~106 KPa
Insertion loss	≤0.2dB	UPC return loss	≥50 dB
APC return loss	≥60 dB	Life of insertion and extraction	>1000 times

• Advanced structure design, easy operation and reasonable routing.
• Material: PC+ABS or PP
• Moisture proof, waterproof, dust-proof, anti-aging.
• Protection level up to IP65.
• 1 oval optical cable entry, Meet the straight-through function without cutting the fiber.
• Installation method: pole-mounted , wall-mounted.

product-750-370
