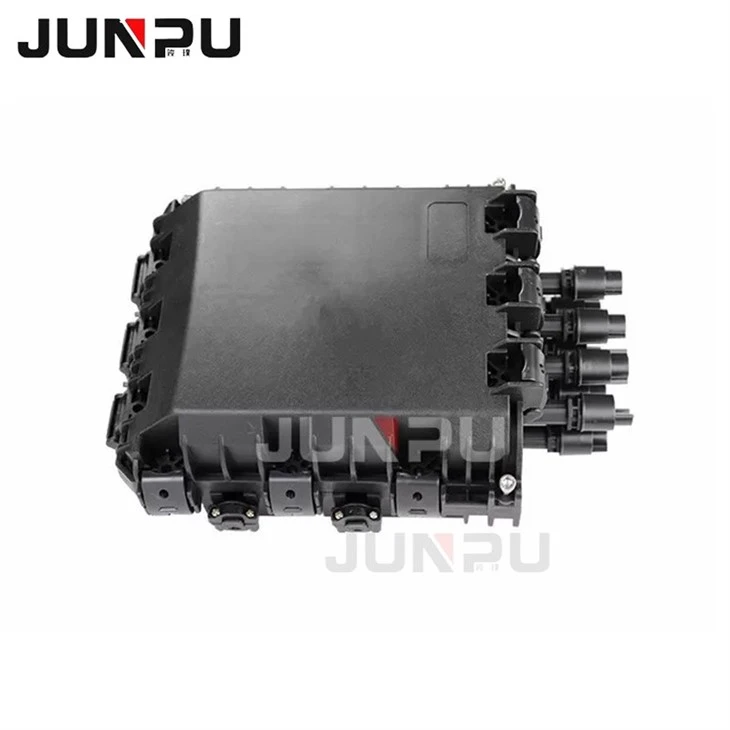

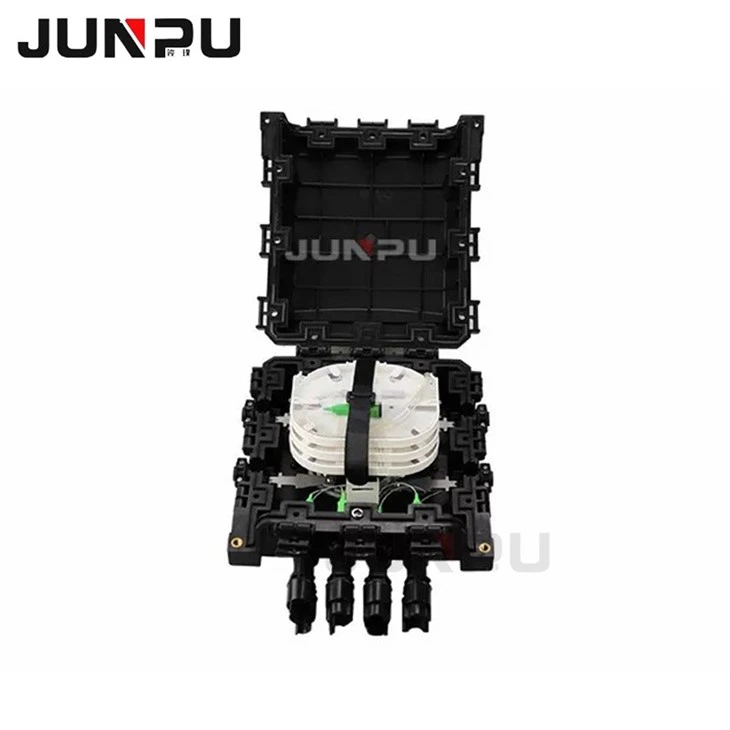

Outdoor Fiber Optic Distribution Box, FTTH Fiber Optic, IP65
Description
The speed outdoor 24port enclosure is designed to bring a high-speed fiber connection and greater bandwidth closer to home and business. FTTH offers the user flexibility and the opportunity to 'future-proof' end-to-end connectivity with the ever-changing technology.
Features
●Indoor & outdoor use
●Compact design

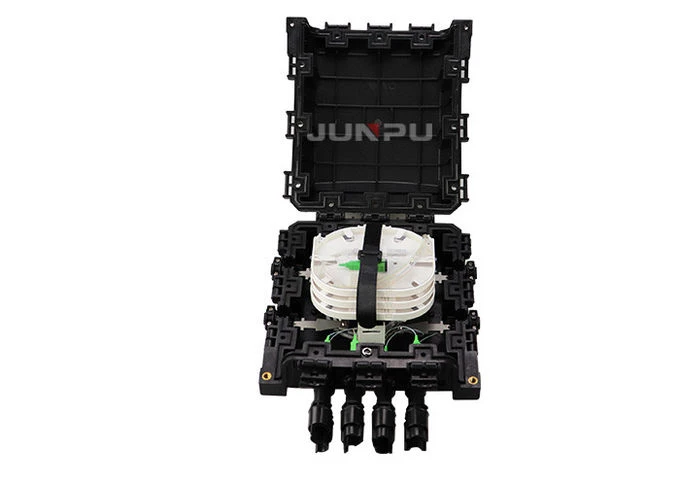

●Hinged & lockable top cover
●UV & water resistant.
●Cable entry access from the bottom
●Inlet and outlet ports sealed with rubber grommets

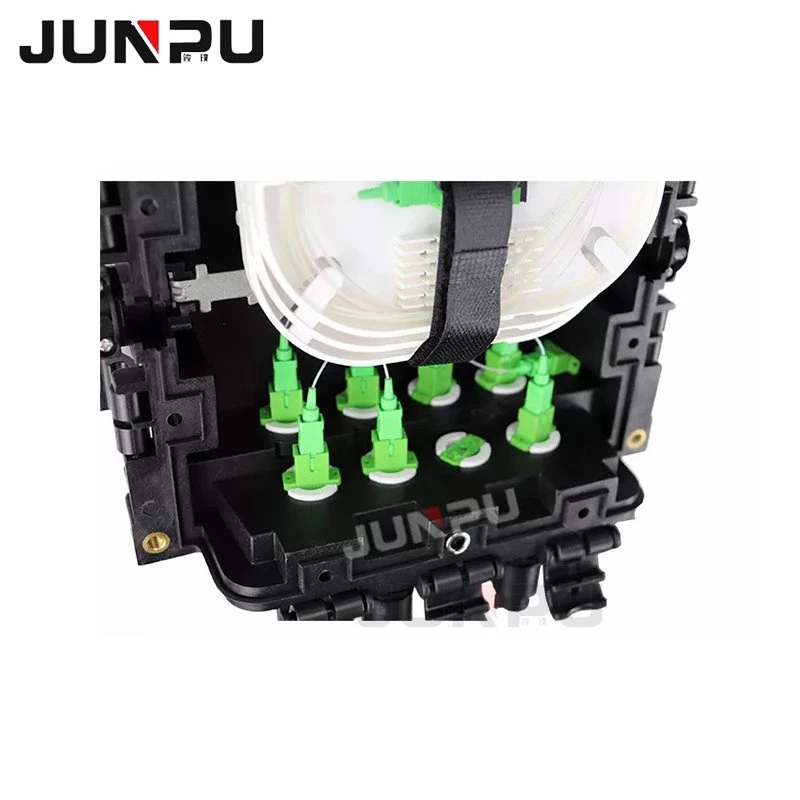

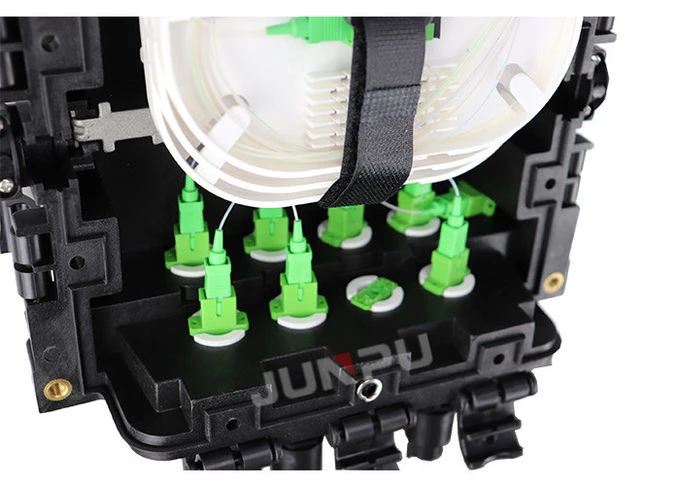

●Integrated fiber splice cassettes
●Splicing & patching
●Splice protectors included
●Accommodating PLC metal tube splitter
●Wall Mount kit

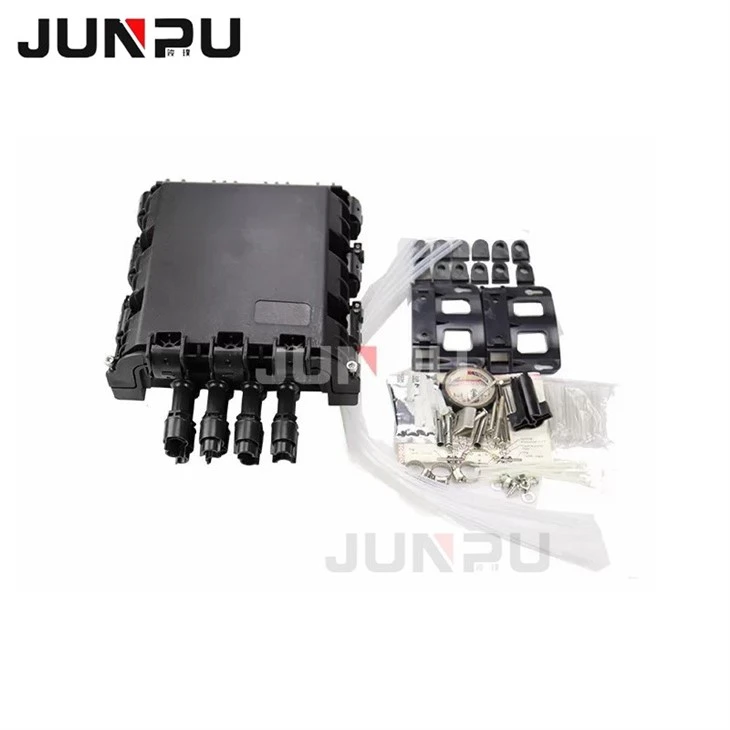

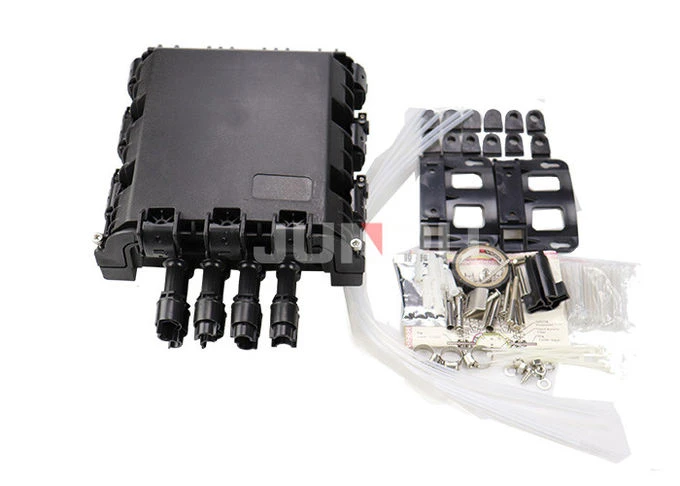

●Fixing material included
Details
|
Single fibre count (max) |
96 |
|
Splices (max) |
96 |
|
Heatshrink splice holders(max) |
96 |
|
Splice trays |
4(4 x24 fbre) |
|
Cable entry ports |
3(14mm) |
|
Outlet parts |
24(3-5mm) |
|
Outlet Grommets |
24 (3-5 mm) 3(7 mm) 3(10 mm) |
|
Adaptor holders |
24 |
|
Adaptor type |
sc Simdex/Lc Duplex |
|
Mounting application |
Wall |
|
Material |
Height:307mm |
|
Colour |
Grey |
|
IPRating |
IP 65 |
|
Compliant |
RoHs |
|
/ |
/ |
FAQ
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, we offer 1-2 years warranty on our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as per your request.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
Installation
1.Wall-mounted
According to the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.
2.Pole-mounted
Fix 1 set of the easy pole ring to the telecom pole.
3.Aerial-mounted
One is fixed on the pole, the cable connector box parallel to the pole.
The other is fixed on the cable, the cable connector box parallel to the cable.
