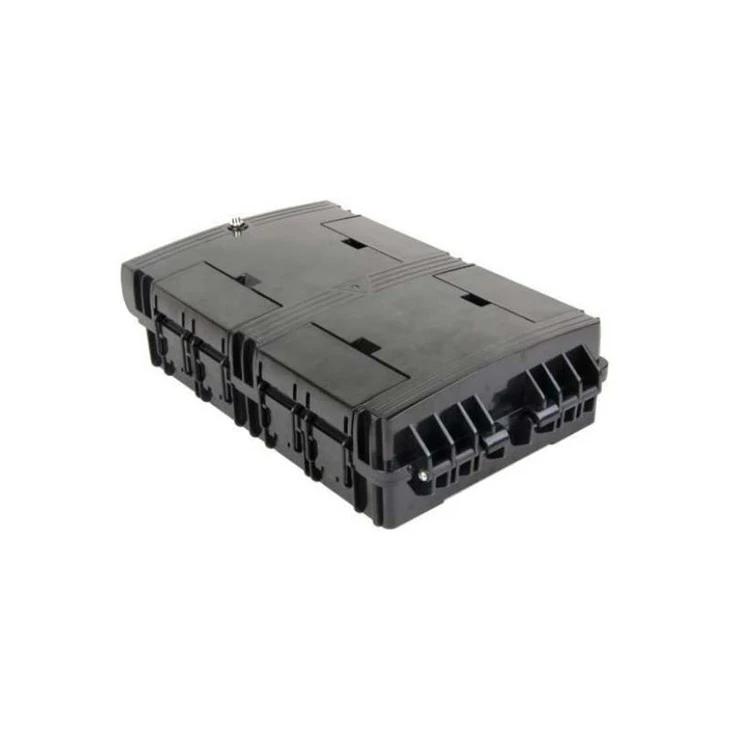

16 Cores Fiber Termination Splitter Box

Fiber Splitter Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space.

Send Inquiry

Description

Technical Parameters

16 Cores Fiber Termination Splitter Box

Description

16 Cores Fiber Termination Splitter Box Fiber Splitter Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space.

Features

1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm

6. Suitable for the fusion splice or mechanical splice
7. 1 uncut cable port and 2 reservation cable ports for feeder cables
8. 3 trays at 12 fibers/tray, 36 fibers maximu

Max Capacity: SC 16 Ports

Size: A*B*C(mm) 330*210*87

Max Capacity: SC 16 Ports

Input diameter: 2*Φ 16mm

Output diameter: 16*2×3 mm

PLC Splitters: 2*1×8 Or 1*1×16

IP Level: IP65
