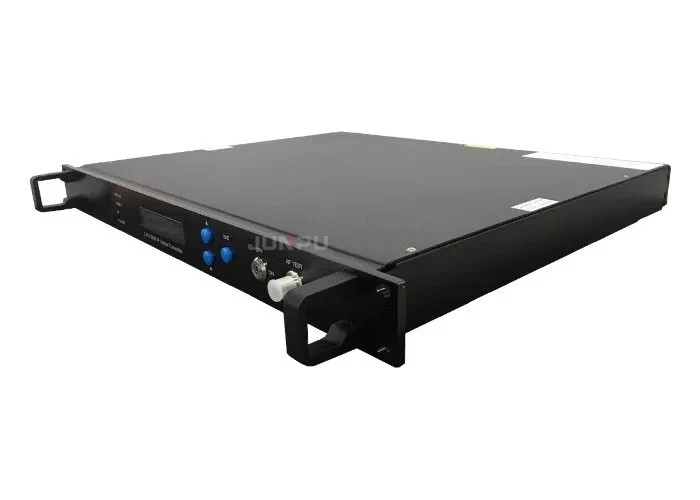

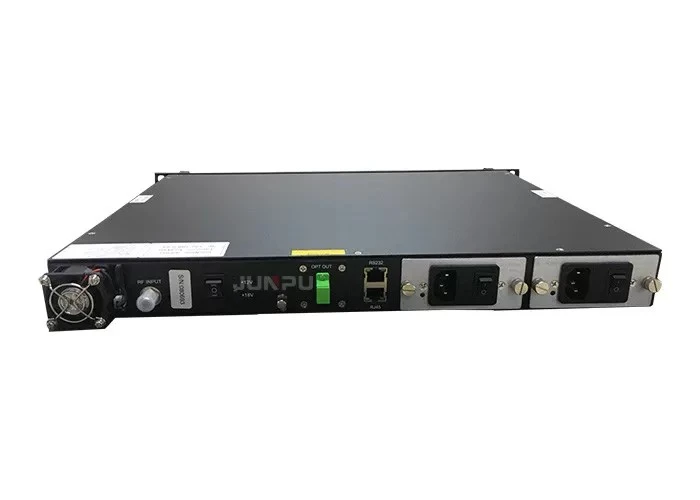

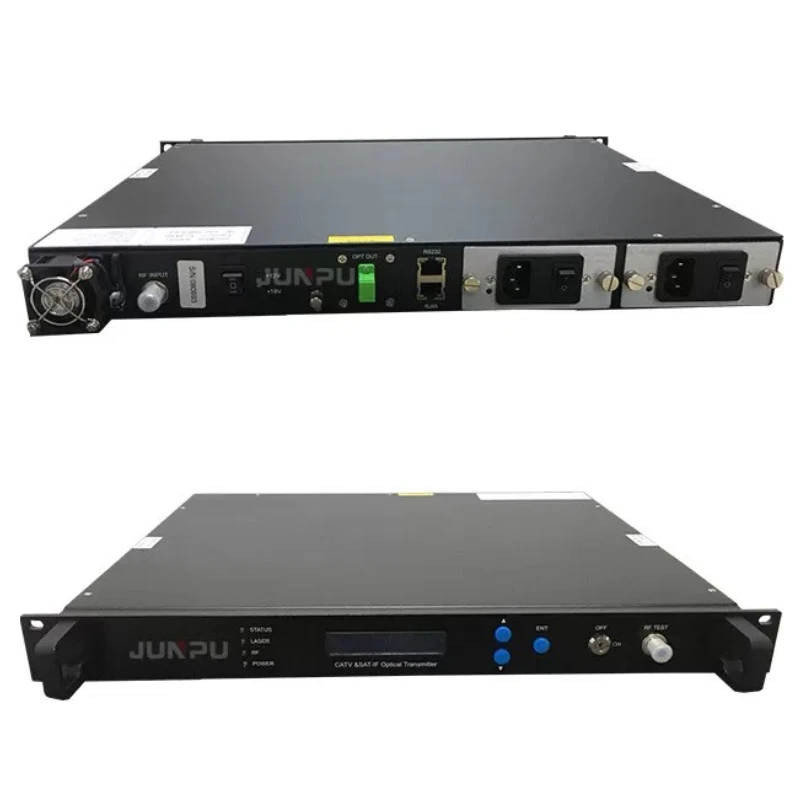

FTTH 2×7dbm 1550nm CATV Transmitter
he internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of the thermoelectric refrigeration device of the laser module assures the user of the best quality and stable working for a long time.
The internal microprocessor software has many functions such as laser monitoring, number display, trouble alarm, and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
01
Product Features
•The operating bandwidth is up to 47~862MHz (47~1080MHz).
•CNR ≥ 53dB and excellent CTB, CSO index.
•AGC/MGC mode is optional at the spot. OMI can be optimized at the spot.
•Perfect RS232 communication interface.
•Advanced SNMP network management function.
•1+1 power supply backup, switch automatically.
•Casing temperature auto-control.
•Excellent P/P ratio.
Details
|
Parameter |
Specification |
|
Product Name |
Catv 1550nm External Optical Transmitter |
|
Working Wavelength |
1550±10 |
|
SBS adjustable |
13 ~ 19dbm or 13,16,18,19dbm adjustable |
|
Output Optical Power |
1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11 |
