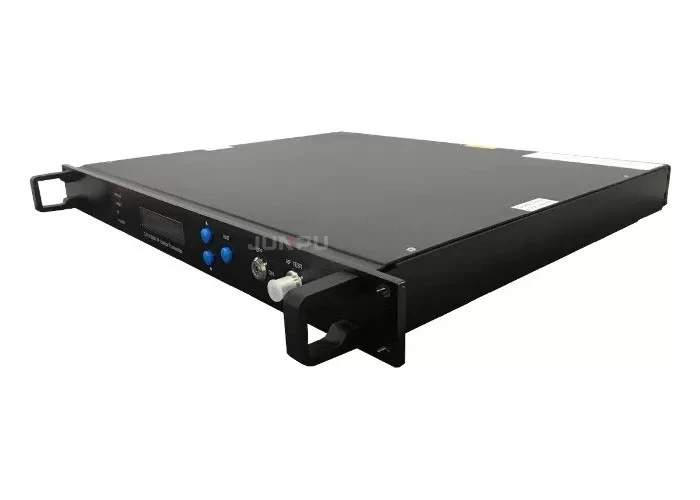

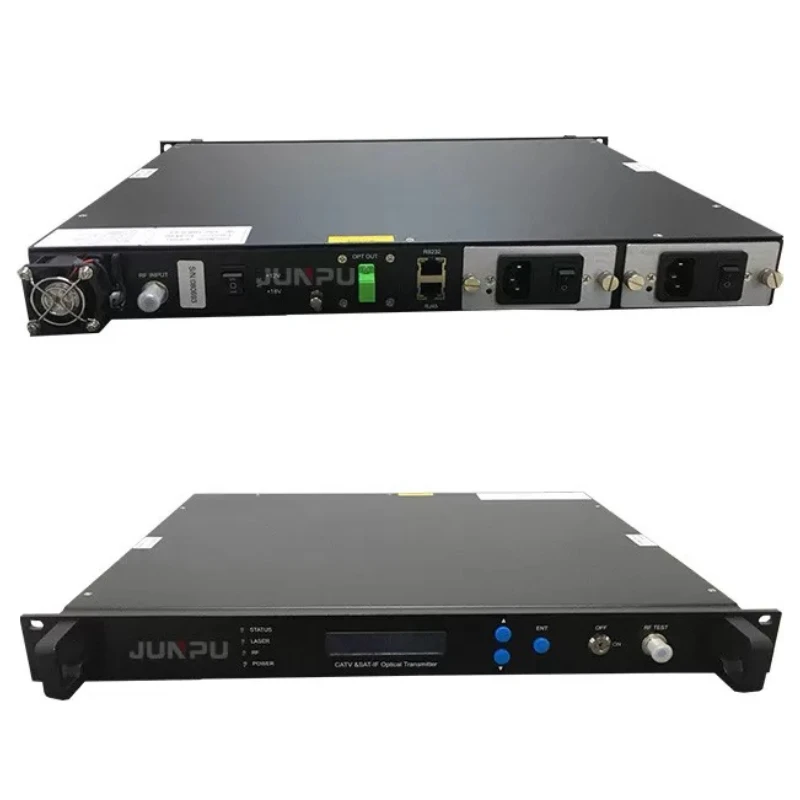

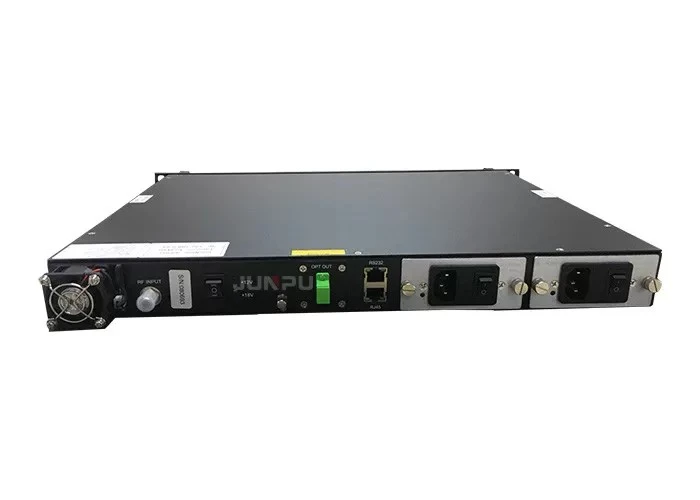

1550nm CATV FTTH Optic Transmitter
1550 direct modulation optical transmitter series direct-modulation optical transmitter is a 1310/1550nm laser transmission device independently developed by WSEE and has complete independent intellectual property rights. It has high performance, high reliability and excellent performance-cost ratio and can be widely used in various applications. Long-distance digital and analog signal communication applications include secondary CATV trunk lines and distribution networks, CWDM/DWDM systems, fiber optic sensing, and security monitoring systems.
Product Features
* The dual-module structure is reserved to increase the functions of light emitting, EDFA, light collection, RF switch, and other functions.
* Modular structure, easy to expand the function of equipment and maintenance.
* Standard network management interface, in line with SNMP network management protocol.
* Laser temperature stabilization circuit (ATC) and optical power output stabilization circuit (APC) ensure optimal laser performance.
* The power supply can realize dual power hot backup, snap-type fixed, one-touch pull. Easy to operate, firmly fixed. Voltage 220V & 110V & 48V optional.
Details
|
Parameter |
Specification |
|
Product Name |
Catv 1550nm External Optical Transmitter |
|
Working Wavelength |
1550±10 |
|
SBS adjustable |
13 ~ 19dbm or 13,16,18,19dbm adjustable |
|
Output Optical Power |
1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11 |
