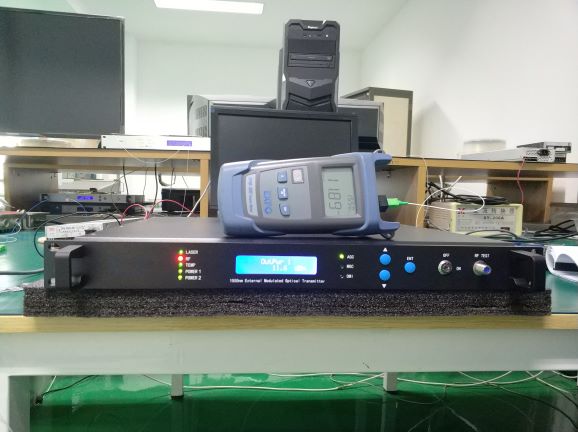

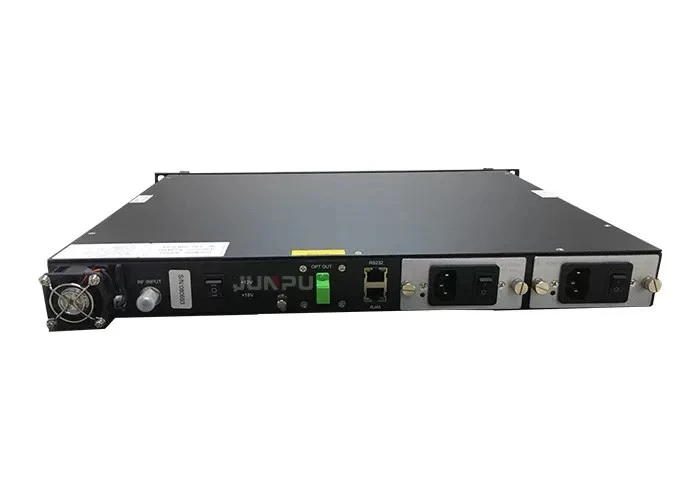

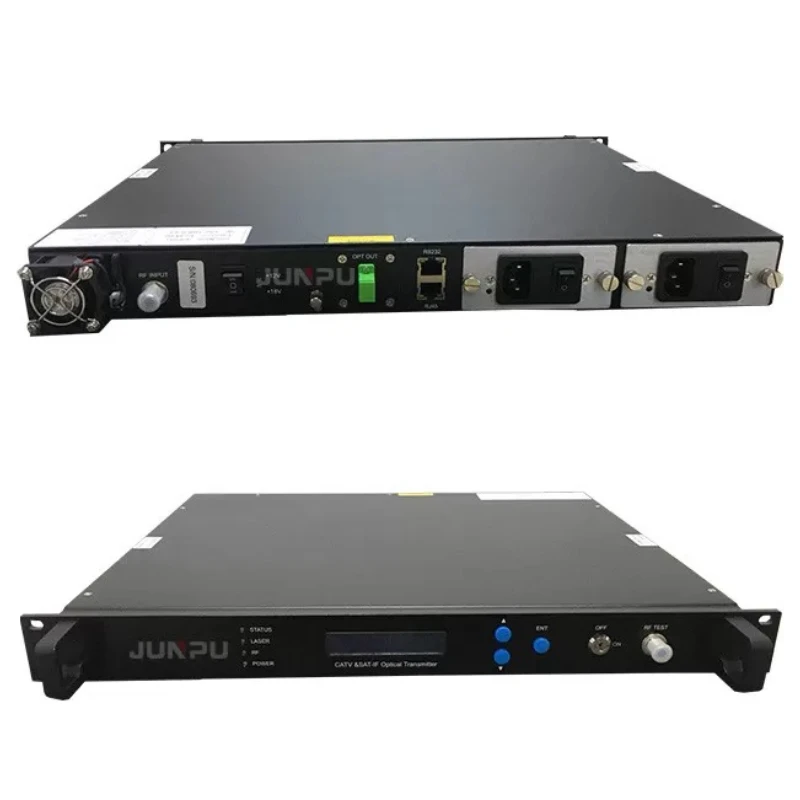

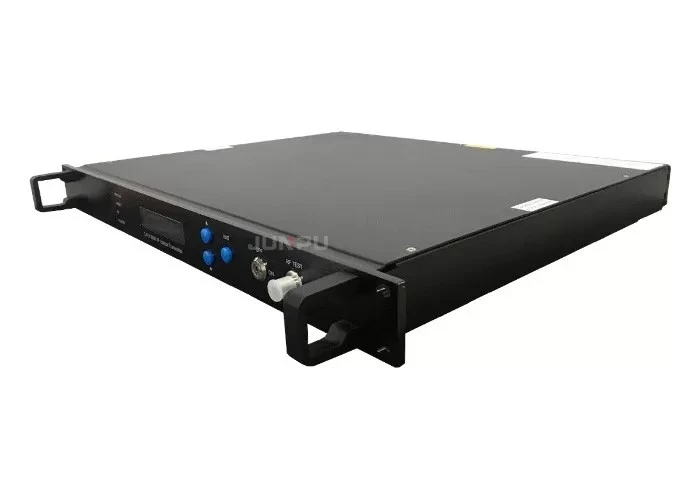

2*7dbm FTTH Fiber Optical CATV Transmitter
1550 series is 1550nm externally modulated optical transmitter with the best performance and the highest index. It is the first choice for long-distance transmission and large area covered local networks. It is applied to: the optical modulation and optical insertion of large and medium-sized 1550nm optical transmission system; the upgrading and expansion of WDM and its related networks. It is the core equipment of 1550nm network transmission system to for triple-play and FTTX.
01
Product Features
1-Low chirp, high linearity DFB laser, chirp compensation.
2-Full-automatic OMI control, AGC & MGC.
3-Dual module RF driver , high efficient laser pre-distortion adjustment.
4-Intuitionistic modulation select display. Built-in dual back-up power supply, switch automatically .
5-Casing temperature auto-control, ensure the long life of the laser.
Details
|
Parameter |
Specification |
|
Product Name |
Catv 1550nm External Optical Transmitter |
|
Working Wavelength |
1550±10 |
|
SBS adjustable |
13 ~ 19dbm or 13,16,18,19dbm adjustable |
|
Output Optical Power |
1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11 |
