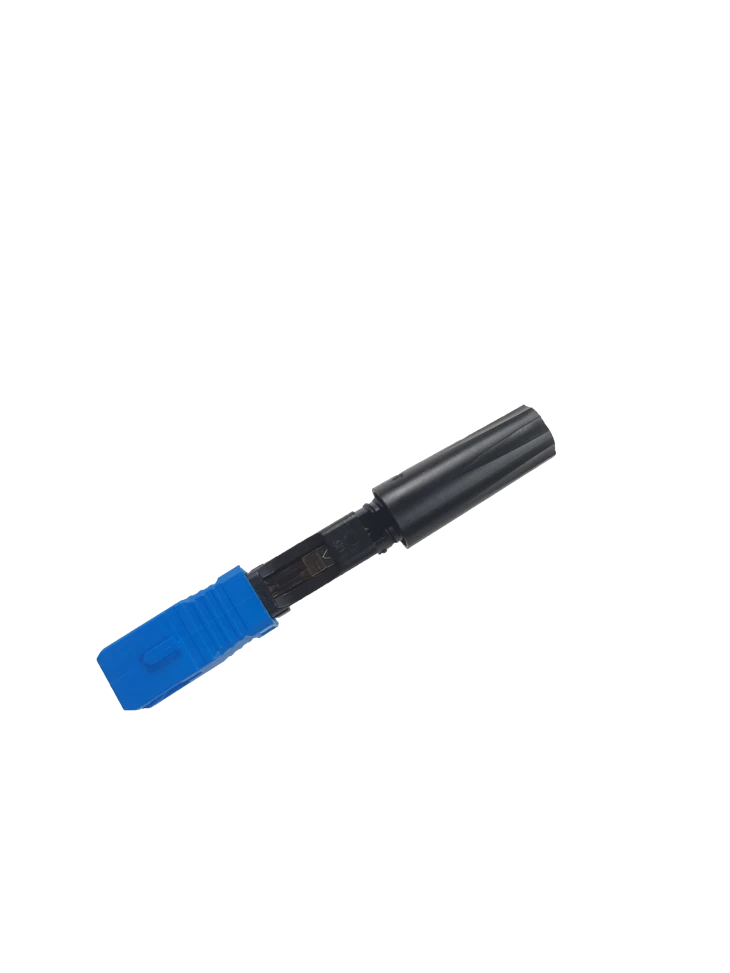

Field UPC Fast Connector
Fast connectors are a good way to solve connector field wiring jobs and fiber to the home projects. No glue, grinding and power tools are required for assembly, and it is widely used in construction sites where quick connections are required to provide fast and stable connectors for operation.
|
Fiber Mode |
SM(singlemode), MM(multimode) |
||
|
Fiber Diameter |
125um ( G652 ,G657 ) |
||
|
Polish Type |
UPC, PC, APC |
||
|
Insertion loss |
Average value≤0.25 dB,max value≤0.3 dB |
||
|
Fiber cable type |
0.9mm/2.0mm/3.0mm |
||
|
Endurance |
100times re-connections, ≤0.3dB |
||
|
Operation temperature: |
-40℃ - 75℃ |
||
|
OME |
Yes |
||
|
Weight |
3.5g |
||
Features
- A high performance, easy to use mechanical fiber optic connector.
- It can be widely used in FTTH drop cable connection and inter-connection.
- It has the same connection performance as the standard SC connector, and can be connected directly to the standard SC adapter.
Details
JUNPU Fiber Optic Fast Connector
JUNPU Fiber Optic Products
- Advanced production and testing equipment
- Professional manufacturer, 100% tested.
- Full compliance with ISO 9001:2008 quality management system
- Our company has experienced professional team
- Provide reliable solutions and satisfactory services
- Warmly services with careful attentions.
- Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
