1550nm 16*19dmb CATV EDFA WDM

CATV EDFA /PON EDFA WDM /XG-PON EDFA WDM 1550nm 16*19dmb Optical Amplifier

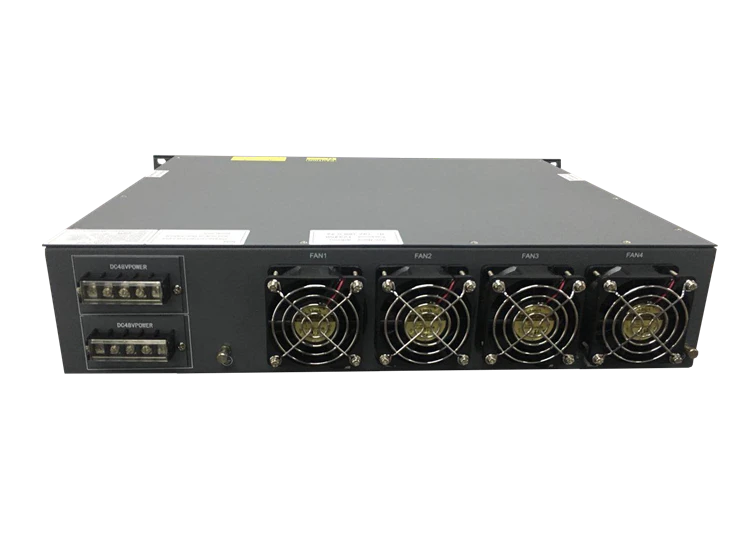

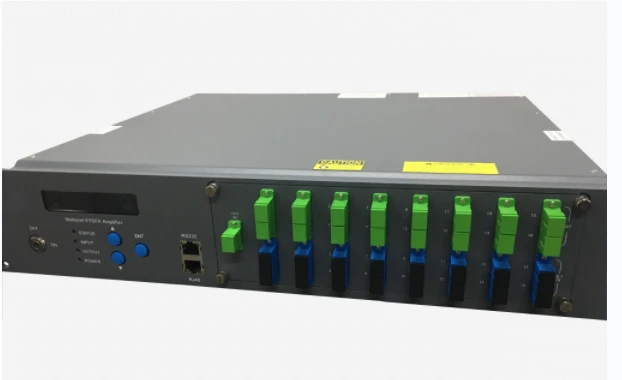

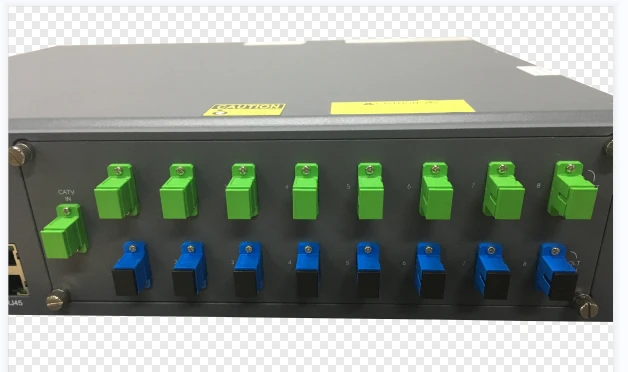

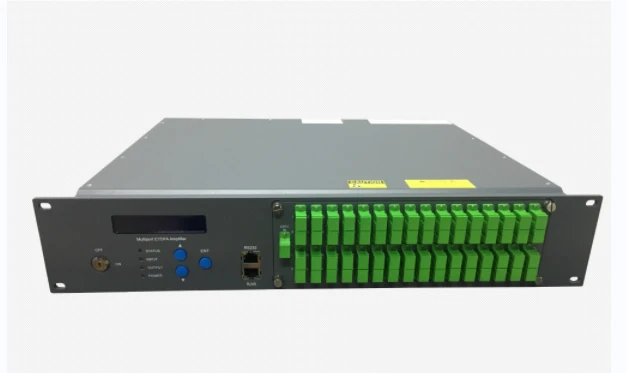

JUNPU CATV EDFA /PON EDFA WDM /XG-PON EDFA WDM optical amplifier with a gain spectrum bandwidth of 1535~1565nm. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV /PON systems in large and medium-sized cities. The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement;

1. .Perfect APC, ACC, ATC control, users use in different networks, good ventilation design and temperature-controlled fan, ensure the long life and high reliability of PUMP laser.
2. Excellent protection circuit design, with light detection, optical return loss monitoring. Great protection of lasers and light path safety.
3. Demultiplexer for 1310/1490/1560nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB);.
4. Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
5.Using digital control chip, remote or local output power adjustable.
