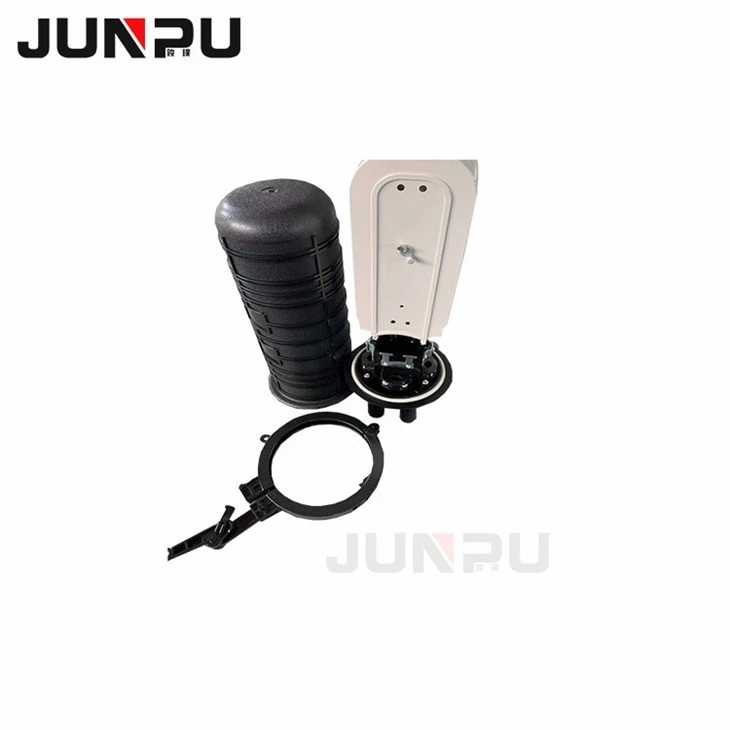

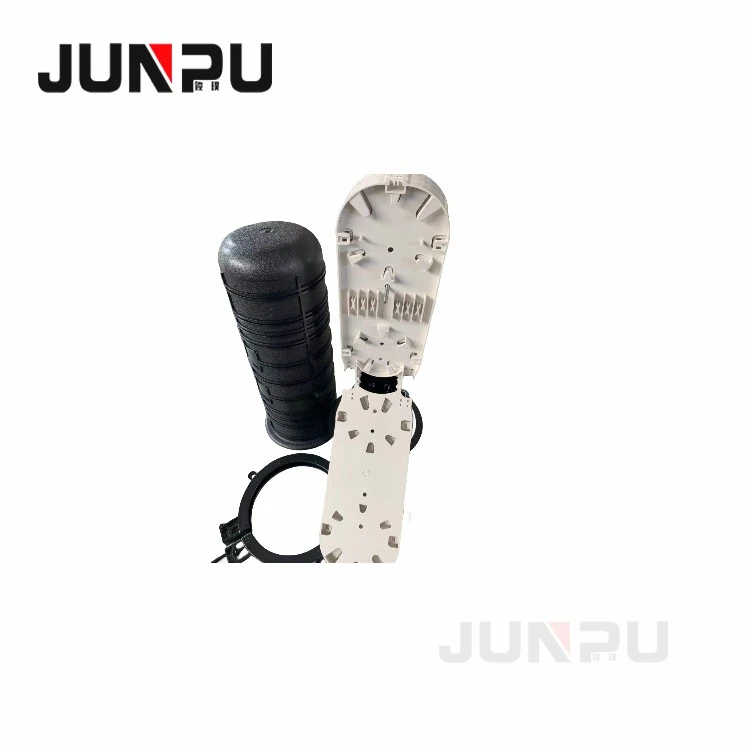

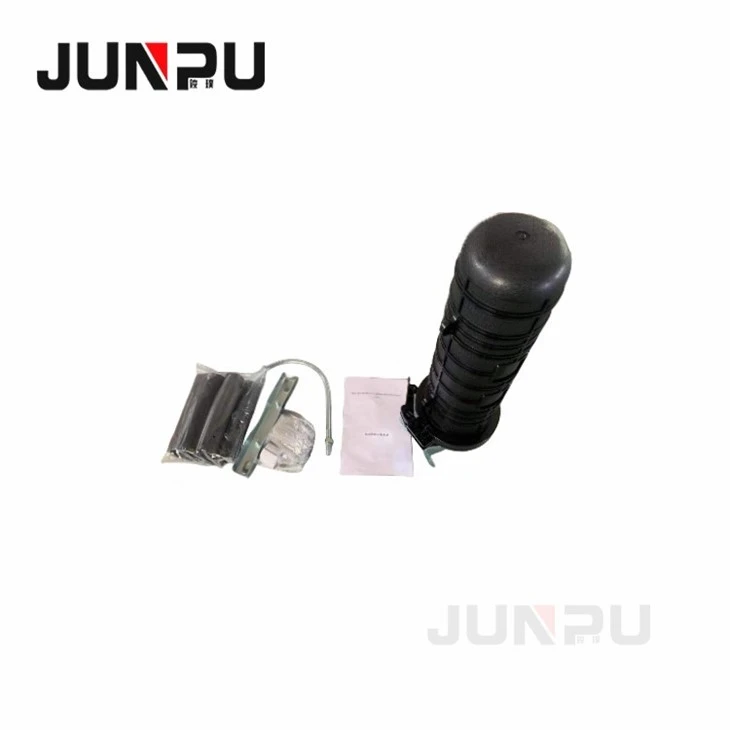

Fiber Optic Dome Splice Closure

Fiber Optic Dome Splice Closure

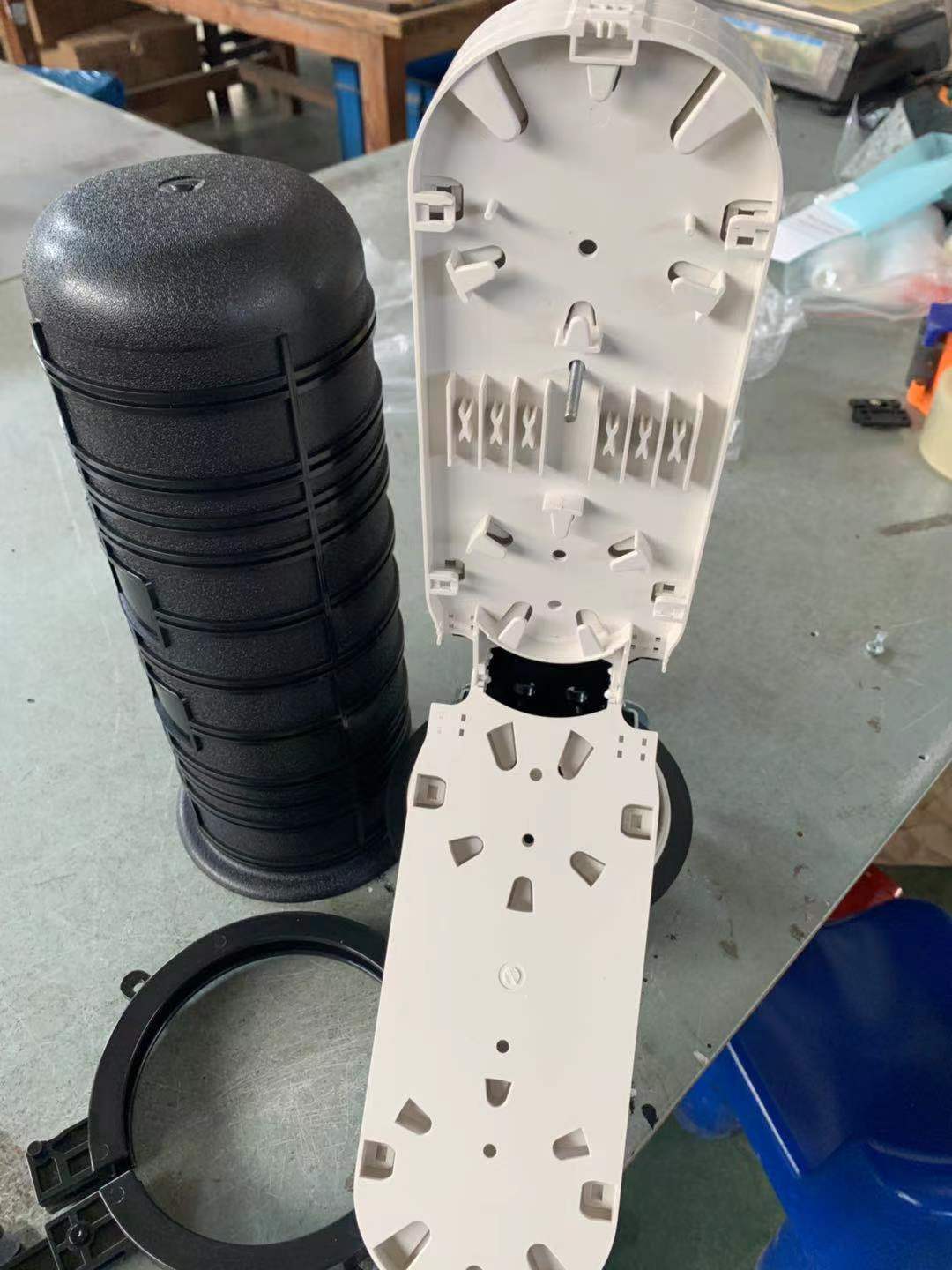

This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.

●Optical fiber radius of curvature: ≥40mm

●Splice tray additional loss: ≤0.1dB

●Temperature range: -40°C ~ +60°C

●Anti side pressure: ≥2000N/10cm

●Impact resistance: ≥20N.m

●Protection class: IP68​

We sincerely invite you to send us an inquiry for further details.
