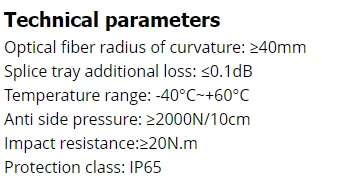

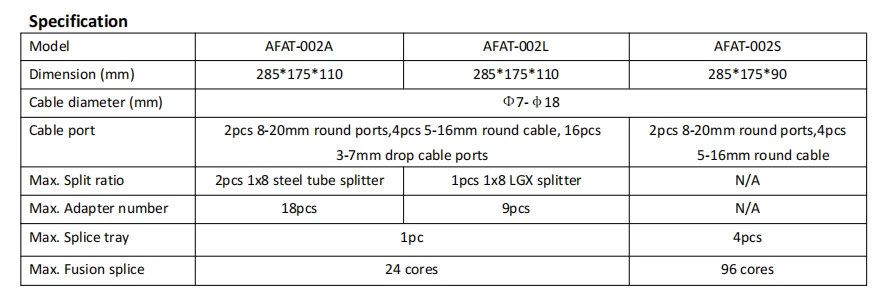

Technical Parameters
Aerial Fiber Access Terminal Closure
Description

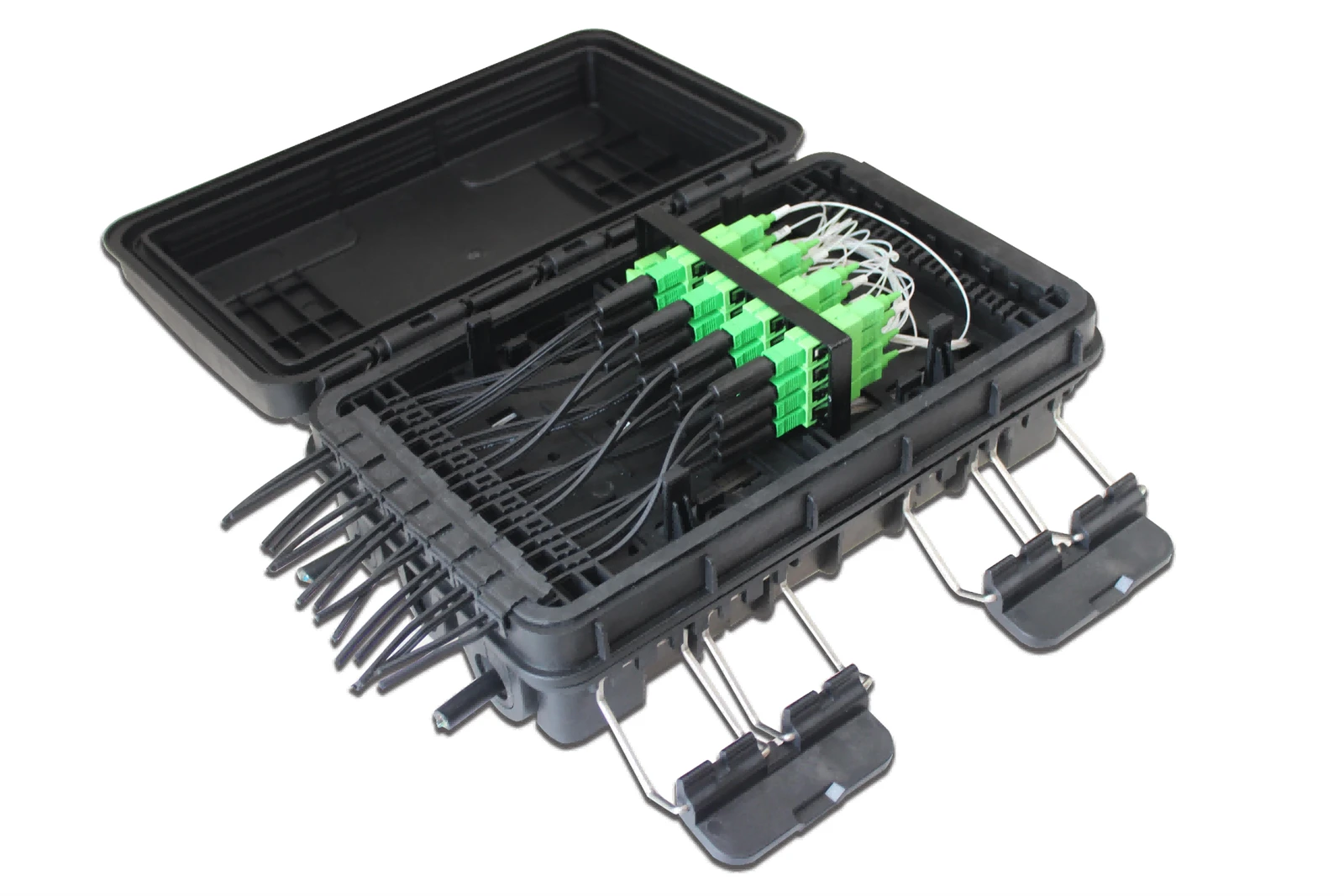

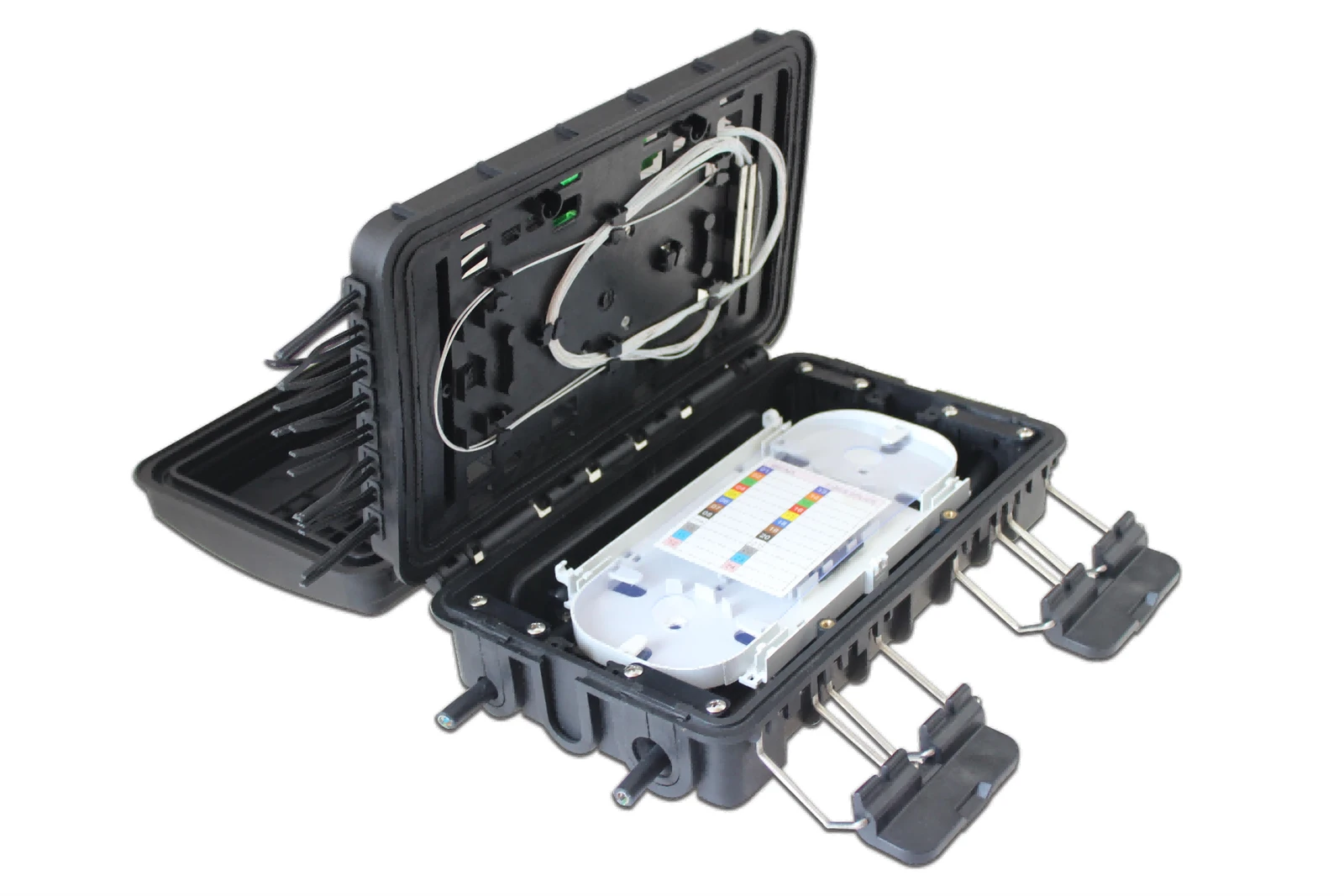

Aerial Fiber Access Terminal Closure
This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment.
Features
|
Installation procedure
1. Open the box, and install the adapters on the plastic holder.
2. Strip the outer jacket, inner jacket, and loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of 1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core. The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray.
3. Insert the drop cable connectors into the splitter module adapter (output side), then fix the cable into the fixing slots, then
through the rubber seal to lead out the cable.
4. Insert the cable pigtail into the fixing slot, and then pass through the outlet sealing rubber to lead out the cable.
5. Close the lid, snap the buckle to complete the installation, install the metal hooks then hook up on the aerial cable.
6. Open box, fix the splitter LGX module with nylon cable tie.
7. Strip the outer jacket, inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of
1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core.
The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical
fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray.
8. Insert the pigtail connector into the splitter module adapter (input side), then introduced into the splice tray through the holes
opened in the tray core. After being coiled and finished, the other end of the pigtail is led to the heat shrinkable tube installed in the
splicing groove, and heat the sleeve appropriately to make the fiber and the protection tube integrated into one, and the protected
optical fiber connector is snapped into the splicing groove; put on the PVC cover to prevent falling off.
9. Insert the drop cable connectors into the splitter module adapter (output side), then fix the cable into the fixing slots, then
through the rubber seal to lead out the cable.
10. Insert the cable pigtail into the fixing slot, and then pass through the outlet sealing rubber to lead out the cable.
11. Close the lid, snap the buckle to complete the installation, install the metal hooks then hook up on the aerial cable.
|
