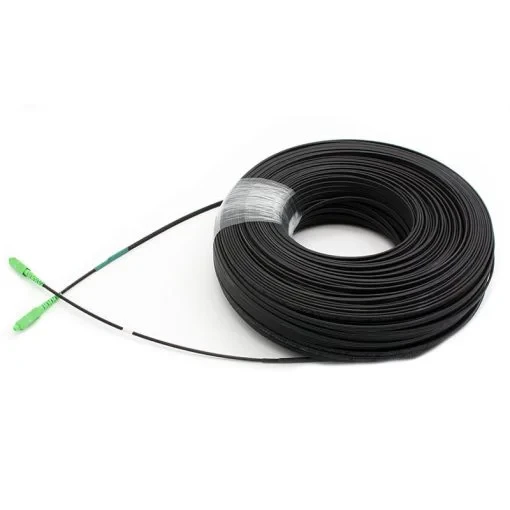

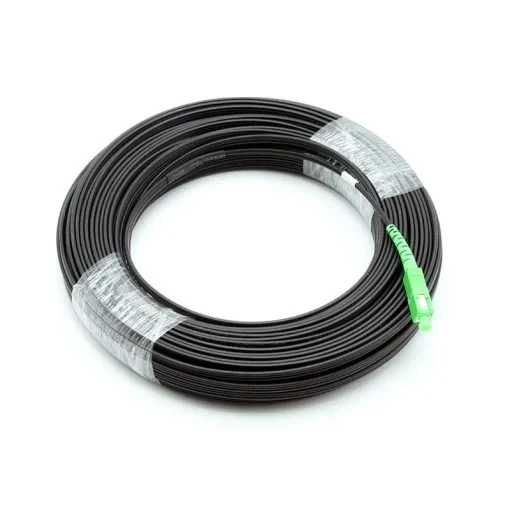

Fiber SC/APC Drop Cable Patch Cord
Fiber SC/APC Drop Cable Patch Cord it's a kind of patch cable but assembly with a Self-supporting Aerial FTTH Drop Cable. This is the last cable in the FTTH project. Used widely between Fact plate, terminal box, ONU, etc.
General Information
The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP/KFRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also, customers can specify their required connectors.
Insertion Loss: ≤0.3dB
Return Loss: ≥30dB
Fiber Type: Singlemode G657A1
Operating Temperature: -10 to +60°C
Cable specification
Optical performance.
| Cable Type | FTTH outdoor/Indoor Patch Cable | Fiber Count | Simplex |
| Connector | SC APC to SC APC | Jacket Material | Low Smoke Zero Halogen |
| Cable Diameter | 2.0×5.0mm | Fiber Type | Singlemode G657A1 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Strength Member Material | FRP | Tensile Strength (long/short term) | 300/600N |
| Crush Load (long/short term) | 1100/2200 (N/100mm) | Bending Radius (long/short term) | 10D/20D (mm) |
| Installation Temperature | -10 to +60°C | Operation Temperature | -10 to +60°C |
| Test Item | Test Condition | Value(dB) | ||
| UPC | APC | |||
| Optical Performance | Insertion Loss | 1310nm LED light source | ||
| Return Loss | 1310nm LED light source | >50 | >60 | |
| Environmental Performance (Max. Insertion Loss change) | High temperature | +85°C168 hours | ||
| Temperature Cycle | -40-+75°C, 21 Cycles 168 hours | |||
| Humidity Aging | +75°C, 95%R.H,168 hours | |||
| Humidity/Condensation Cycling | -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours | |||
| Mechanical Performance ( Max. Insertion Loss change) | Vibration | 10-55Hz, 1.5mm(p-p) | ||
| Flex | 0.9kg,-90o~+90o repeat for 100 cycles | |||
| Torsion | 1.35kg,90o~+90o ,10times | |||
| Withstand tensile | 90N,10min | |||
| Drop | H=1.5M,Total of 8 drops | |||
| Exchangeability | Randomly | |||
| Durability | 500 times | |||
