Fiber Optical Distribution Nap Box
|
Product Name: |
Fiber Optical Distribution Nap Box |
installation： |
Wall/Pole/Aerial |
| Material |
PC+ABS |
Size: |
250*190*72mm |
| No. of Cable Inlet/Outlet | 2IN-16OUT |
Protection |
IP65 |
|
Cable Port: |
2-Max-12mm cable |
Network: |
FTTH,FTTX,FTTB Network |
|
Place of Origin: |
China |
PLC Splitter: |

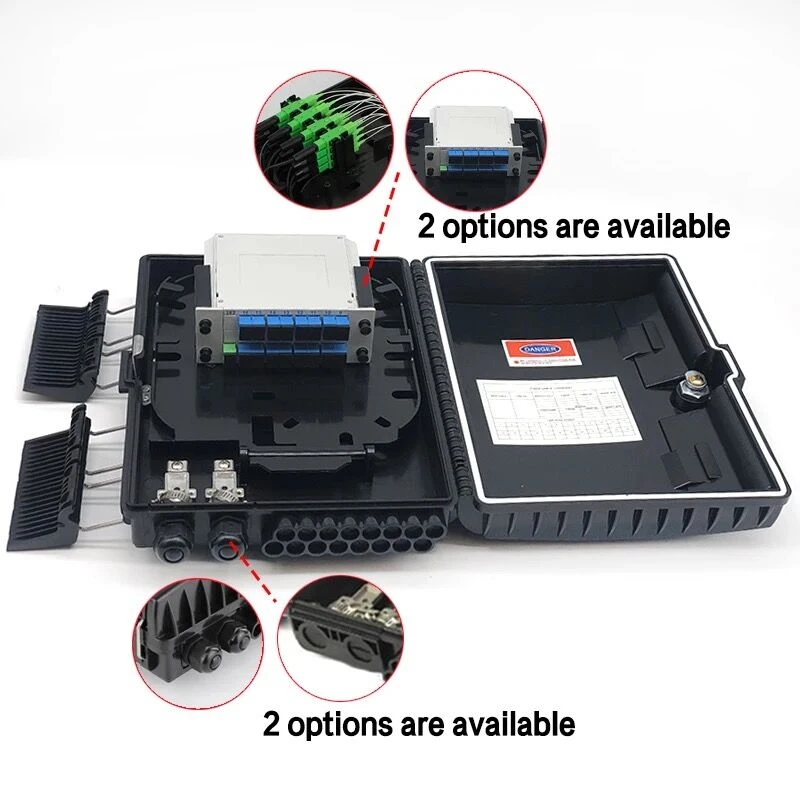

can be installed 2pcs 1x8 or 1pc 1x16 splitter can be installed 1pcs plug-in splitter |
|
Colorful Logo: |
Customizable |
Working Temperature |
-30deg.C~80deg.C |
Specification
JUNPU-FAT-16core fiber access termination box is able to hold upto 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx networksystem. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
A Fiber Optic Distribution Terminal Box (FOTB) is a device used in fiber optic networks that provides secure and convenient termination and distribution points for optical fibers. It enables fiber optic cables to be distributed to multiple locations or connected to other devices and equipment.
Applications:
for home ,hotel, office and buildings fiber network cabling system
Feature:
PC+ABS Alloy Water-Proof Material
The fiber distribution box can stand >500N impact strength
Super-Long Life Span of 20 Years
Quality Garantee, Extra-good After-Sales Service.
High Load Capacity Able to Bear Two Adults' Weight.Excellent Water-proof Performance
Installation
Shipping diagram
