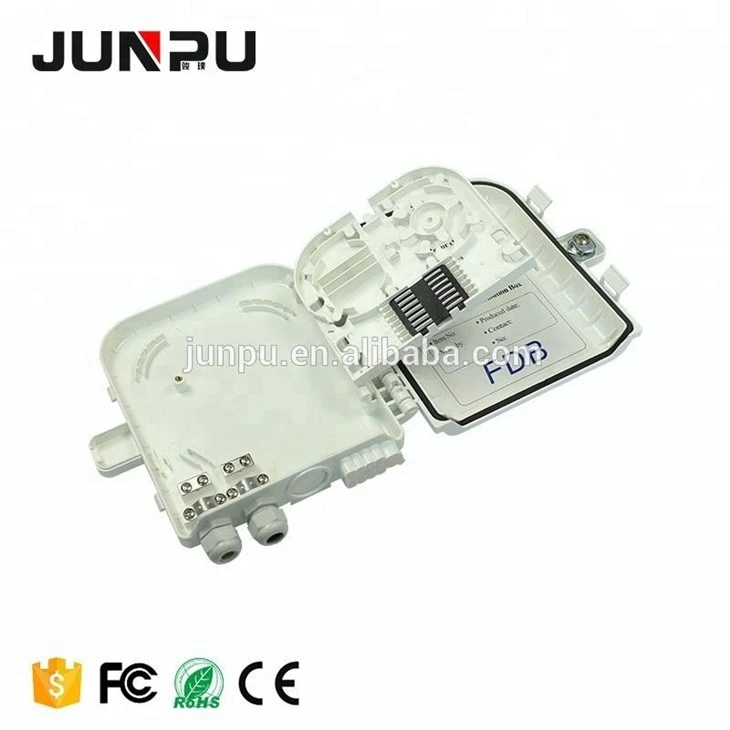

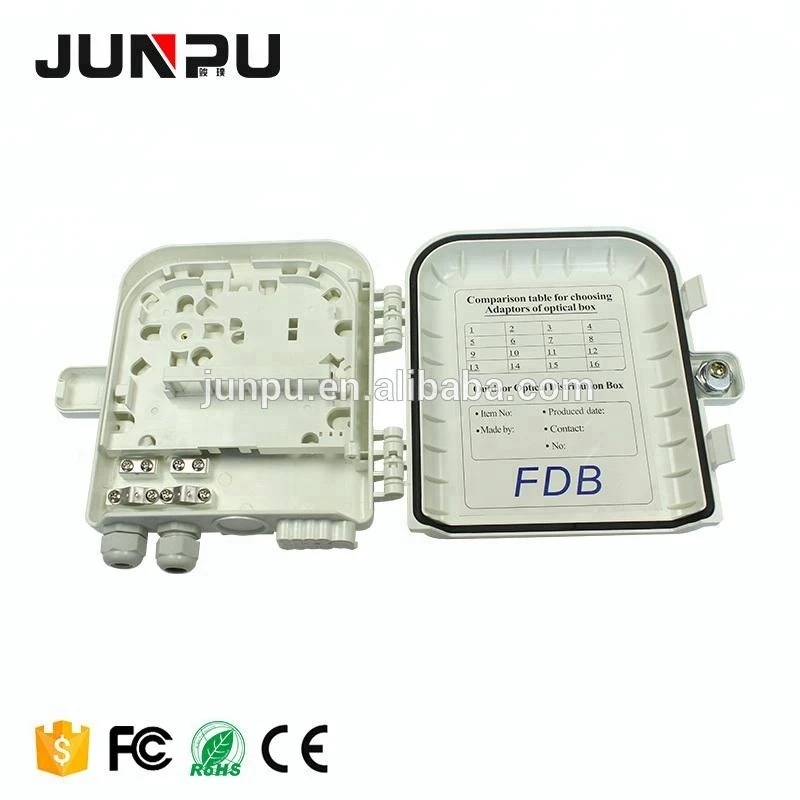

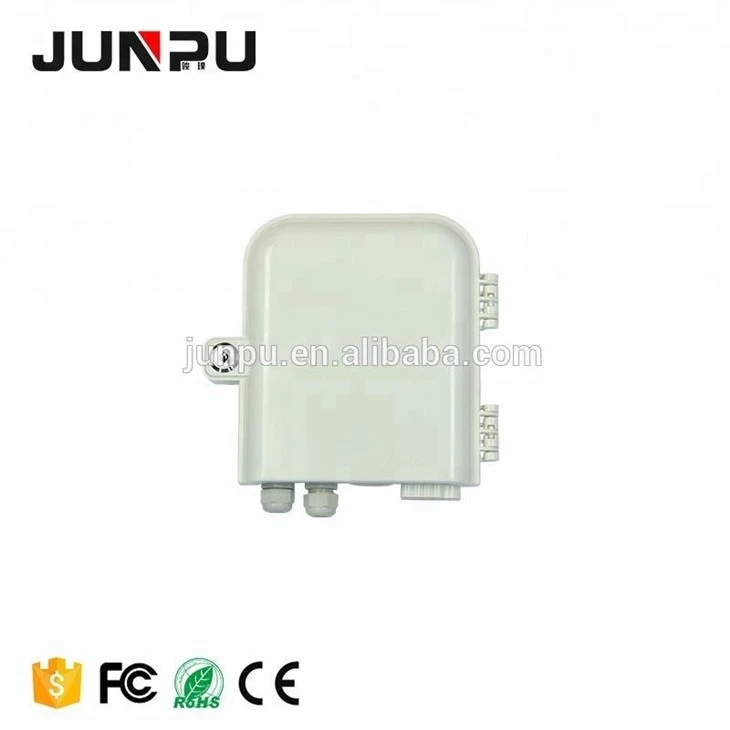

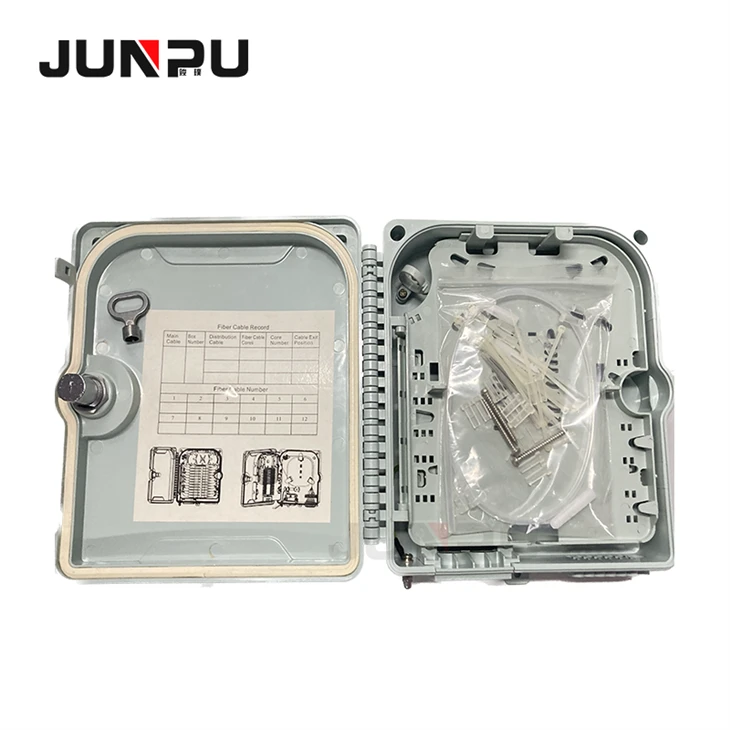

8 Core Fiber Distribution NAP CTO Box

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Used for the functions of splicing, fiber splitting, wiring transmission, etc. of optical transmission terminals. It can effectively terminate, protect and manage optical cables, and is an essential device for network transmission.

The splicing clamshell design is easy to use, the splicing and fine point separation are complete, and the optical fiber layout is more reasonable.
Made of PC+ABS material, it is moisture-proof, waterproof, dust-proof, and anti-aging, with a protection level of IP65.
The framework is straightforward and simple to use.

It is appropriate for optical communication devices and the distribution frame of optical cables. To accomplish the optical wiring function, the optical jumper leads the optical signal out through the distribution box's adapter. In addition to being utilized for optical fiber terminal points in the optical fiber access network, it serves as a protective link between optical cables and wiring pigtails. Ideal for a range of applications: FTTH fiber access, interior, wooden, wall, and hanging rod


- Water-proof design with IP-65 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- Efficient cable management.
- 16 ports cable entrance for drop cable.
