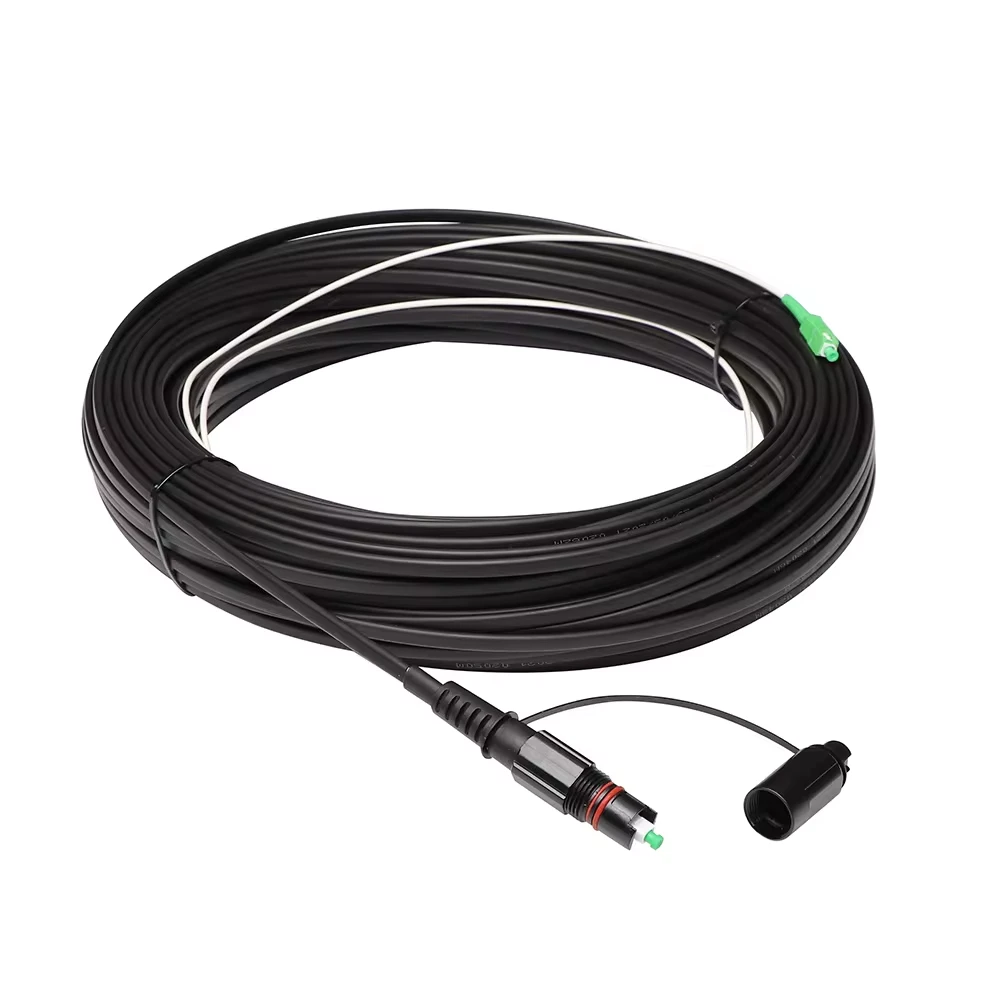

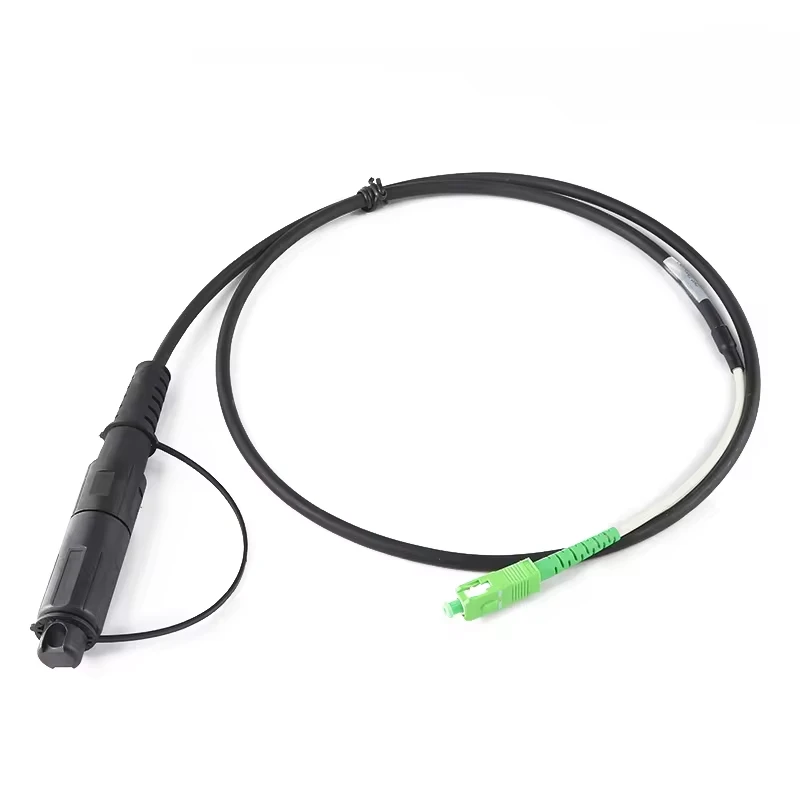

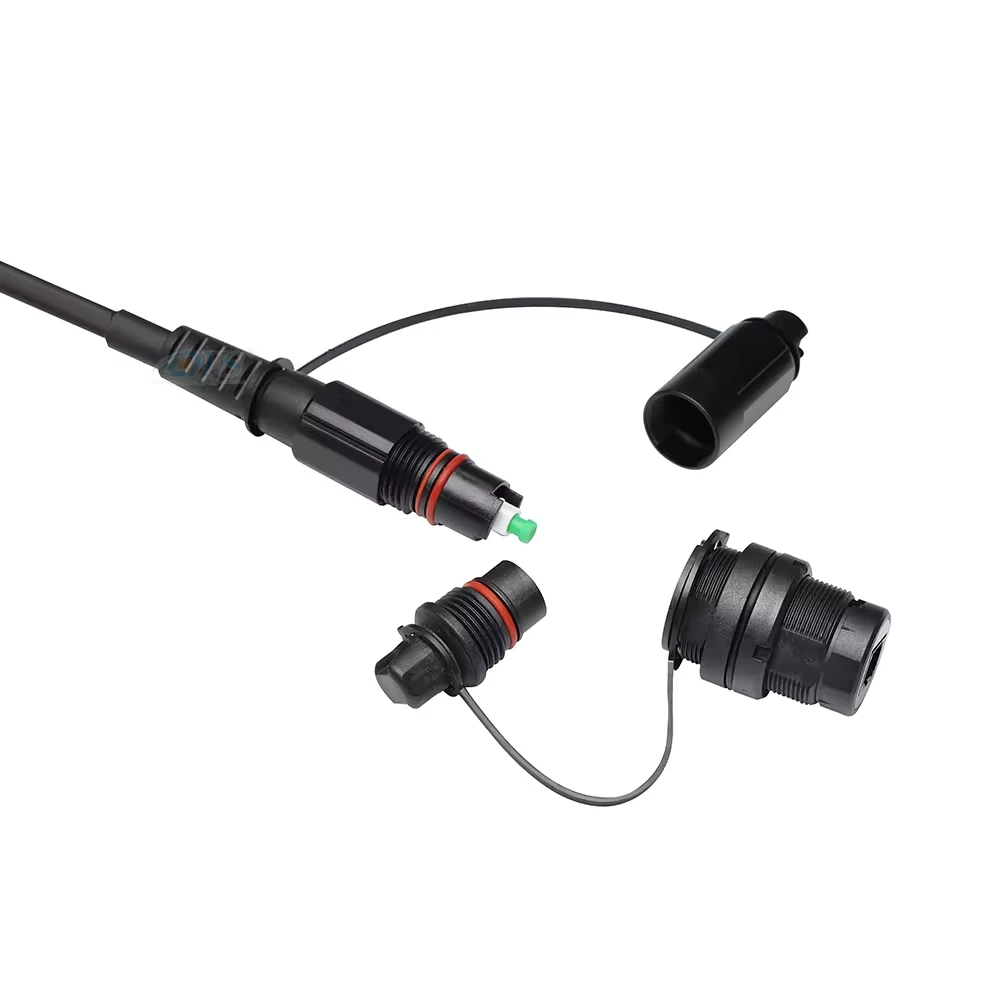

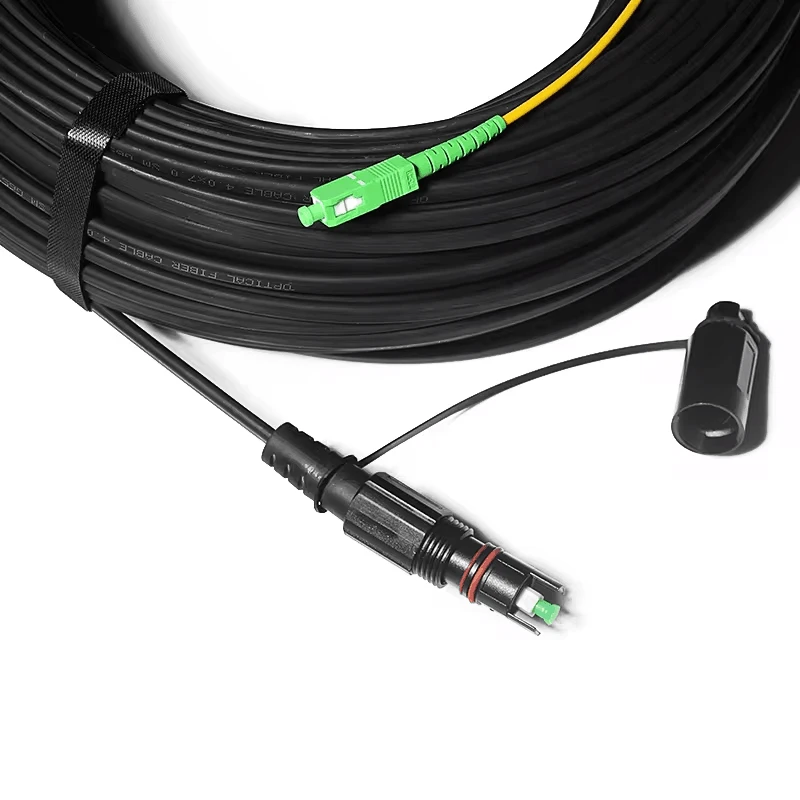

Pre-connected H Optitap Connector
Description
OptiTap® connectors are known for providing a reliable and durable connection for fiber optic networks. These connectors ensure minimal signal loss and maintain signal integrity, allowing for seamless data transmission.
Feature
- Single fiber, SC-based connector
- Bird proof and rodent resistant
- IP68 water and dust protection
- Low profile in-line receptacle available
- No installation tools required 100 minimum mating cycles In-line connection available
- Operating temperature: -40° to 85°C
- Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
- 33 lb. axial cable retention (150N)
Application
- FTTH
- Outdoor Areas
- Harsh Environment
- Provides bend protection for installation and long term use.
Benefits
- Allows flexibility to use factory terminated assemblies
- Provides superior weather resistance for FTTH and other outdoor applications
- Ensures functionality in harsh weather environments
- Can be used with industry standard cable designs
- Easily installs without special tooling
- Threaded style coupling
- Provides bend protection for installation and long term use
Detailed Images
