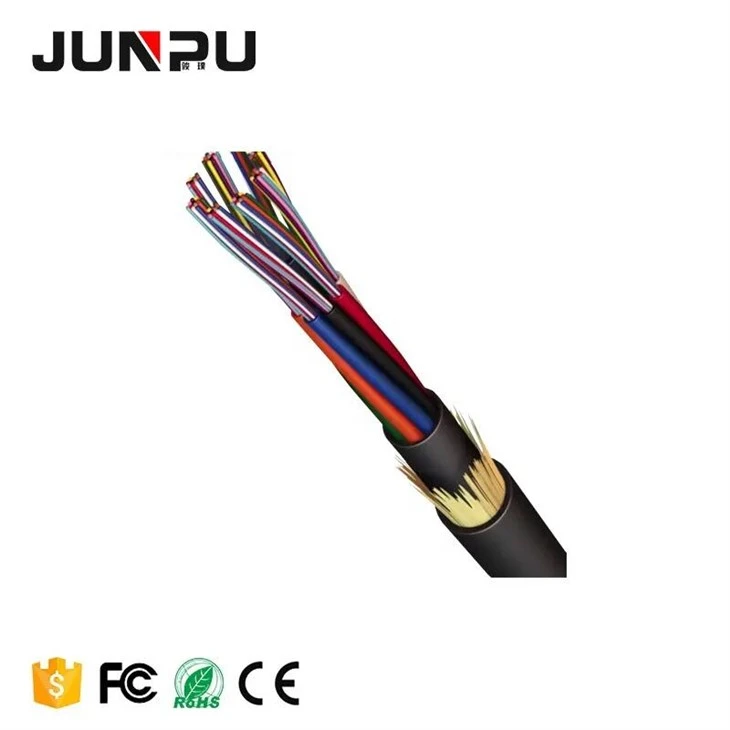

Single/Multi Mode Adss Cable

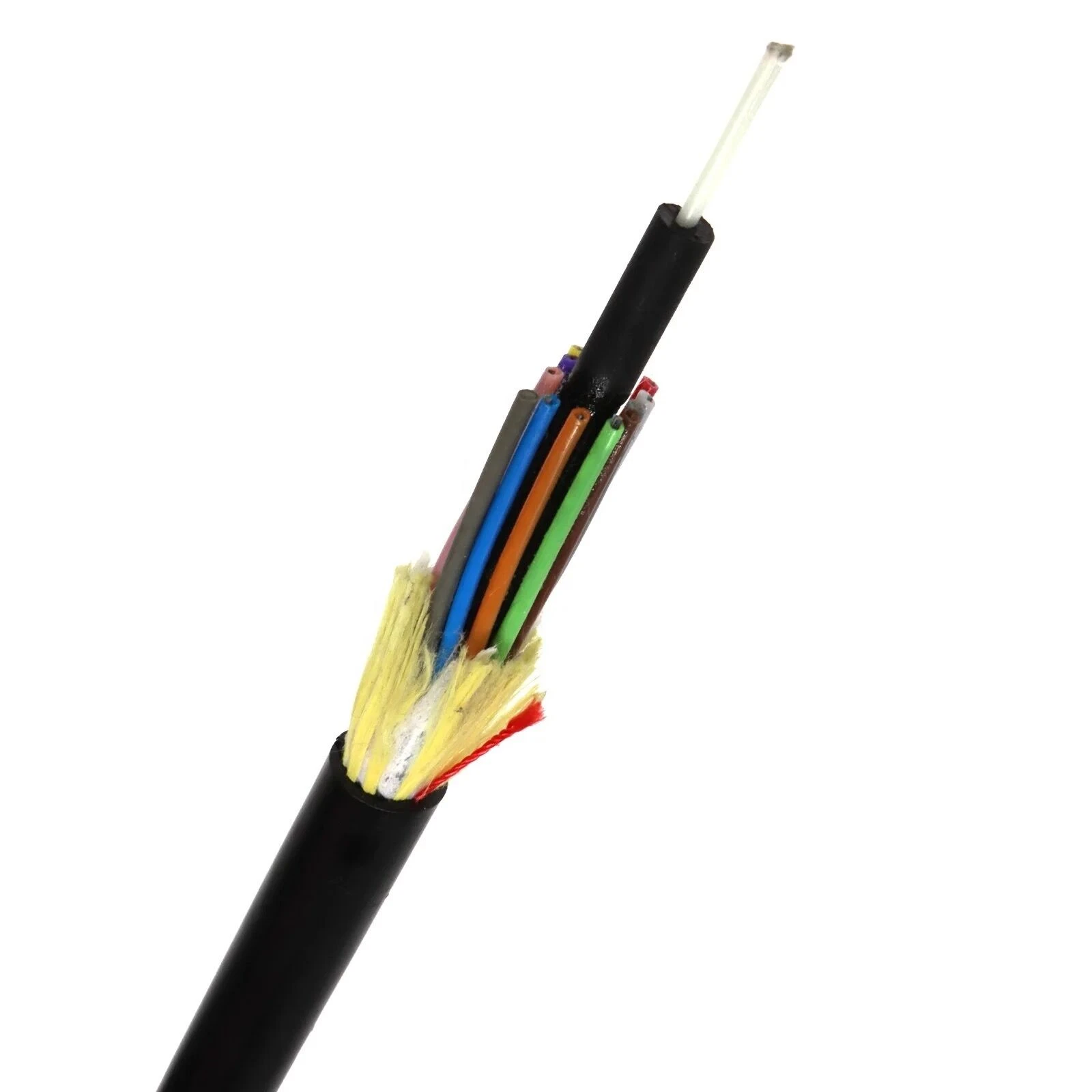

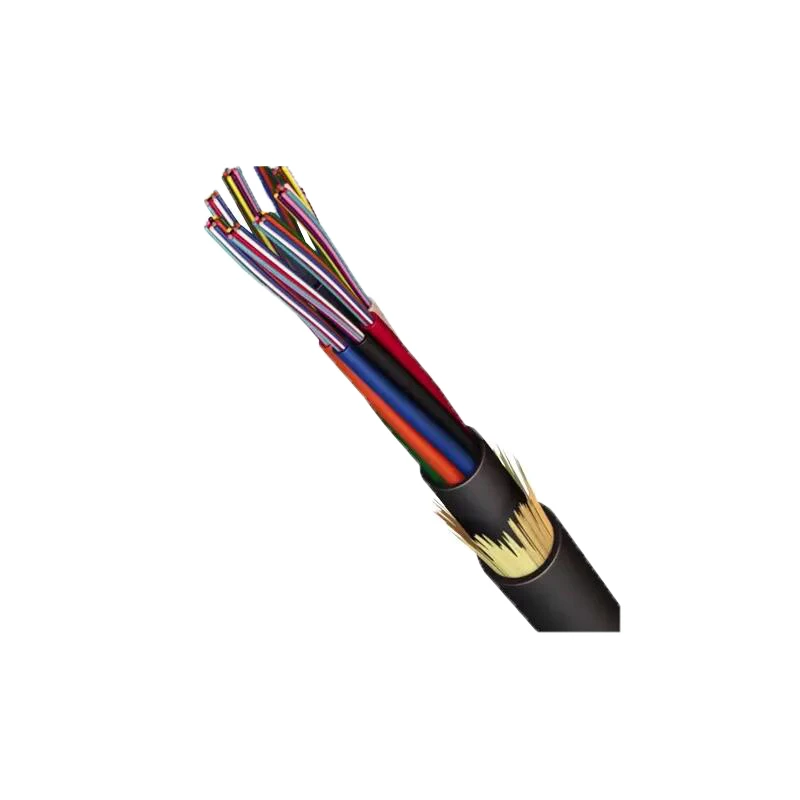

ADSS cable is loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Send Inquiry

Description

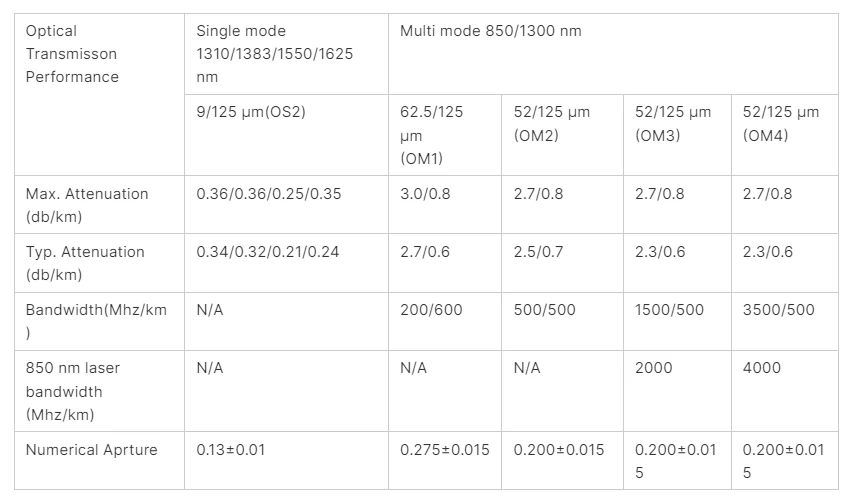

Technical Parameters

Single/Multi Mode Adss Cable

Products Description

ADSS cable is custom engineered for each application based on its full weather load, ensuring safe, reliable lifetime performance. Flexible buffer tubes enable ease of mid-entry, preparation and routing in splice closures. These cables uniquely combine flexible buffer tubes and swellable water-blocking to make ezSPAN the easiest ADSS cables to prep and access.

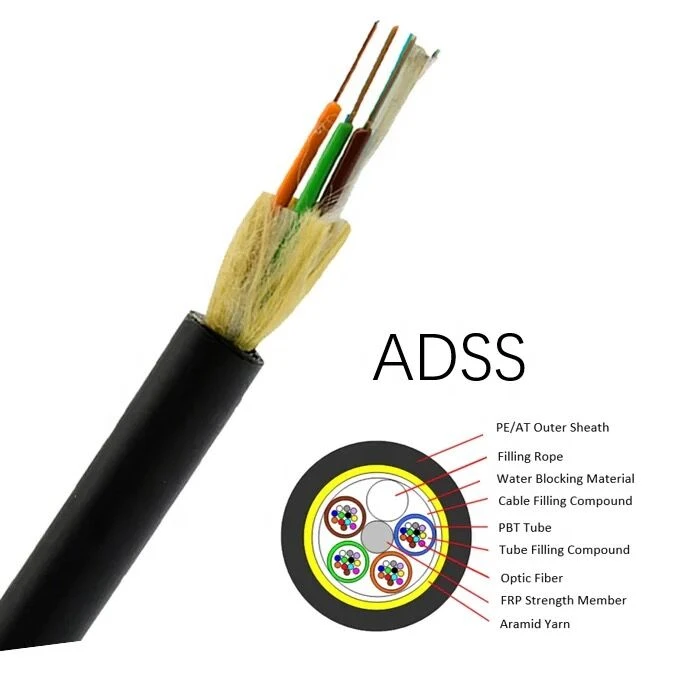

Structure

ADSS cable comprises several key components:
Optical Fiber Core: Contains single-mode or multi-mode optical fibers responsible for transmitting signals.
Buffer Layer: Provides mechanical protection to the optical fibers and may include elements like water-blocking tape.
Strengthening Layer: Utilizes high-strength non-metallic materials like glass fiber or aramid fiber to handle tensile stresses.
Outer Jacket: Fabricated from weather-resistant materials such as polyethylene or polyvinyl chloride, this layer offers protection against water ingress and UV damage.

Features

Easy Installation: Can be directly hung on power lines, eliminating the need for additional support equipment.
Corrosion Resistance: Being entirely non-metallic, it is immune to corrosion and electromagnetic interference.
High Reliability: The strengthening layer's excellent tensile properties ensure the cable can withstand significant external forces.
Aesthetic and Environmental Advantage: The cable's simple and sleek design does not disrupt the visual aesthetics of the environment.
