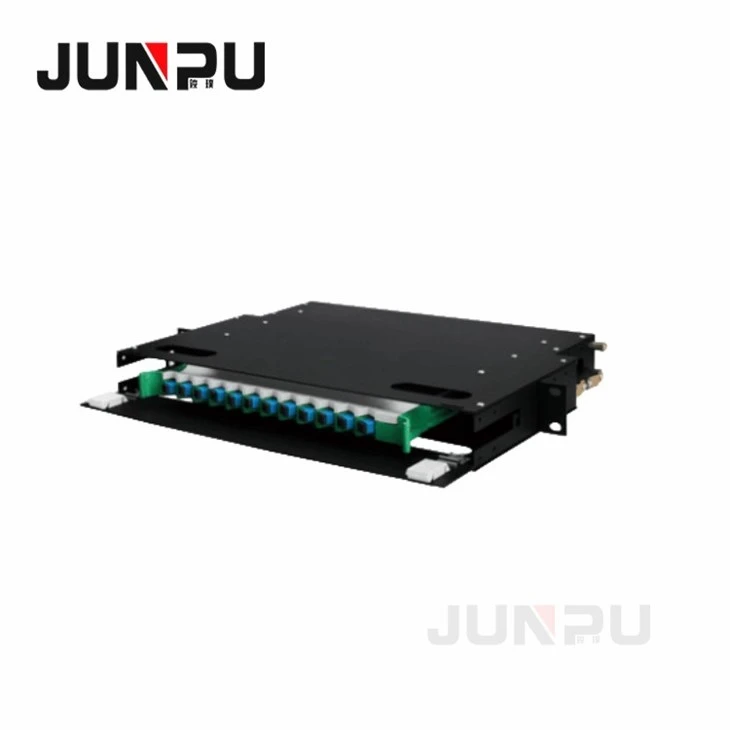

12 core ODF Optical Distribution Frame
Our fixed type Patch panel can be applied in the branch connection of optical fiber termination;19" standard structure, rack mounted; Available for the adapters installation of FC,SC,ST,LC .The patch panel body is made of cold rolled steel sheet.
|
Fiber Capacity of panel |
12-144 core |
|
Panel Connector |
SC LC ST FC |
|
Type |
Sliding Fixed |
|
Dimension |
19'' 1U/2U/3U/4U... |
|
Material |
Cold Rolled Steel or Aluminum |
|
Storage Temperature |
-45~+65℃ |
|
Thickness |
1.0 1.2 mm |
|
1.0 1.2 mm |
Cable ties, mounting ear screws, and spiral wrap tube |
Applications
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WA
Features
●Standard size, light weight and reasonable structure
●Splice tray inside changeable
●19-inch standard size, light in weight and robust structure
●Suitable for ribbon and single fiber
●Various panel plate to fit different adapter interface
●Front mark on the plate is easy for identification and operation
●24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
●Easy for management and operatio
