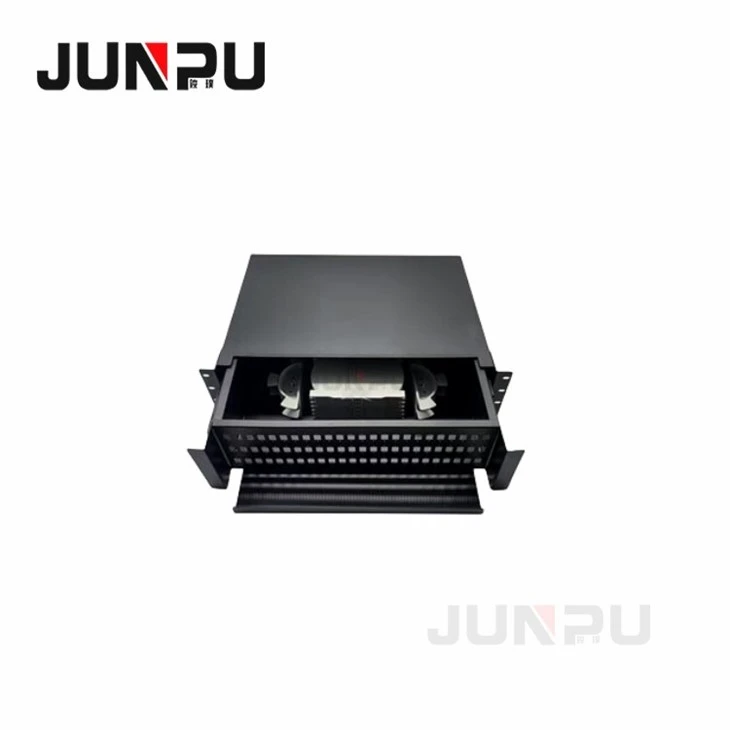

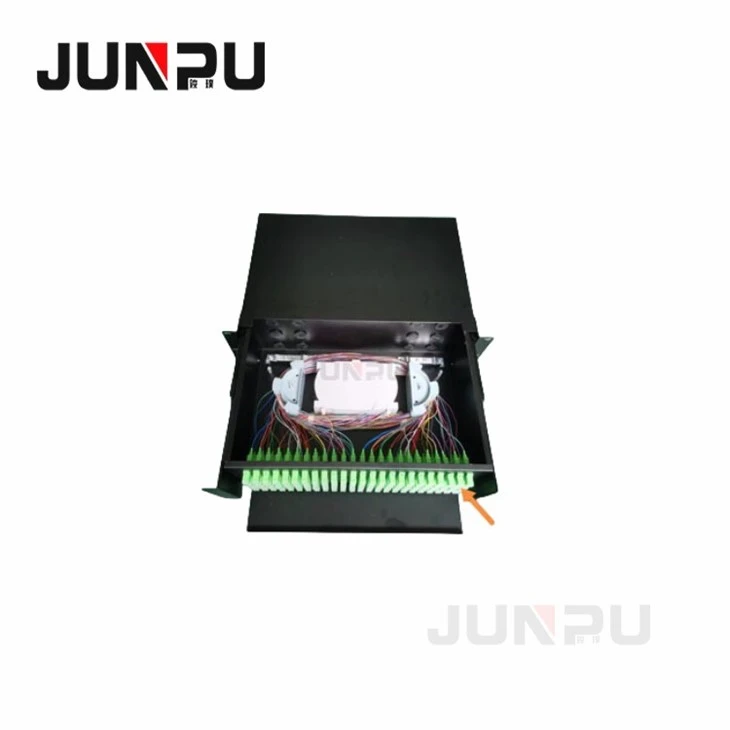

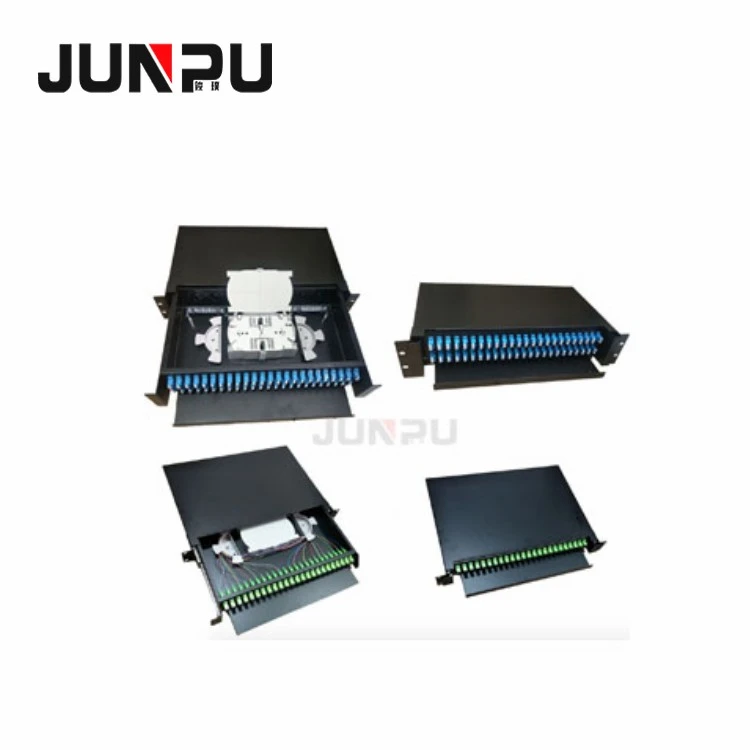

ODF Box for Fiber Optic
The Fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
It can be designed for different types of optical connectors, such as SC, LC, or MPO connectors, depending on the specific network requirements. They can also be designed for different fiber optic cable types, such as single-mode or multi-mode fibers.
|
Fiber Capacity of panel |
12-144 core(12 24 48 port usually) |
|
Panel Connector |
SC LC ST FC |
|
Type |
Sliding Fixed |
|
Dimension |
19'' 1U/2U/3U/4U... |
|
Material |
Cold Rolled Steel or Aluminum |
|
Storage Temperature |
-45~+65℃ |
|
Thickness |
1.0 1.2 mm |
|
1.0 1.2 mm |
Cable ties, mounting ear screws, and spiral wrap tube |
Applications
• Local area networks
• Wide area networks
• Telecommunication network
• Central office optical cable system
• Premise fiber network
Features
• 19" standard mounting design, nice appearance
• A pothook convenient to install and dismantle
• Splice tray could be piled one upon another, flexible to turn
• Unique structure, reasonable layout, adequate room for operation
• Adjustable clamp seal ring and reinforce configuration
• With excellent seal performance, preventing water from entering effectively
• Rack mount in optical distribution frame ODF

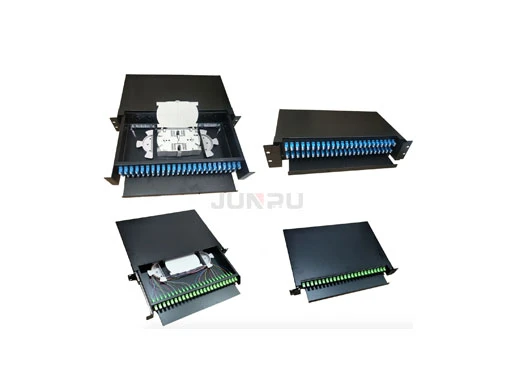

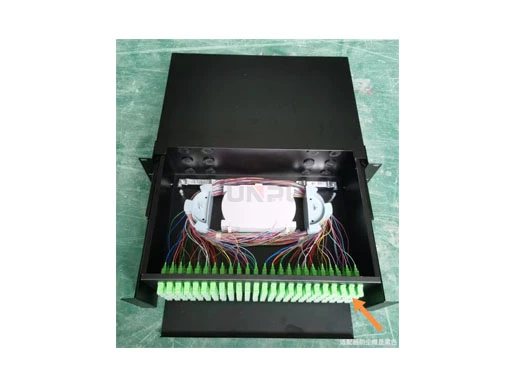

Details
Shipping and Packing
Company Information
We sincerely invite you to send us an inquiry for further details.
