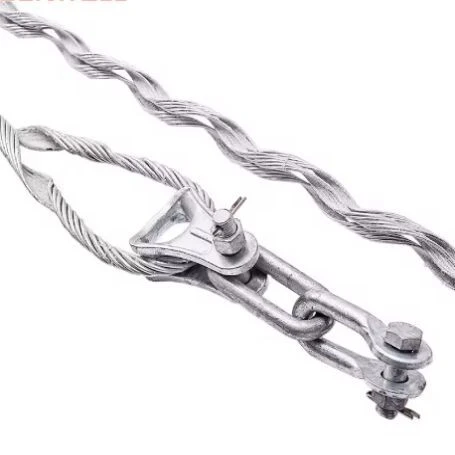

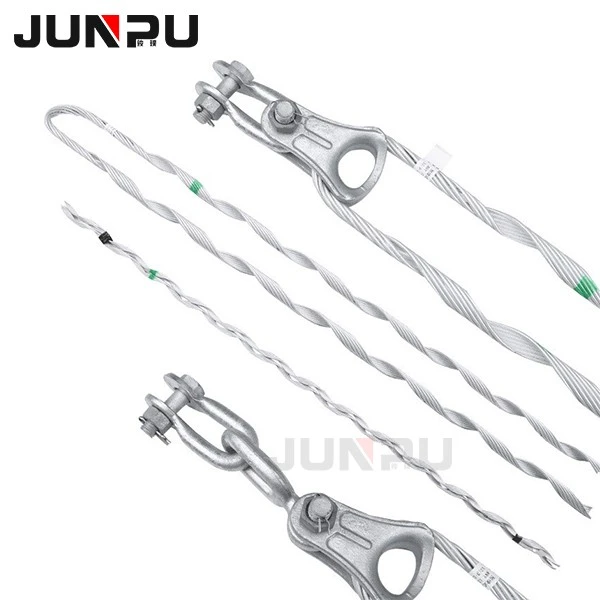

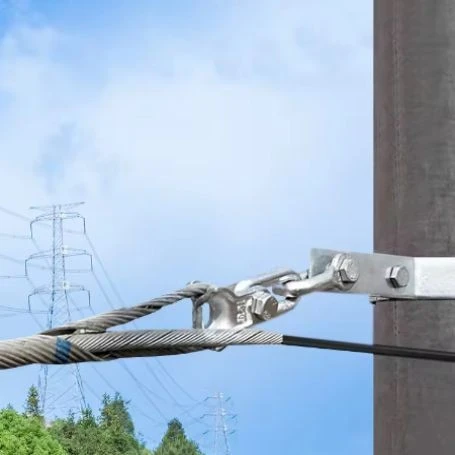

Preformed Guy Grip Dead End Clamp For ADSS
Products Description
|
Specification of short-span dead-end for ADSS cable |
|||
|
Model |
Avaliable Dia.of cable(mm) |
length of dead-end component(mm) |
Fitting |
|
ANL015/0950 |
9.0-9.5 |
840 |
U-7 |
|
ANL015/1050 |
9.6-10.5 |
840 |
U-7 |
|
ANL015/1160 |
10.6-11.6 |
910 |
U-7 |
|
ANL015/1280 |
11.7-12.8 |
950 |
U-7 |
|
ANL015/1410 |
12.9-14.1 |
1070 |
U-7 |
|
ANL015/1560 |
14.2-15.6 |
1150 |
U-7 |
|
ANL015/1700 |
15.7-17.0 |
1150 |
U-7 |
|
Specification of medium/long span dead-end for ADSS cable |
||||
|
Model |
Available Dia. of cable(mm) |
Length of Outer Rods(mm) |
Length of Structural Reinforcing Rods(mm) |
Reference Span(m) |
|
ANZ020/1010 |
9.5-10.1 |
790 |
1000 |
200-300 |
|
ANZ020/1070 |
10.2-10.7 |
790 |
1000 |
200-300 |
|
ANZ020/1140 |
10.8-11.4 |
790 |
1000 |
200-300 |
|
ANZ020/1220 |
11.5-12.2 |
790 |
1000 |
200-300 |
|
ANZ020/1290 |
12.3-12.9 |
790 |
1000 |
200-300 |
|
ANZ020/1370 |
13.0-13.7 |
790 |
1000 |
200-300 |
|
ANZ020/1460 |
13.8-14.6 |
790 |
1000 |
200-300 |
|
ANZ020/1550 |
14.7-15.5 |
790 |
1000 |
200-300 |
|
ANZ030/0940 |
8.6-9.4 |
1090 |
1390 |
300-400 |
|
ANZ030/1010 |
9.5-10.1 |
1090 |
1390 |
300-400 |
