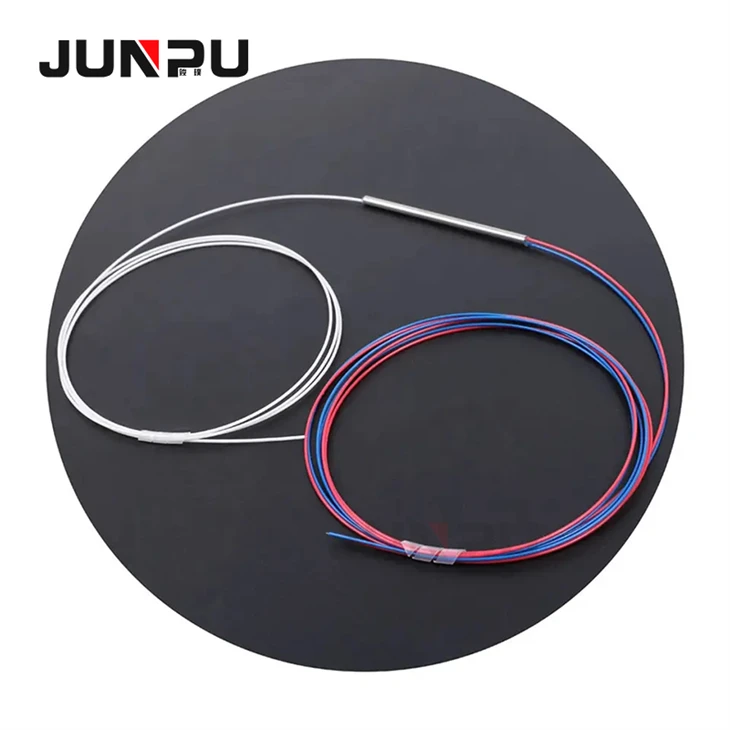

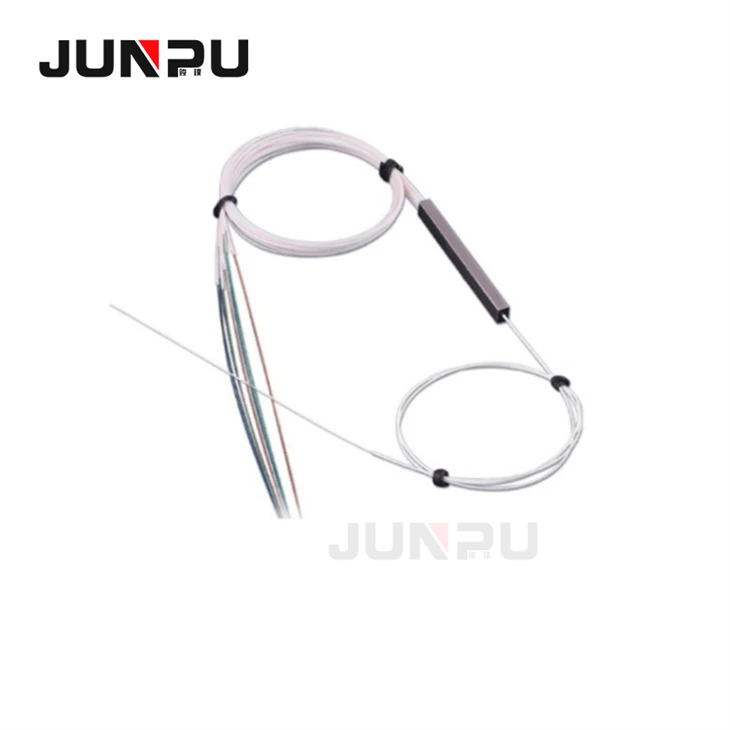

Mini Steel Tube PLC Splitter Without Connector
Description
Fiber PLC splitters is a kind of ODN product suitable for Fiber To The X (FTTX, X=Home, Office, Buliding etc...) networks, adhering to ITU.T PON standards like GPON and XGS-PON etc, which are packaged in a compact housing with options for 250 um leads and 900 um leads. These splitters offer low insertion loss and low polarization sensitivity. Available in 2, 4, 8, 16, and 32-channel configurations, they have bend-insensitive cables and minimal deformation during use, ensuring optical performance specifications and high reliability.
With bare fibers exposed at all ends, these PLC splitters are best suited for fixed installations, such as cable connector boxes, pigtail cassette, test instrument and WDM system, maximizing space savings.
Mini Steel Tube PLC Splitter Without Connector plays an increasingly important role in many of today's optical network topologies. They provide features that help users maximize the functionality of optical network circuits from FTTH systems to traditional optical networks. Typically they are placed in a central office or at one of the distribution points (outdoor or indoor)
A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams. These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture A fiber-optic splitter, also known as a beam splitter, is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmission system. The optical network system uses an optical signal coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link. It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
Performance Index
Features
• 1×4 PLC Spitter, uniform distribution of optical signal
• With the splitter type of mini module, SC/APC connector
• For EPON, GPON, FTTH/FTTX network
Application
•Fiber Optic CATV;
• Fiber to home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)
