Fiber optic PLC Splitter
JUNPU Cassette Splitter is a key component in FTTH and is responsible to distribute the signal from CO to numbers of premises. This highly stable splitter performs superbly across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss in configuration of 1X4, 1X8, 1X16, 1X32 and 1x64 port.
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
|
Return Loss (dB) (P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent loss |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
Applications
* Low Insertion Loss.
* Fiber to home(FTTH)
* Passive Optical Networks(PON)
* Local Areal Networks(LAN)
* Fiber communication systems
Features
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Mechanical
Operating environment: -40ºC to +85ºC
Fiber input: 0.9mm or 250μm fiber for choice
Details

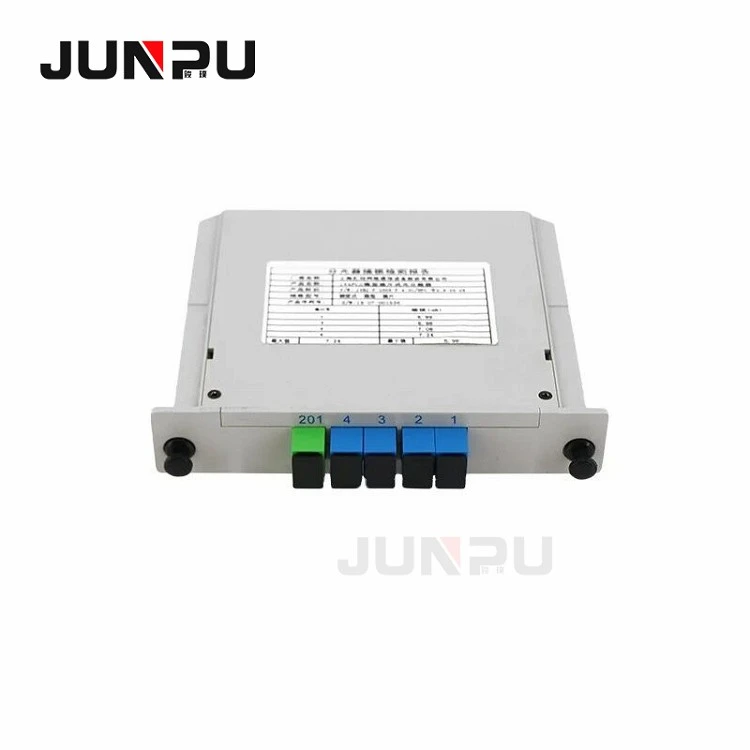

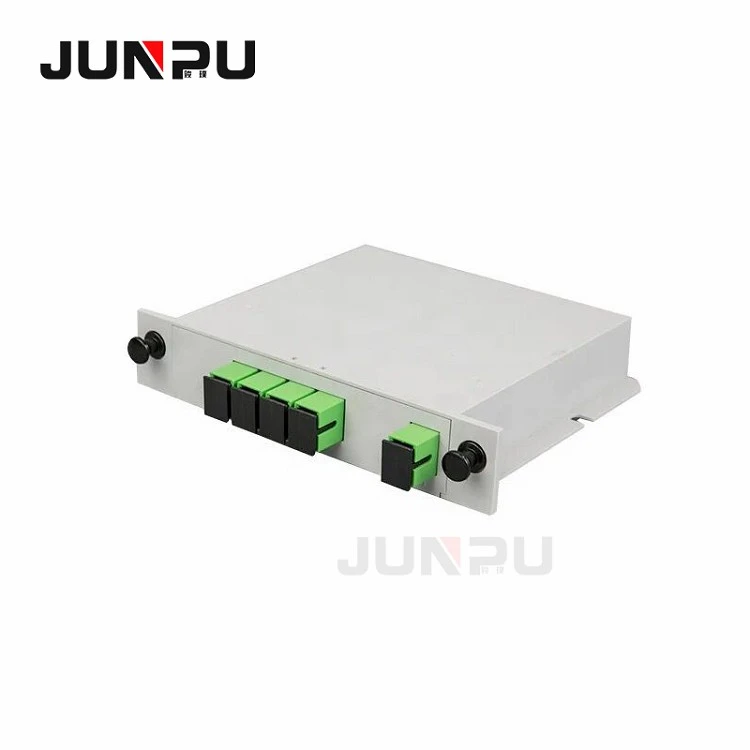

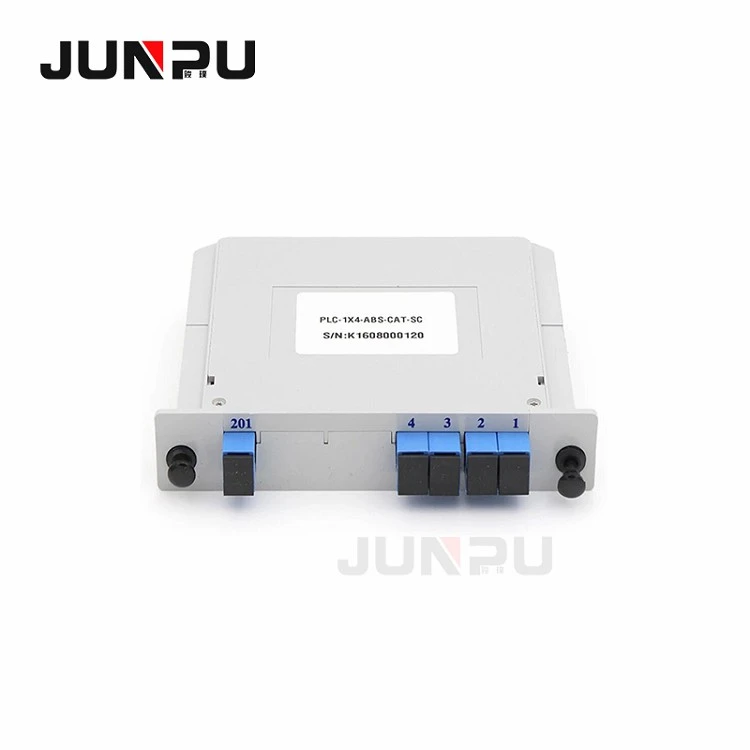

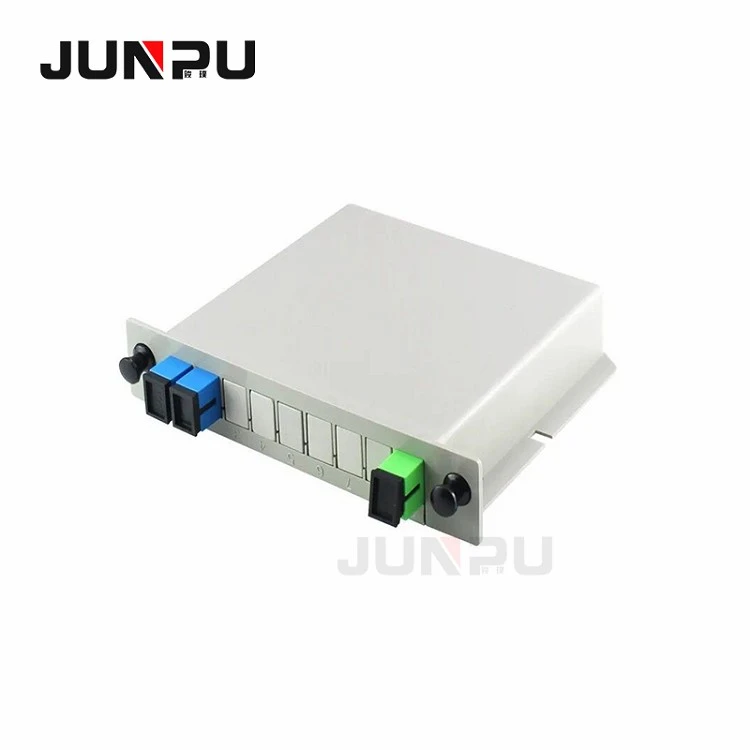

JUNPU Fiber Optic Splitter
JUNPU Fiber Optic Products
We sincerely invite you to send us an inquiry for further details.
