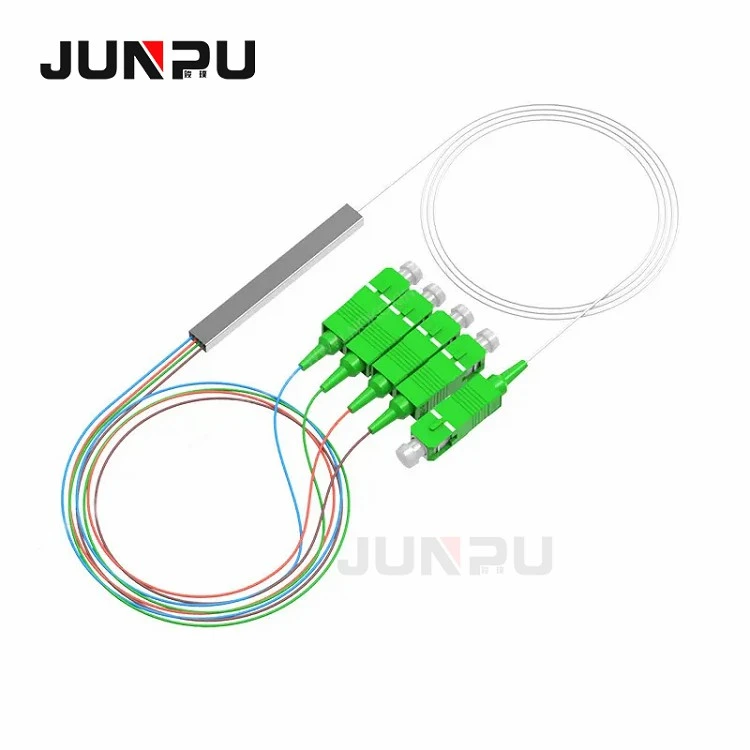

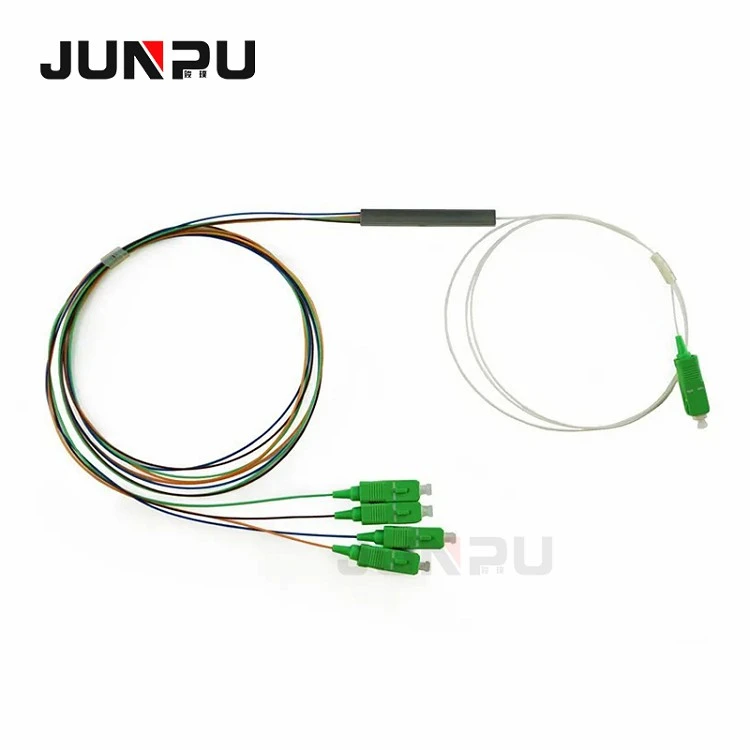

FTTH PLC Splitter
The PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
|
Parameters |
unit |
1:02 |
1:04 |
1:08 |
1:16 |
1:32 |
0.086111111 |
|
Wave lenght (nm) |
1260~1650 |
||||||
|
Insertion loss without connectors (dB) |
Max |
4,0 |
7,4 |
10,7 |
13,7 |
16,9 |
21,0 |
|
Insertion loss with connectors (dB) |
Max |
4,5 |
7,7 |
11,2 |
14,2 |
17,5 |
21,5 |
|
Uniformity without connectors (dB) (Loss uniformity) |
Max |
0,6 |
0,6 |
0,8 |
1,2 |
1,7 |
2,5 |
|
Uniformity with connectors (dB) (Loss uniformity) |
Max |
0,6 |
0,8 |
1,0 |
1,4 |
1,7 |
2,5 |
|
PDL (dB) (Polarization Dependent Loss ) |
Max |
0,2 |
0,3 |
0,3 |
0,3 |
0,3 |
0,4 |
|
Return Loss (dB) |
Min |
55 |
|||||
|
Directivity (dB) |
Min |
60 |
|||||
|
Working temperature (ºC) and storage temperature (ºC) |
Min |
od -40 do +75 |
|||||
|
Type of fiber according to |
ITU-T G652.D i ITU-T G657.A |
||||||
|
Fibre lenght (m ) |
≥1.0 |
||||||
|
If used connectors of type |
SC/APC, SC UPC or without connector |
||||||
Applications
Fiber to home system
Passive optical network (PON)
Cable TV network
Other optical signal separation systems
Features
●Singlemode G.657A1 fiber, 0.9mm
input/output, 1260-1650nm, mainly used in fiber splice closure, optical distribution box and no need to splice in PON system..
●Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management.
Details

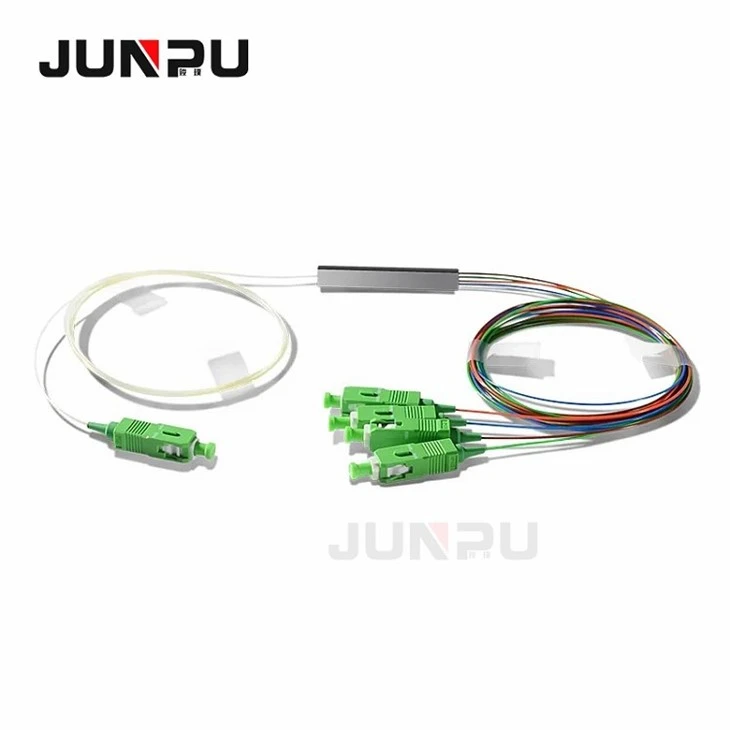

JUNPU Fiber Optic Splitter
JUNPU Fiber Optic Products

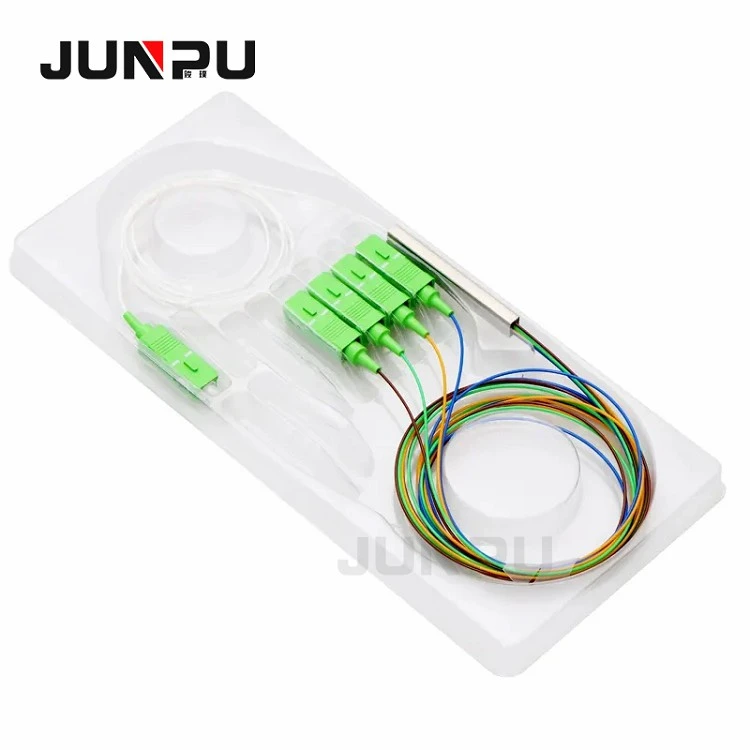

Packing and Shipping
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
