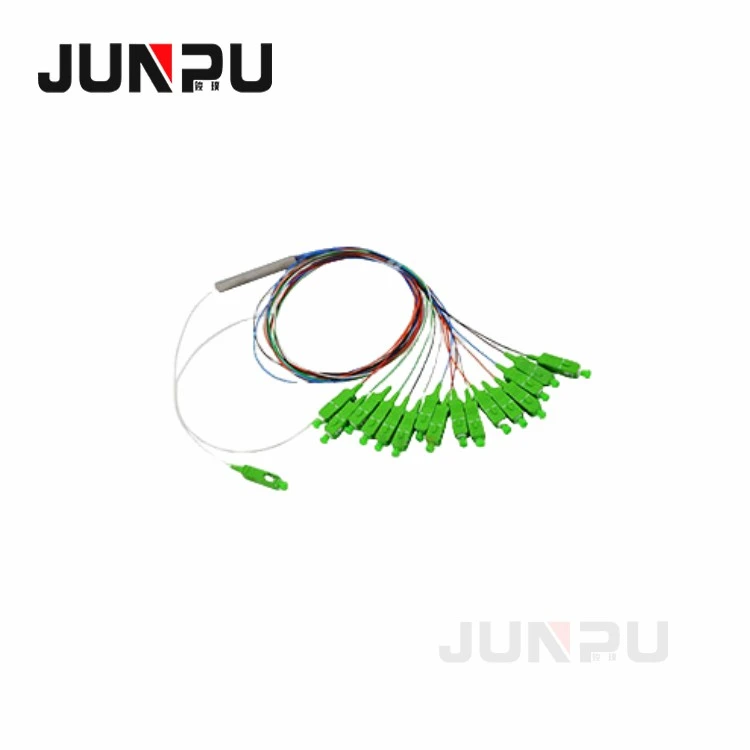

1x16 Fiber Optic Splitter
JUNPU PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting.
|
Parameters |
unit |
1:02 |
1:04 |
1:08 |
1:16 |
1:32 |
0.086111111 |
|
Wave lenght (nm) |
1260~1650 |
||||||
|
Insertion loss without connectors (dB) |
Max |
4,0 |
7,4 |
10,7 |
13,7 |
16,9 |
21,0 |
|
Insertion loss with connectors (dB) |
Max |
4,5 |
7,7 |
11,2 |
14,2 |
17,5 |
21,5 |
|
Uniformity without connectors (dB) (Loss uniformity) |
Max |
0,6 |
0,6 |
0,8 |
1,2 |
1,7 |
2,5 |
|
Uniformity with connectors (dB) (Loss uniformity) |
Max |
0,6 |
0,8 |
1,0 |
1,4 |
1,7 |
2,5 |
|
PDL (dB) (Polarization Dependent Loss ) |
Max |
0,2 |
0,3 |
0,3 |
0,3 |
0,3 |
0,4 |
|
Return Loss (dB) |
Min |
55 |
|||||
|
Directivity (dB) |
Min |
60 |
|||||
|
Working temperature (ºC) and storage temperature (ºC) |
Min |
od -40 do +75 |
|||||
|
Type of fiber according to |
ITU-T G652.D i ITU-T G657.A |
||||||
|
Fibre lenght (m ) |
≥1.0 |
||||||
|
If used connectors of type |
SC/APC, SC UPC or without connector |
||||||
Applications
●Fiber to the point (FTTX)
●Fiber to the home (FTTH)
●Passive optical networks(PON, GEPON)
●Local area networks (LAN)
●Cable television (CATV)
●Test equipment
Features
●Adopt high-strength stainless steel, pass the salt spray test
●Ferrule core is less than 0.5um
●Adopt 100% new raw material, ROHS compliance
●Low Insertion loss
●Low PDL Compact Design
●Good channel-to-channel uniformity
●Wide Operating Wavelength: from 1260nm to 1650nm
●Wide Operating Temperature: from -40℃ to 85℃.
Details

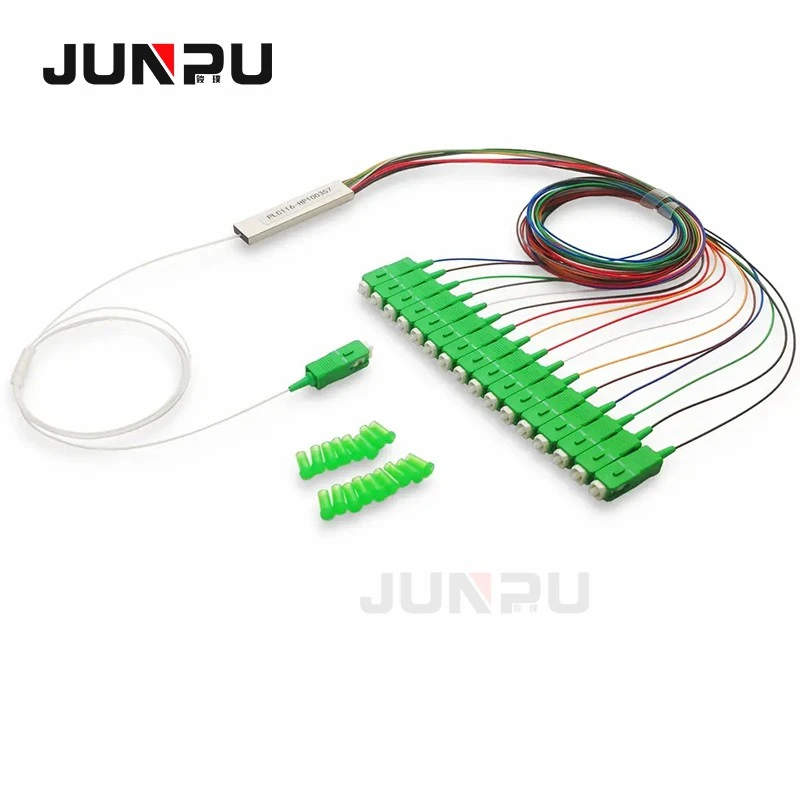

JUNPU Fiber Optic Splitter
JUNPU Fiber Optic Products
Packing and Shipping
We sincerely invite you to send us an inquiry for further details.
