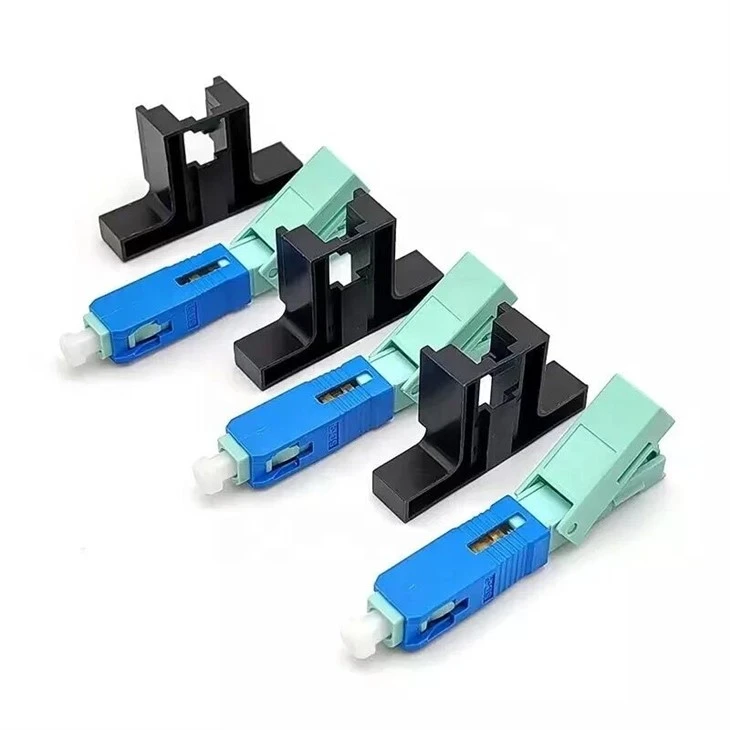

Fiber Optic Drop Cable Fast Connector
Products Description
The fast connector mainly used for quick installation on site, to achieve rapid connecting between two optical fibers.The JFOFC-PSCB55A and JFOFC-PSCB60A type fast connector length produced by JFOPT is availabe in 55mm and 60mm, which can be matched with various cables. The fast connector has passed strict environmental and mechanical tests, and their high-quality materials can guarantee the stability of repeated use and harsh environments.
Features
High-quality materials
High precision V-groove and excellent matching gel adopted for the connec-tor.
Stable and efficient
Pre-embedded fiber, stable performa-nce and low loss, able to pass temper-atures cycling test.
Simple installation
No fusion splice requested, only strip-per tool needed to assemble.

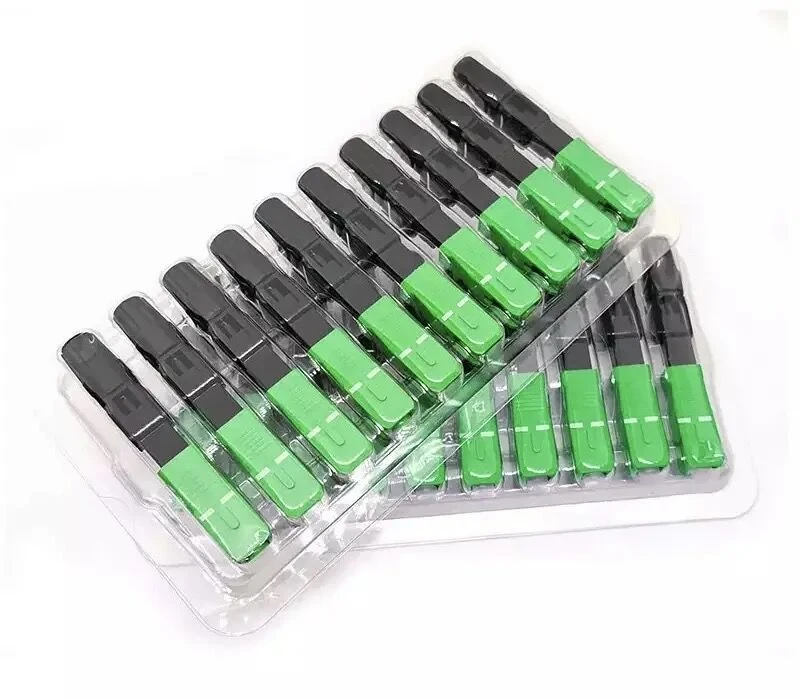

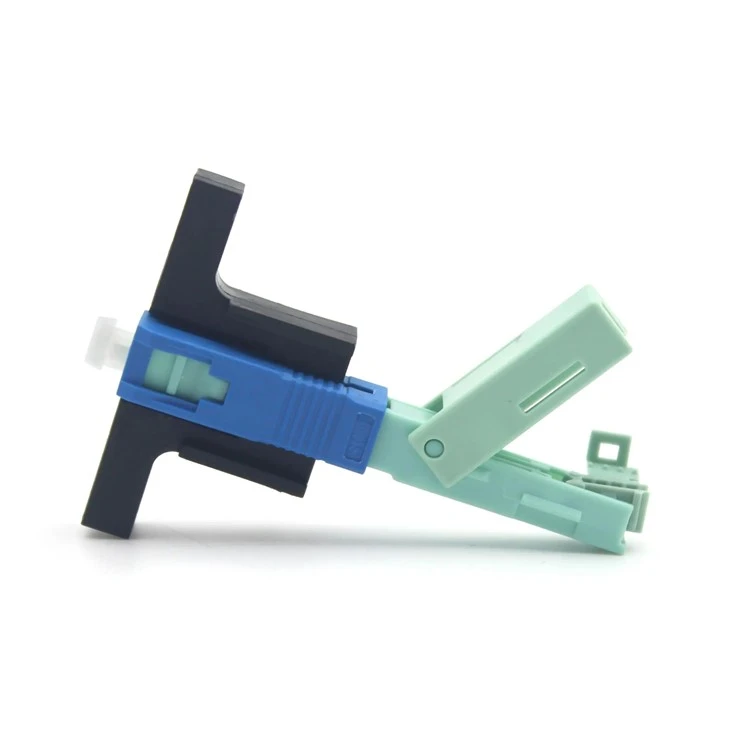

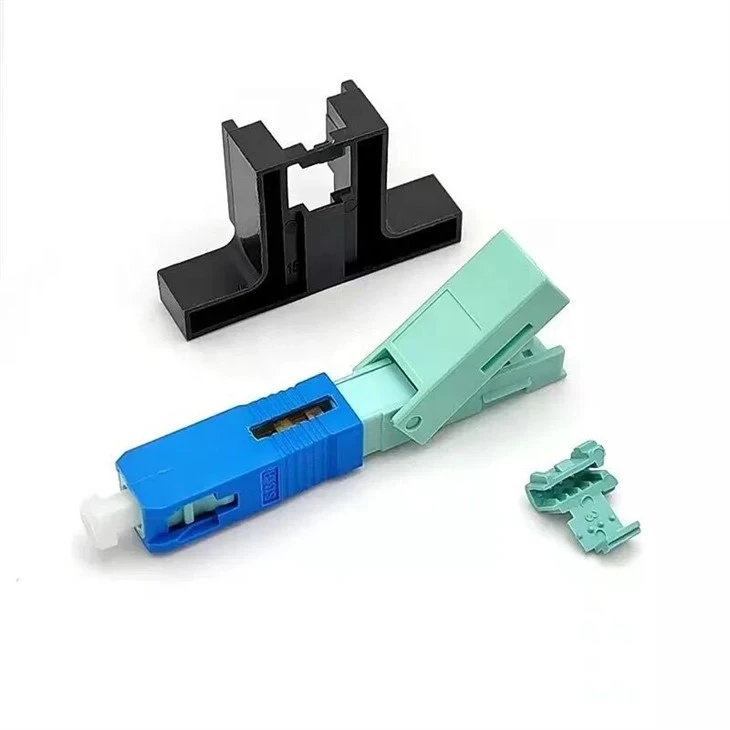

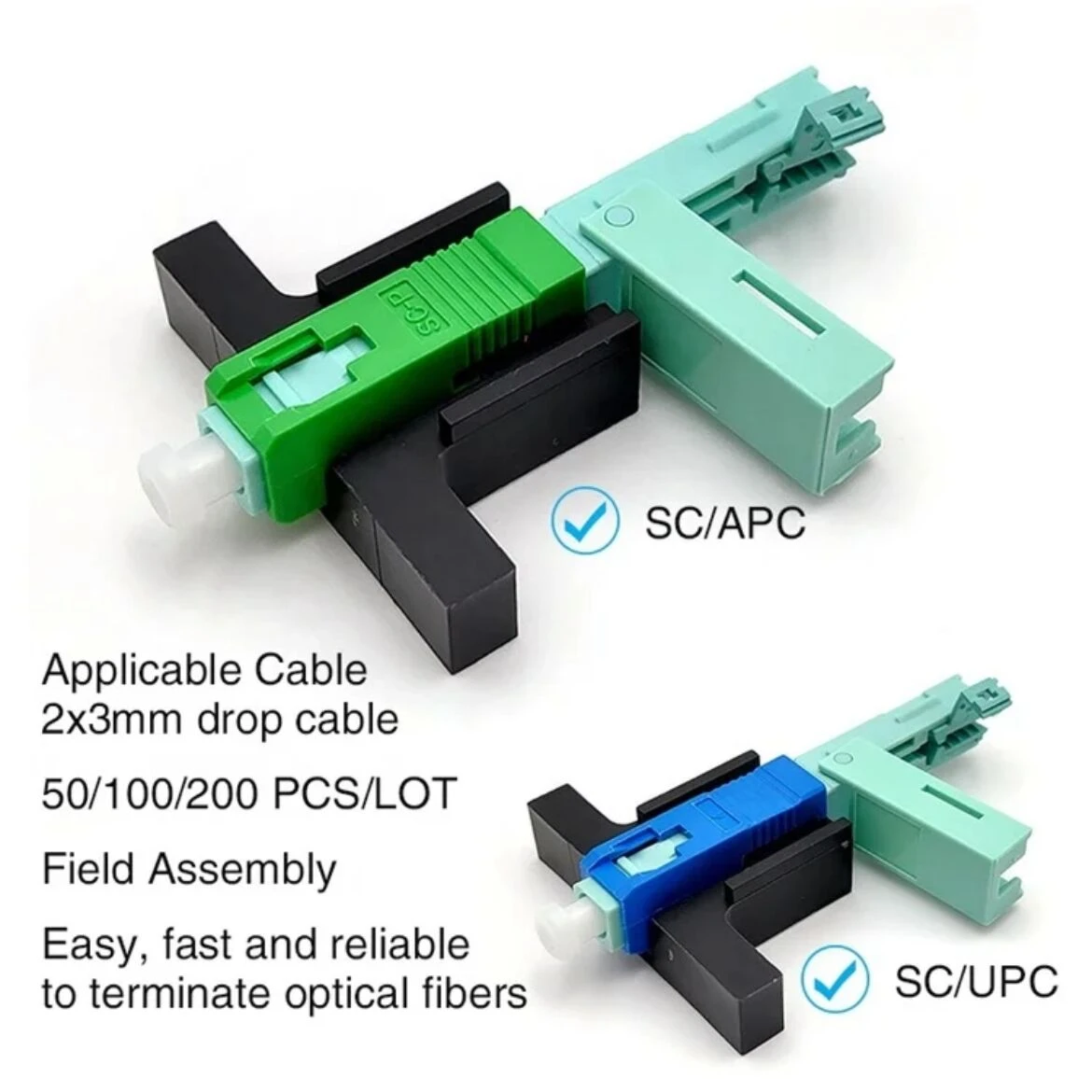

Detailed images
Dimension: 50MM
Fiber Mode: SM MM
Cable O.D.:2.0*3.0MM
Simple Specification:
Intersion Loss:UPC≤0.3dB APC ≤0.3dB
Return Loss: UPC ≥45dB APC ≥50dB
Tension: ≥100N
Operation Temperature: -40~+75

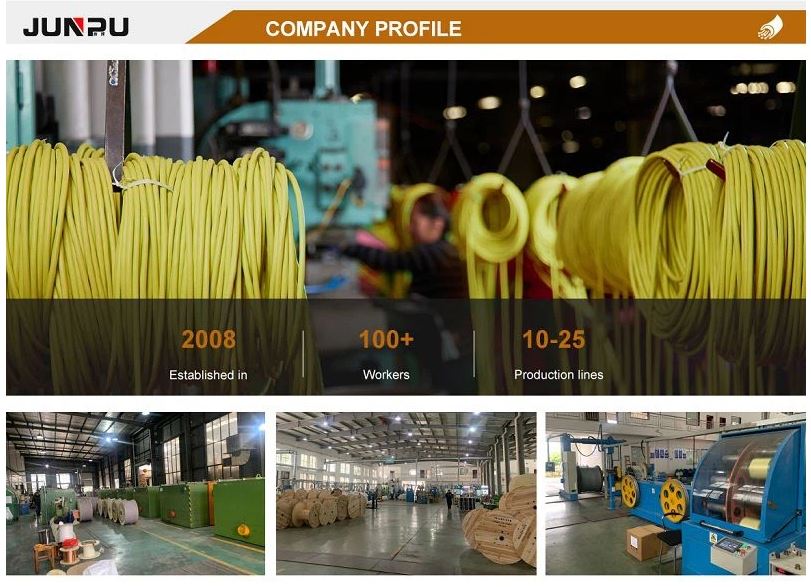

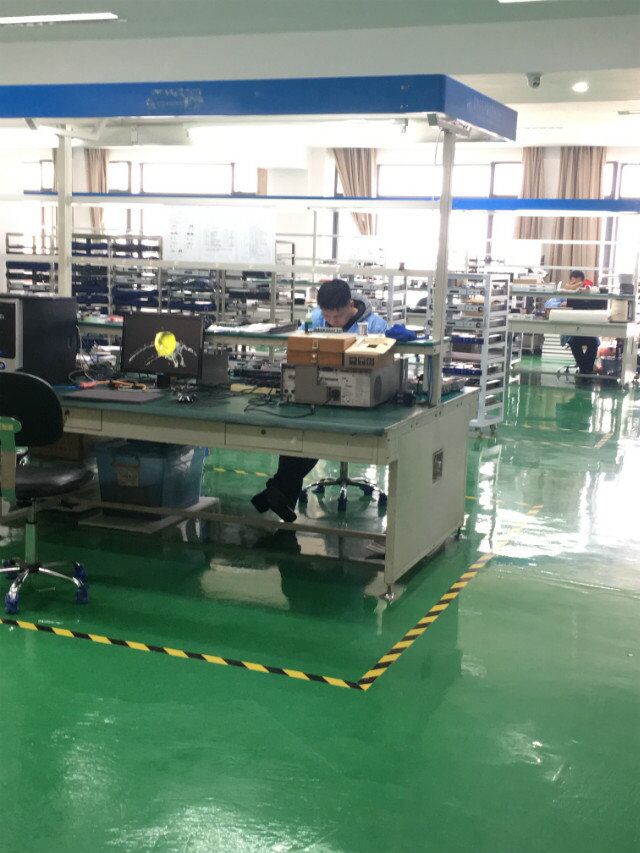

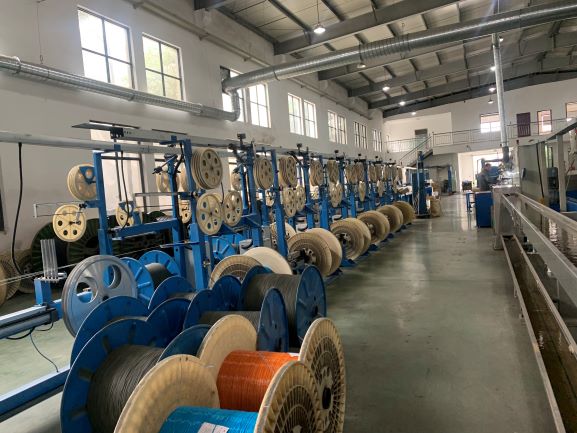

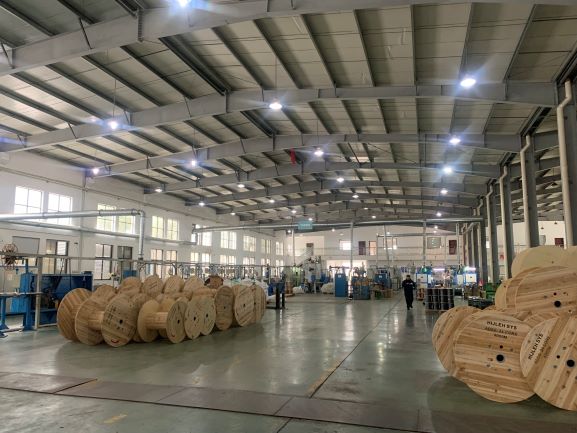

Our Factory
