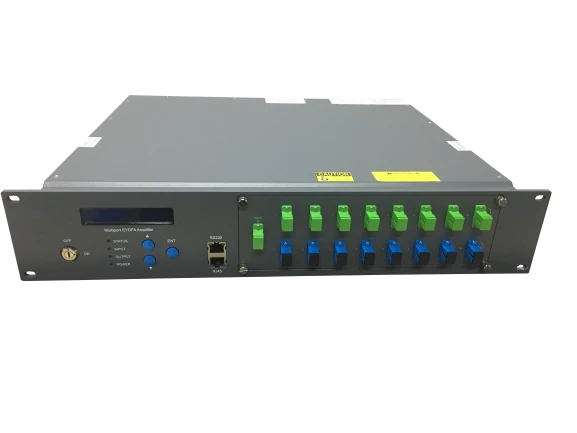

8 Port 19~23 Dbm 1550nm Fiber WDM EDFA
Product Reliability & Assurance backed by over 20 years of engineering and manufacturing experience each amplifier is strictly qualified and adhered to rigorous standards to guarantee you a maintenance-free and optimal performance network. A two-year limited warranty is offered with each amplifier.
Technical Support from our experienced staff is provided at every level to ensure each product configuration and characteristic is specific to your application.
Features
1. It adopts the top brand pump laser and double cladding active fiber.

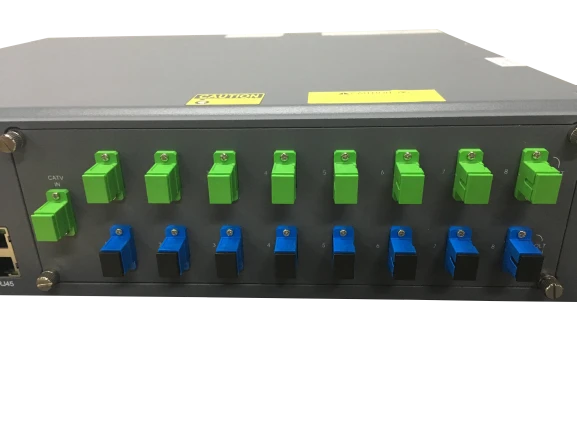

2. Each output port is built in with CWDM
3. Compatible with any FTTx PON：EPON,GPON,10GPON.
4. Perfect APC, ACC and ATC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm).
5. It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the laser.
6. Output adjustable, adjustment range : 0~-4dBm.
7. RF test in the front panel(optional).
8. The switching time of optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.

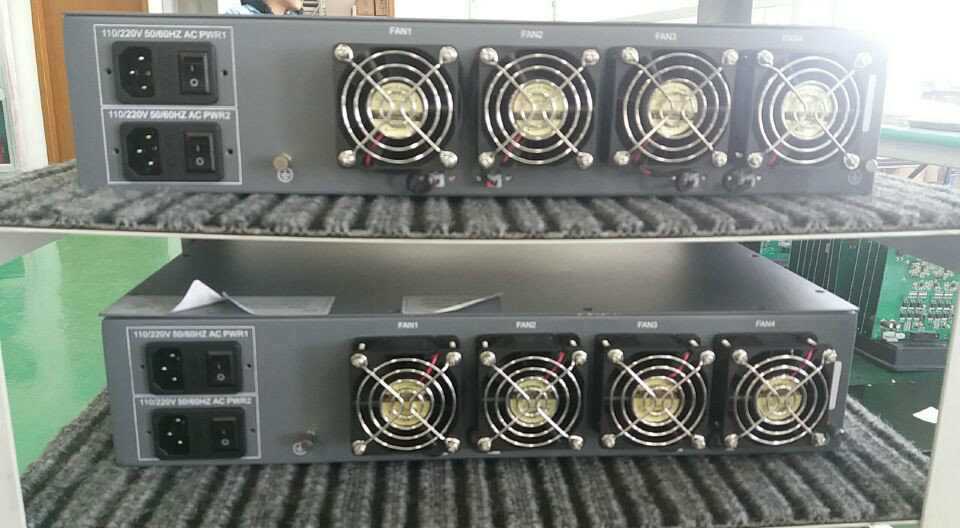

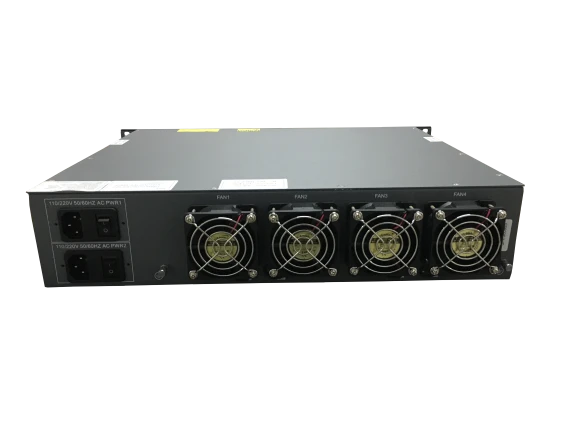

9. Built- in dual power supply, automatically switched and hot plug supported

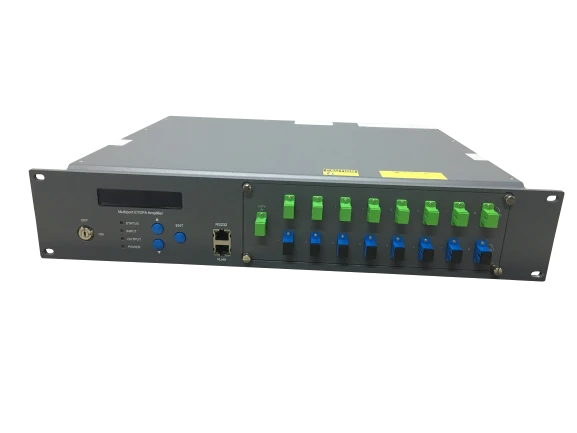

10.The operating parameters of the whole machine are controlled by microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.
11. Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.

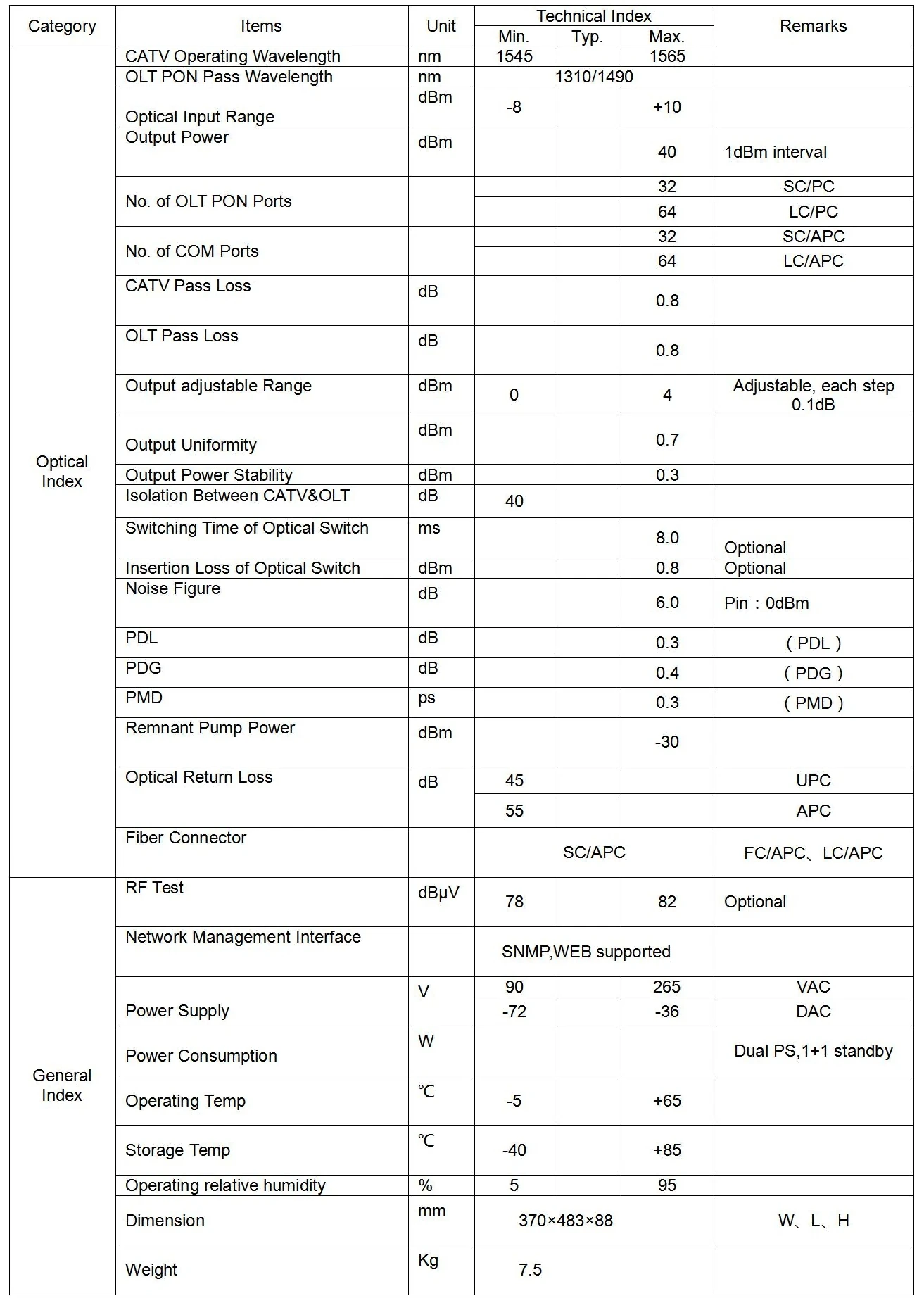

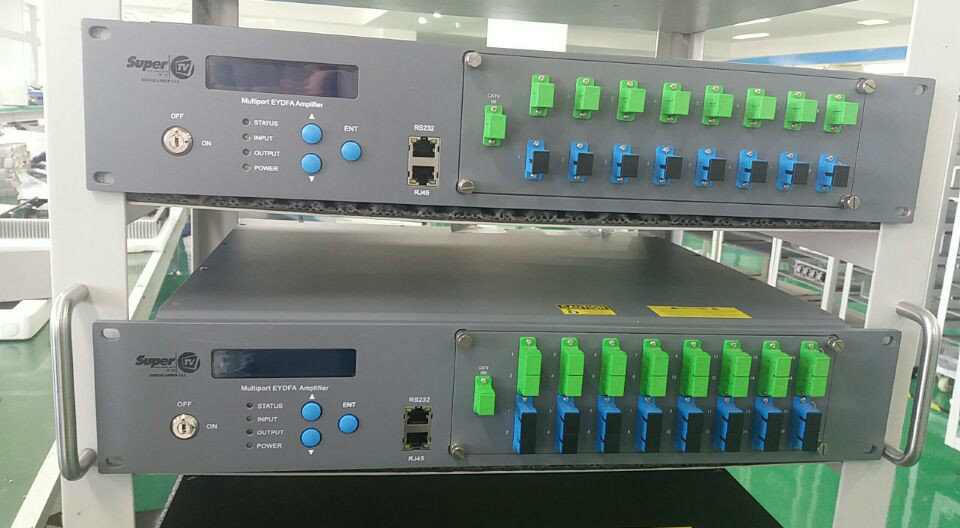

Details

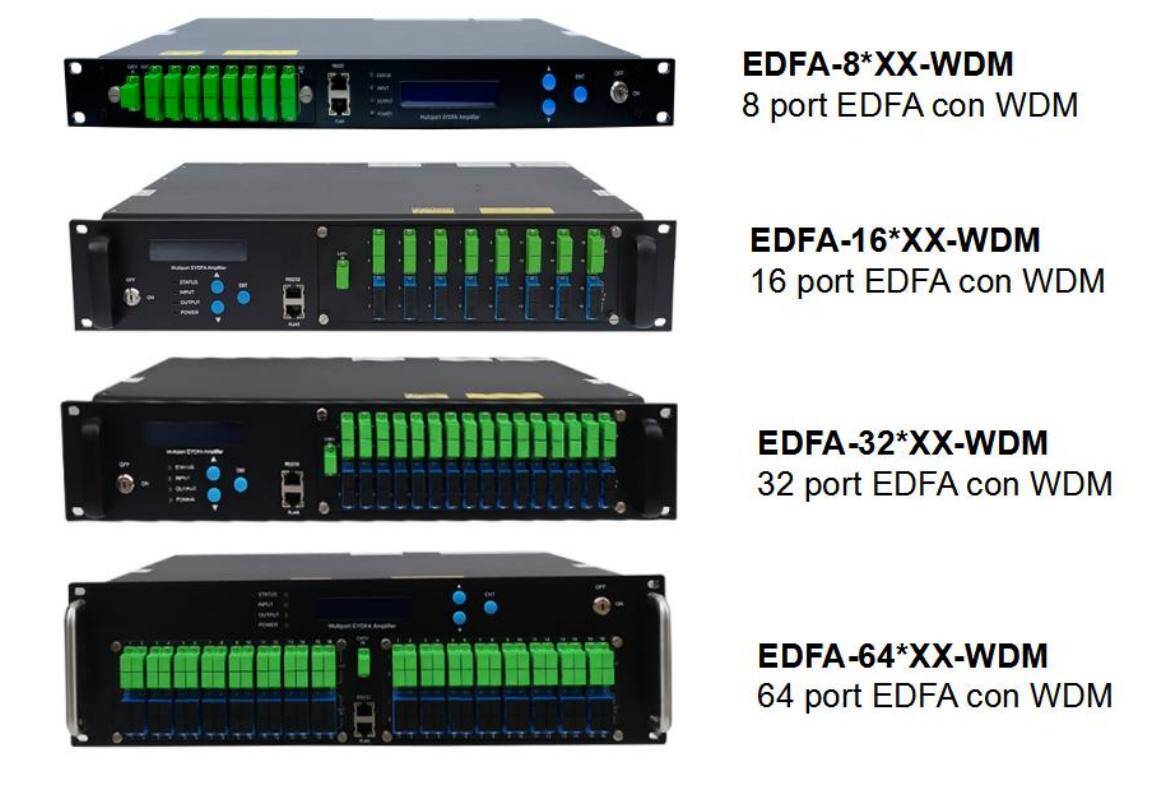

Other 1550nm CATV EDFA Series
