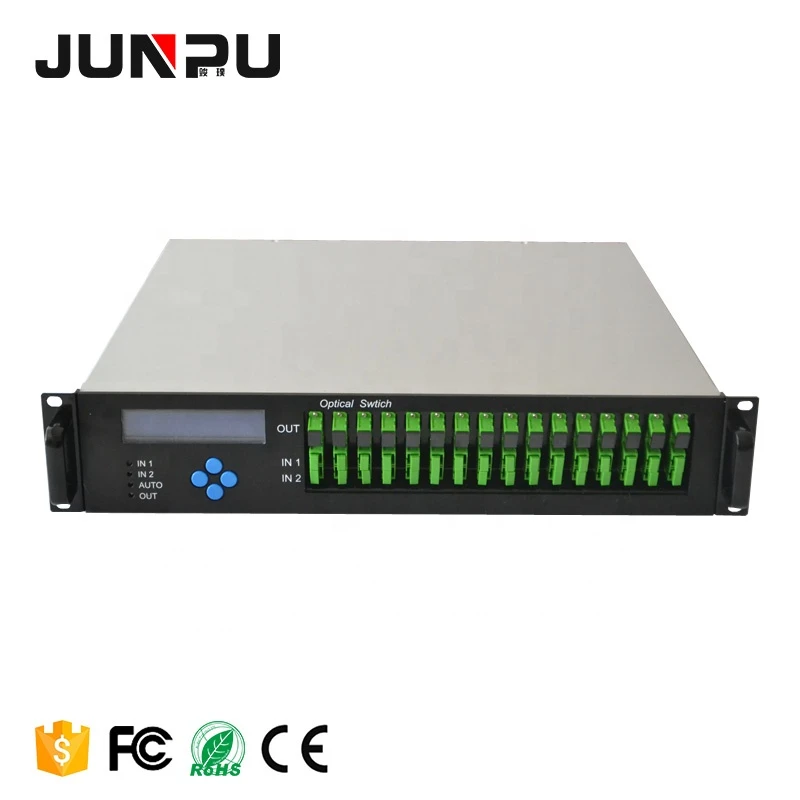

16 Port Fiber WDM EDFA With 1550nm

16 Port Fiber WDM EDFA With 1550nm

EDFA combiner is the newest PON+CATV FTTH/FTTP triple into one of optical transmitter system equipment, realizing combined function of the amplification of optical signal OLT and CATV 1550nm. The optical input number: 1 port of CATV + 16 ports PON input ports, 16 ports outputs of 1550nm/1490nm/1310nm combined output, the combined optical output power rate: 31~38dBm. plug-in power supply achieved the function of OLT and CATV 1550nm optical single combined and amplify, having high-cost performance value.

1. High quality: adopt multimode large power pump laser, power is optimized reasonably by software, and can most unlimited reduce NF of EDFA, it is comparable with EDFA. The feature can make system achieve excellent CNR.

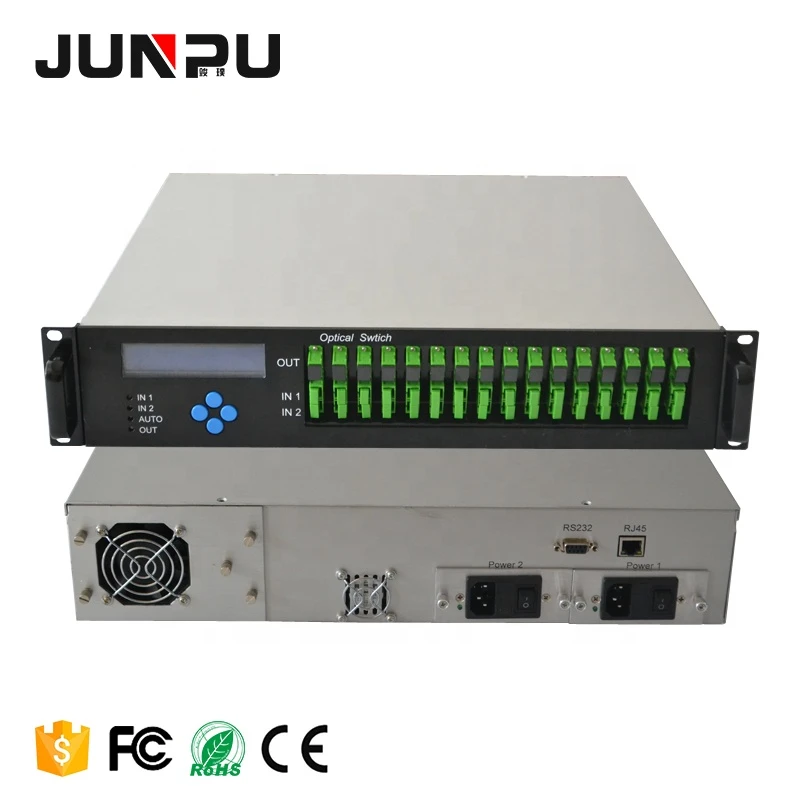

2. Reliability: The 19 "2U rack, built-in high-performance plug-in dual power supply, it can work at 85 ∽ 265Vac City Network Voltage, As well as an optional DC48V power supply (reservations required); chassis cooling can be automatic control by temperature.

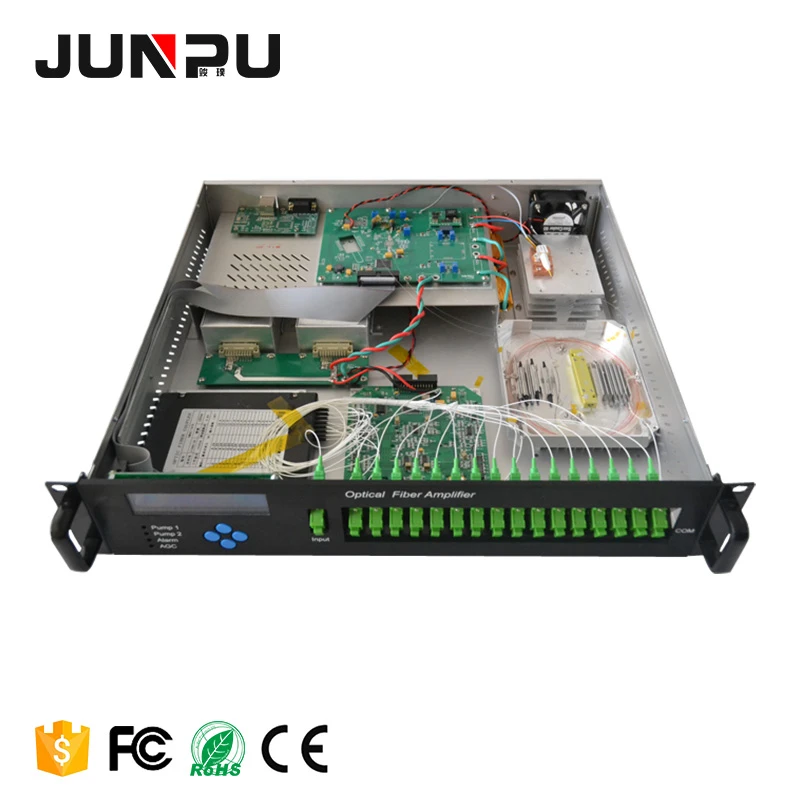

3. Intuition: The pump laser is the most expensive machine components, machine equipped with microprocessor monitors the working state of the laser, the panel LCD window displays the operating parameters.
4. Network type: Select All-piece status monitoring transponder guarantees to meet the national standard and be compatible with the SCTE HMS standard, it enables network management to monitor capabilities.

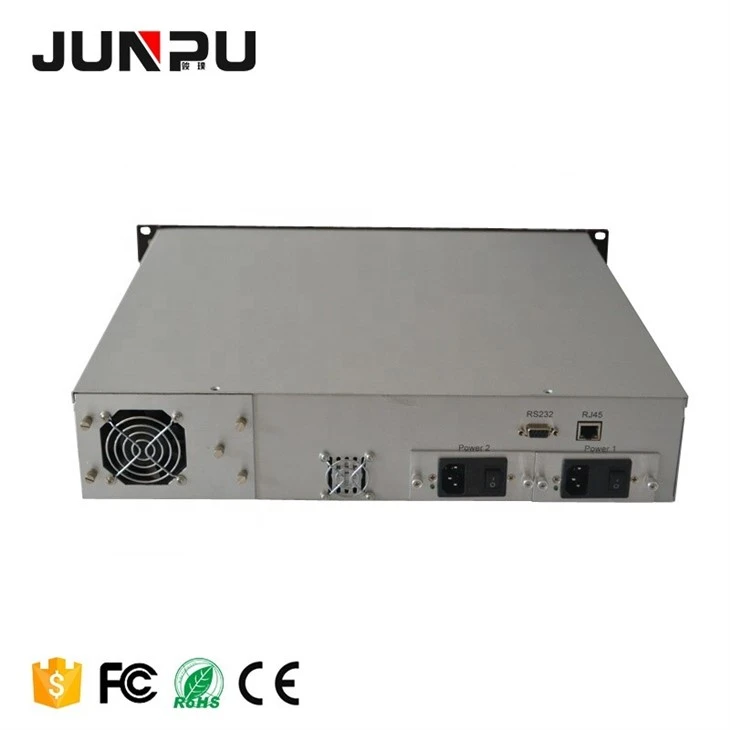

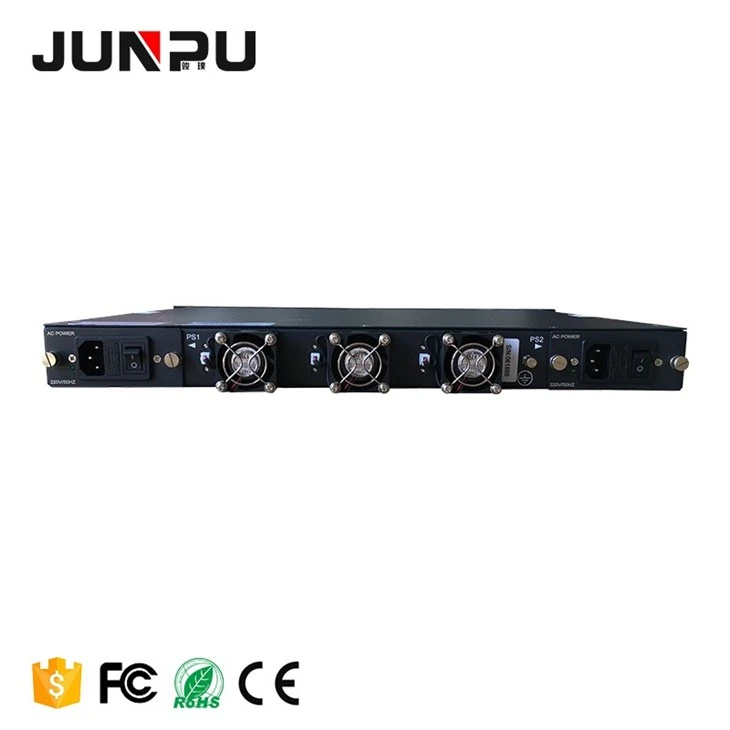

5. The plug is draw-out type: switching power supply is draw-out type with aluminum profile structure, it helps greatly to cooling and replacement. Besides it can make dual supply cold-heat backup.
6. Adjustable output optical power: You can adjust the range of output optical power (downwards -3dB), it is required specification when user orders.
7. High output power: Matched output power maximum is 4W∽6W.
8. Some models can be integrated WDM, in GPON, EPON is more simple to use
