FTTx IP68 Fiber Splitter Terminal Closure
Description

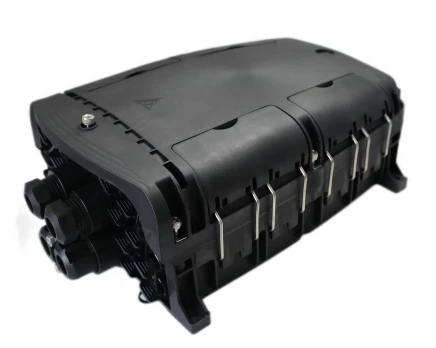

FTTx IP68 Fiber Splitter Terminal Closure
FSTC-16QX fiber splitter termination closure is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
|
- Water-proof design with IP-68 Protection level.
- Integrated with flap-up splice trays.
- Impact test: IK10, Pull Force:100N, Full rugged design.
- All stainless metal plate and anti-rusting bolts, nuts.
- Fiber bend radius control more than 32mm.
- 4 x 12F splice trays, 4pcsof 1*16 PLC Splitters can be installed as an option.
- Plug-and-play installation, easy for maintenance and expansion.
- 180 degree access with 4 pcs of buckled lock structure.
- 16 x reinforced adapters for drop cable with reinforced connectors.
- 1 x mid-span cable entrance for uncut cables (7-18mm). And 2 x mechanical glands for distribution cable(7-18mm)
Standard Accessories
Splice trays x 4pcs, wall mounted kits, fiber protective sleeves, cable protection tube, manual.
Optional Accessories
Pole ring, Aerial hanging kit.
|
