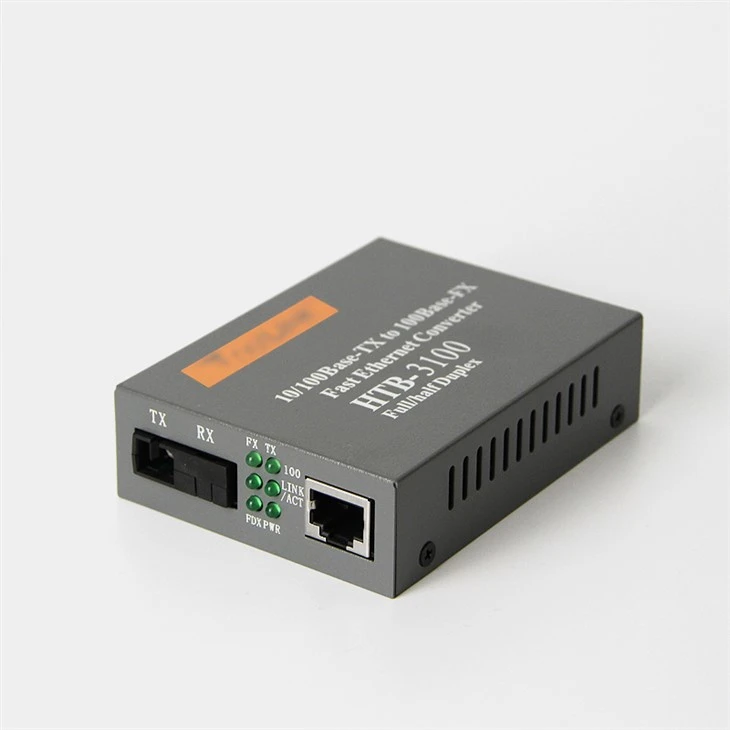

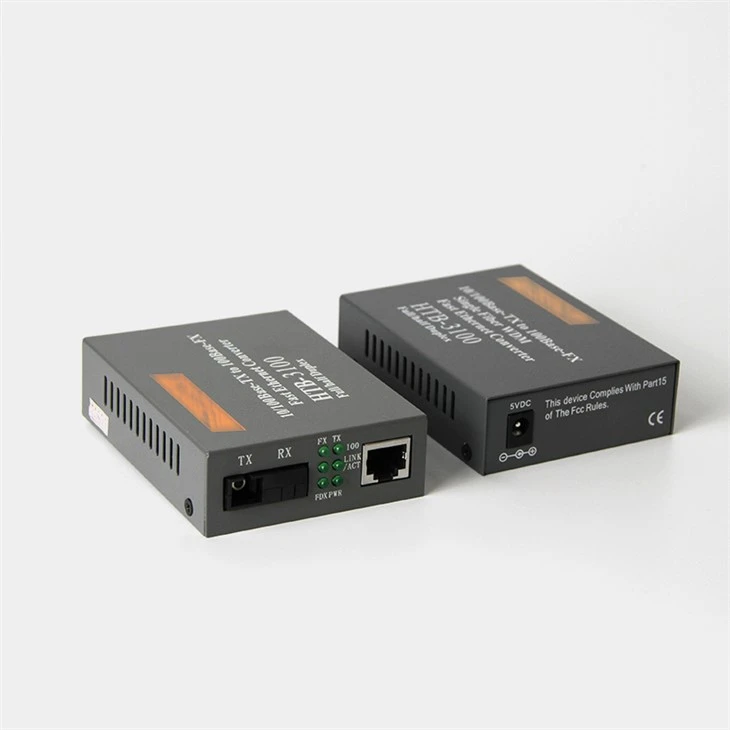

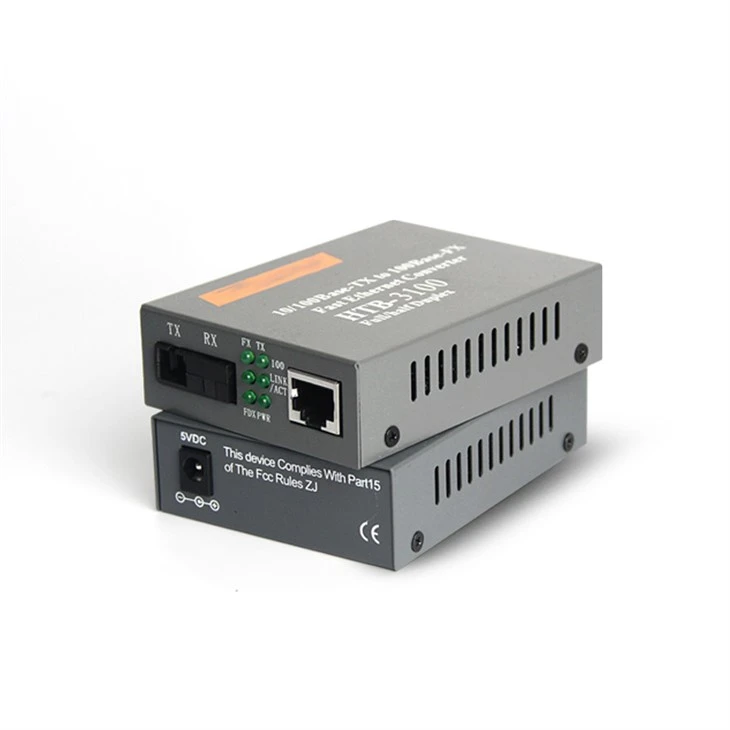

10/100/1000mbps Gigabit Fiber Media Converter

Gigabit Fiber Media Converter 10/100/1000mbps Ethernet To Fiber 10/100M WDM 1310nm 1550nm Single Mode Fiber Netlink

10/100/1000mbps Gigabit Fiber Media Converter

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.

Send Inquiry

Description

Technical Parameters

10/100/1000mbps Gigabit Fiber Media Converter

Media Converter Netlink-3

Products Description

TW-804EP-F has a total PoE budget of 48 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3at/af PoE ports provide PoE power injector function which is able to drive two IEEE 802.3at compliant powered devices or four IEEE 802.3af compliant powered devices. The TW-804EP-F also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a palm-size metal housing, suitable for the desktop deployment of SOHO or home-use network environment.

Feature

1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply

Technical Information:
1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
