China Fiber Optic Quick Connector For Sale

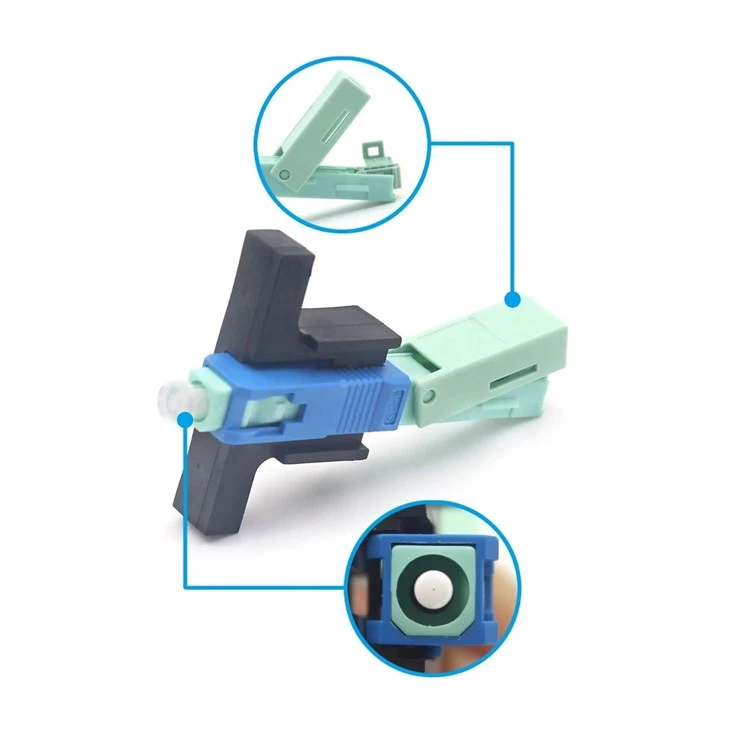

JUNPU Quick connector is Factory price .FTTH Fiber Optic 60mm SC UPC Fast Connector for Drop Cable FTTH Quick Assembly Connector (No polish Connector) Fast connector SC/APC/UPC Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also,transparent design of the side cover which allows visual inspection.
|
Applicable for |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Optical fiber diameter |
φ125um (657A&657B) |
|
Tight buffer diameter |
φ250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 10s (exclude fiber cut) |
|
Insert loss |
≤0.5dB (1310nm & 1550nm) |
|
Return loss |
≥45dB |
|
Fastening strength of naked fiber |
≥ 5N |
Applications
●Fiber optic communications in harsh outdoor environments.
●Connections at the desk for LAN environments).
●Outdoor communications equipment connection.
●Direct equipment termination).
●Fiber to the Subscriber (FTTF) applications).
●Remote wireless base station.
●FTTX wiring project.
Features
●Compact size,easy to operate,durable.
●Easy connection to hardended adapters on terminals or closures.
●Quick and easy fiber termination in the field
●Spiral clamping mechanism ensures long-term reliable connection.
●Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
Details

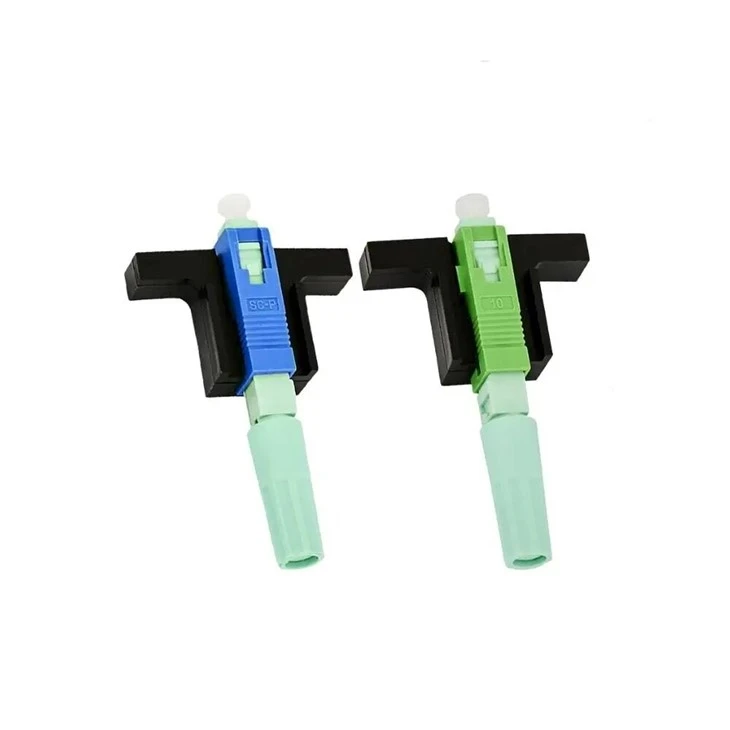

JUNPU Fiber Optic Fast Connector

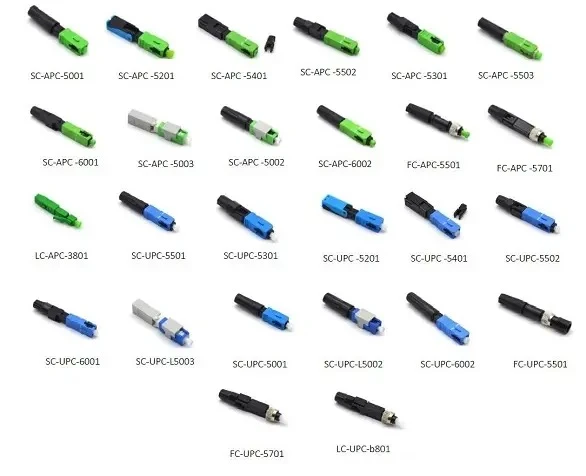

JUNPU Fiber Optic Products
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
