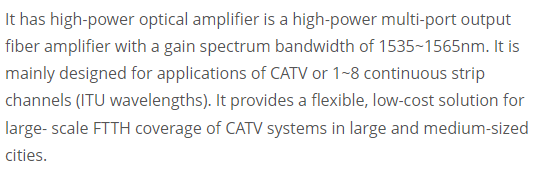

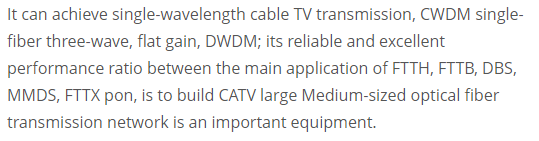

Description
Technical Parameters

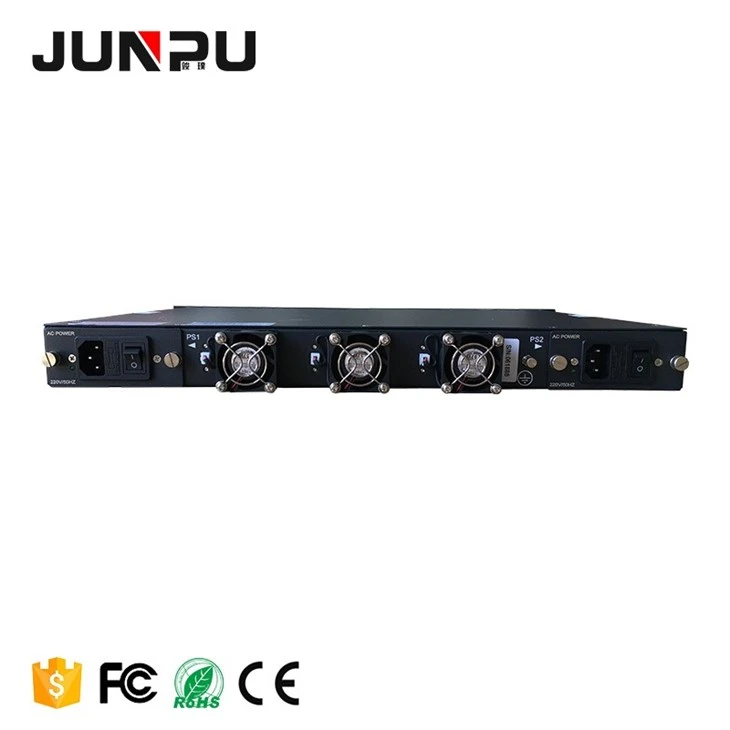

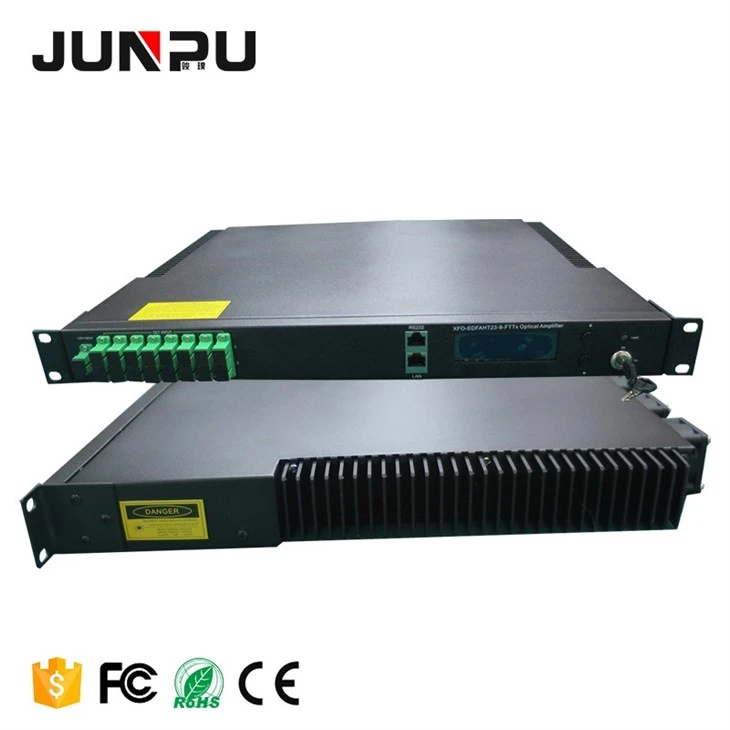

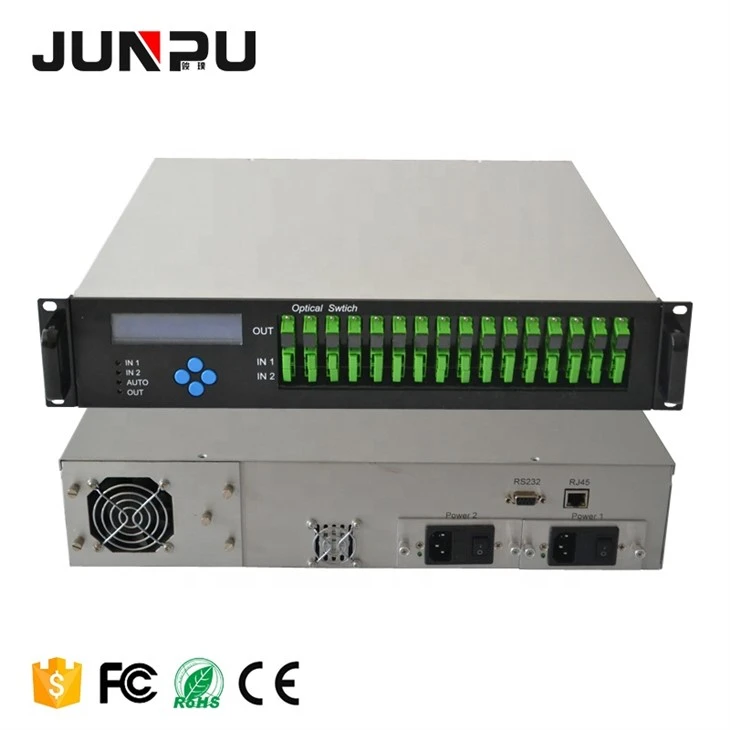

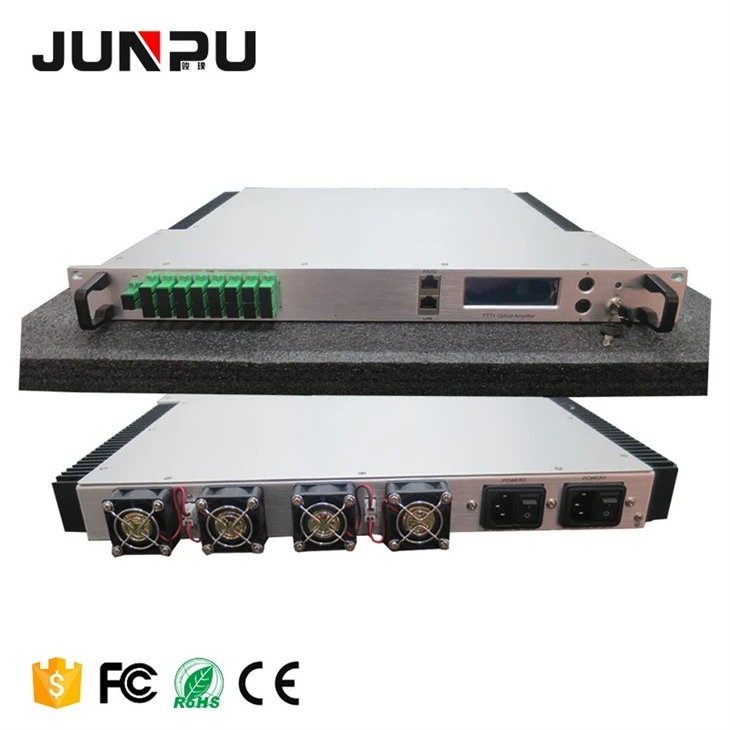

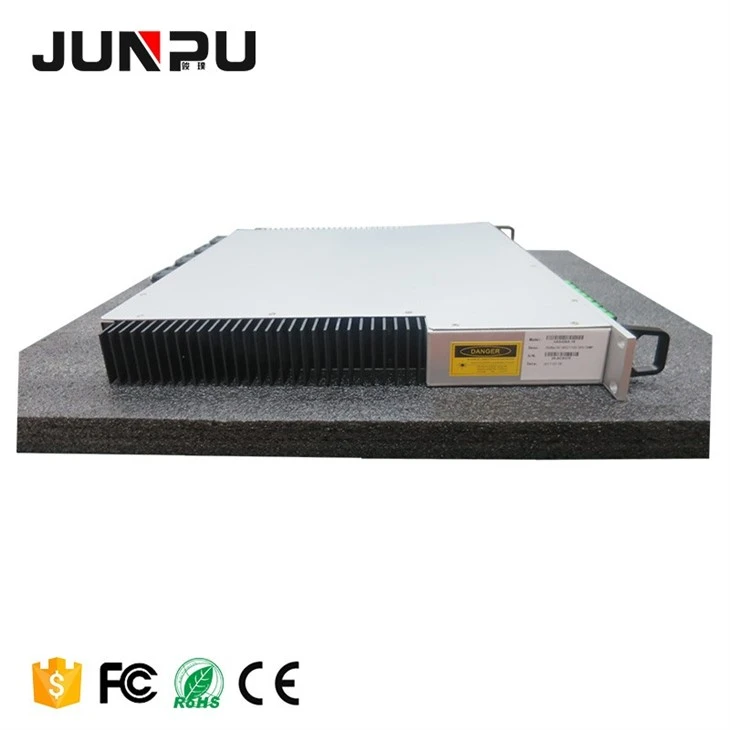

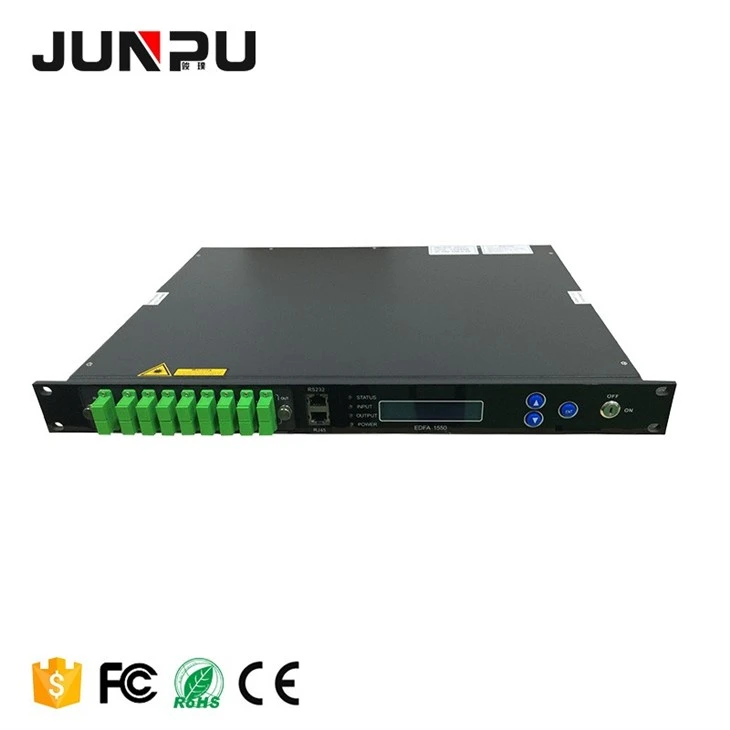

CATV 1550nm 16 Ports 22dB Fiber Amplifier
|
Performance |
Index |
Supplement |
||||
|
Min. |
Typ. |
Max. |
||||
|
Optical feature |
Operating wavelength range |
(nm) |
1540 |
1563 |
CATV |
|
|
Input power |
(dBm) |
-10 |
10 |
|||
|
Total output power1) |
(dBm) |
|||||
|
Number of output ports |
(pcs) |
32 |
4/8/16/32 |
|||
|
Each output power |
(dBm) |
0 |
22 |
13 ~ 24dbm |
||
|
Difference of output power |
(dB) |
-0.5 |
0.5 |
|||
|
Output power adjustable range |
(dBm) |
-6 |
0 |
|||
|
Noise figure (Pin=0dBm) |
(dB) |
4.5 |
5 |
|||
|
5 |
6 |
|||||
|
Switch time |
(ms) |
8 |
||||
|
Polarization dependence loss |
(dB) |
0.3 |
||||
|
Polarization dependence gain |
(dB) |
0.4 |
||||
|
Polarization mode dispersion |
(ps) |
0.3 |
||||
|
Input/output isolation |
(dB) |
30 |
||||
|
Pump power leakage |
(dBm) |
-30 |
||||
|
Echo loss |
(dB) |
55 |
APC |
|||

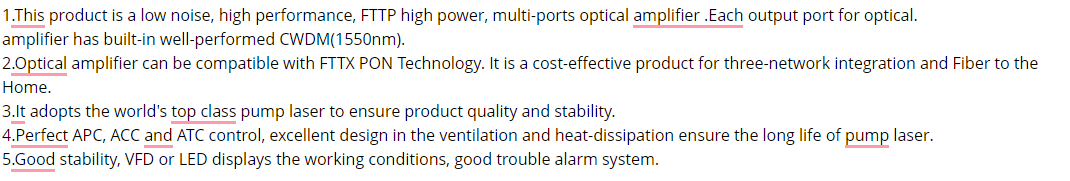

Features
Details
