288 Core Horizontal Joint Splicing Box

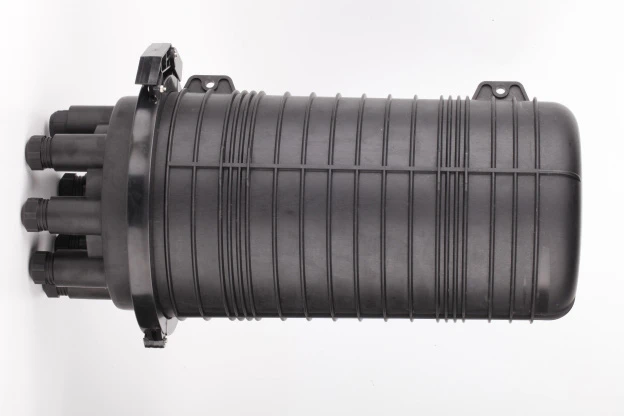

This product is fber optic splice closure DOME that can be used for protection of various through and branch boxes. This
type of joint sleeve is sealed with mechanical seal and can be used for underground installation, manhole, pole, wall hanging
Features
Mechanical sealing structure.
2. High quality industrial plastic body material.

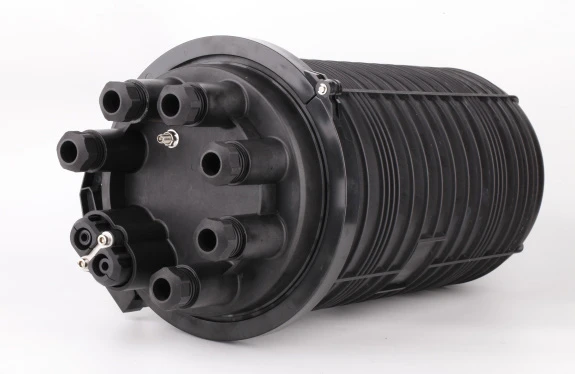

3.1 oval hole and 6 round holes for cable entrance.
4. Suitable for cable diameter of 10 mm - 18mm.
5. Support underground installation, manhole, pole, wall hanging, and overhead installation.
6. The protection grade reaches IP68.
7. 360 degrees access , Fiber bending radius > 40mm.
8. Maximum capacity : 288 fbers.

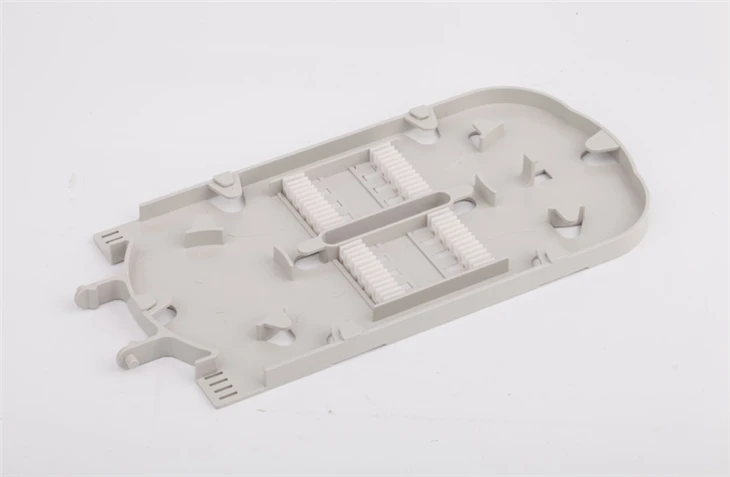

9. Number of splice trays : 12 pcs x 24 F.
Details
