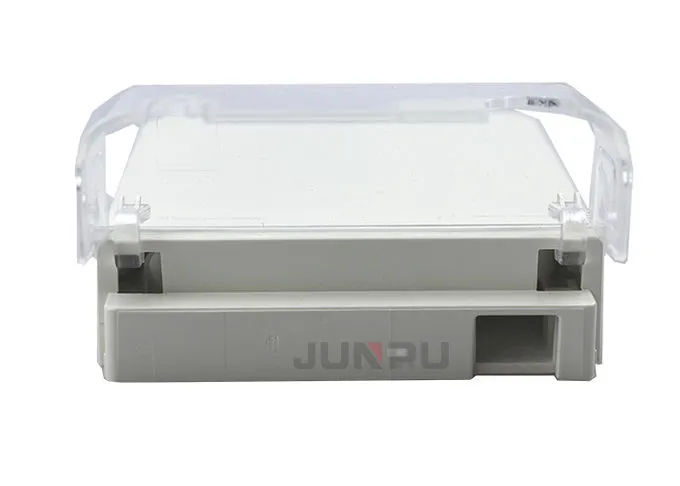

Indoor Fiber Termination Box
Description
JP-FRB-1A Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work areas, complete dual-core fiber access and port output, can fully meet the requirement of fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.
The dual port fiber indoor termination box is perfect for FTTH or FTTB installations where you need to provide a final connection point for 1 or 2 fiber strands. This enclosure is only rated for indoor installations. It has 2 ports that can take LC Duplex or SC Simplex midcoupler adapters.
The enclosure has the ability to spool fiber strands within for neat and quality installations.
Features
●Small size and lightweight for easy installation
●Double-layer design for easy installation and maintenance
●Four cable entries, available from the top, bottom, and right side into the line, easy-to-choose routing
●Single-core, dual-core fiber adapters can choose
●Using high-quality ABS material, with a certain fireproofing performance
●With dust-proof device to prevent dust
●With a logo bar, easy to manage numbers and maintain
●Applicable with fiber optic cable or indoor cable
●Adapter Type: SC, LC
Application
●Fiber to the desk (FTTD)
●Fiber to the home(FTTH)
●Fiber to the building(TFFB)
●Local area networks
●Wide area networks
Details
|
Parameter |
Attributes |
Remark |
|
Model |
WT-FTTD-ATB-H02 |
|
|
Outside Dimension |
115*86*23mm |
|
|
Material |
PC+ABS |
|
|
Color |
White |
|
|
Storage of fibers |
G.657 fiber |
|
|
Splice capacity |
2 Fiber |
|
|
Splice Method |
Fusion splice |
45mm sleeve |
|
Adaptor type and count |
SC,2SC |
|
|
Input cable |
3mm or Ftth cable(2*3mm) |
From side or bottom |
FAQ
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, we offer 1-2 years warranty on our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as per your request.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
