Wall mounted Fiber Optic Cable Termination Boxes rosette PC+ABS material
Description

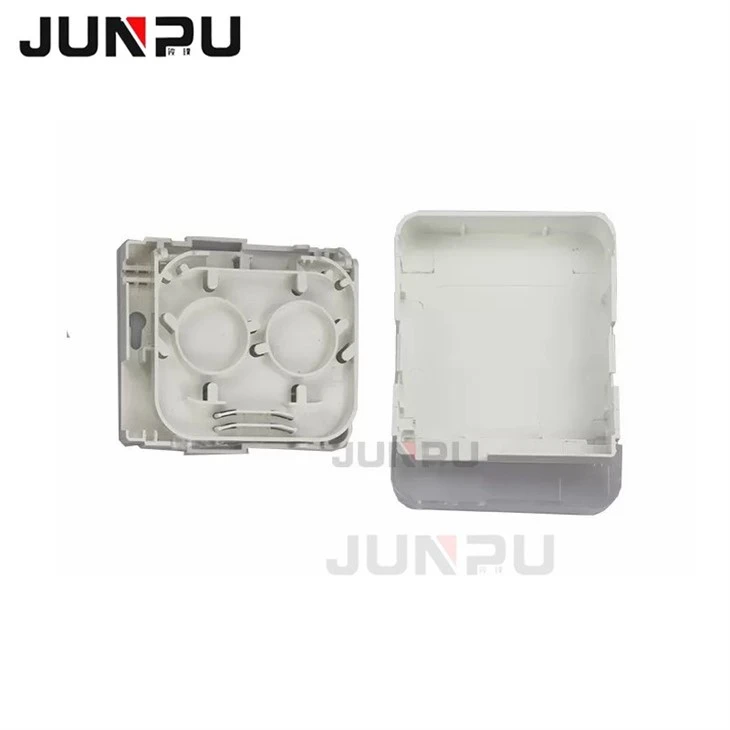

FRB-4A series fiber rossette box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable.
The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor
|
Material |
Size |
Max Capacity |
Mounting way |
Weight |
Color |
|
|
PC + ABS |
100.5X80.5X28.8MM |
SC 4 ports |
LC 8 ports |
Wall mounting |
0.4kg |
Grey |
Environmental reguirement
Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa
Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V
