Preconnectorized FTB Fiber Termination Box
Products Description
Fiber Access Termination Box with pre-terminated cable could be able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. A pre-terminated fiber access terminal helps save installation time and labor costs by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating the fiber optic cable in the field again.
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Features
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
16 ports cable entrance for pre-terminated distribution cables
2 derivation ports
6pcs splicing trays with maximum splicing capacity 72 cores
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
4. Cable, pigtails, patch cords are running through their own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5. The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Configuration
1. Environmental requirement
Working temperature: ~40℃~+85℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure: 70KPa-106KPa
2. Main technical datasheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2×104MΩ/500V(DC); IR≥2×104MΩ/600V
The withstand voltage between the grounding device and cabinet is no less than 3000V(DC) /min, no puncture, no flashover: U≥3000V

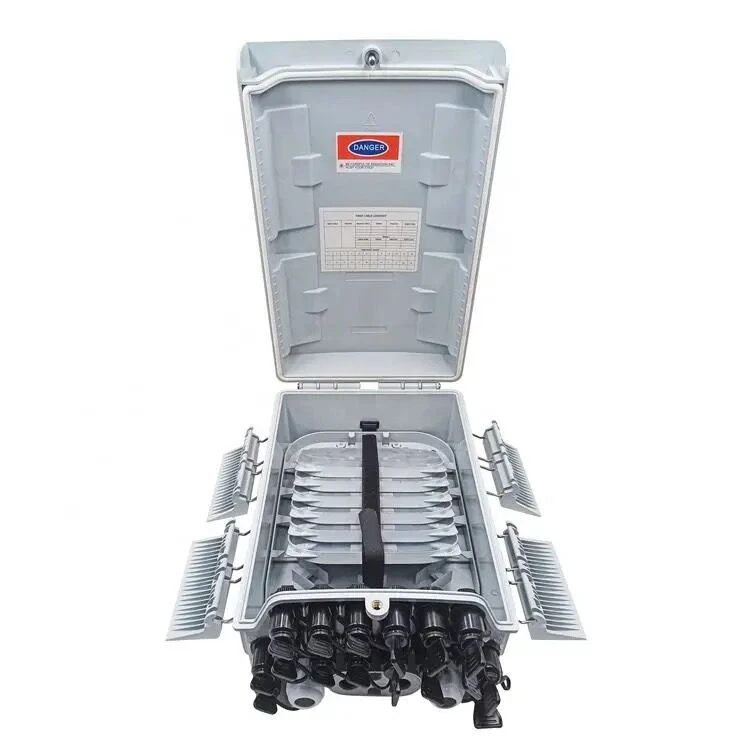

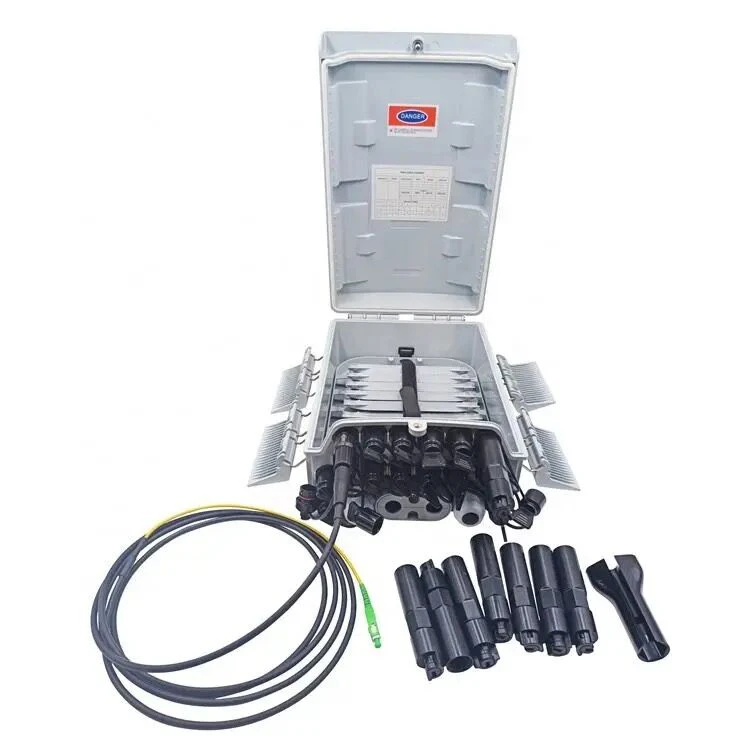

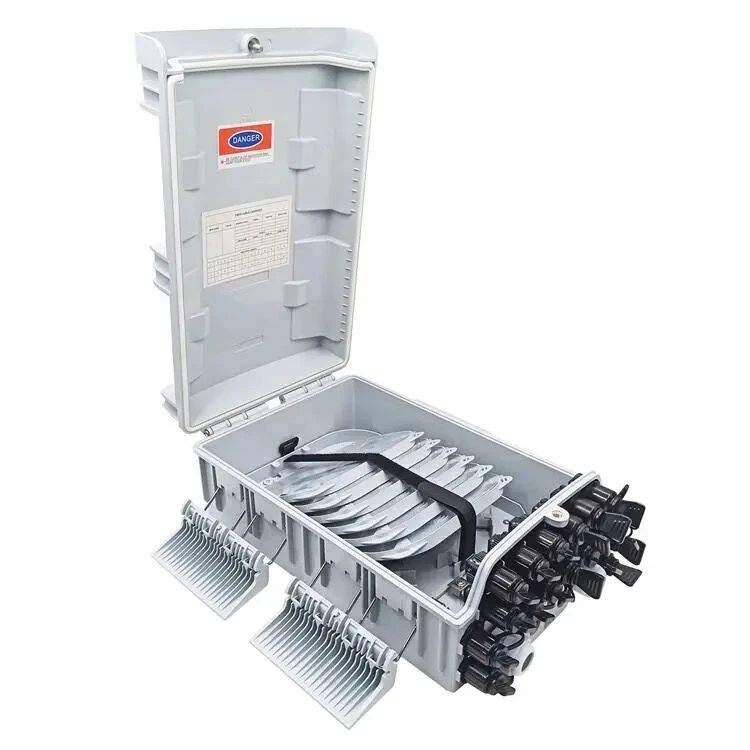

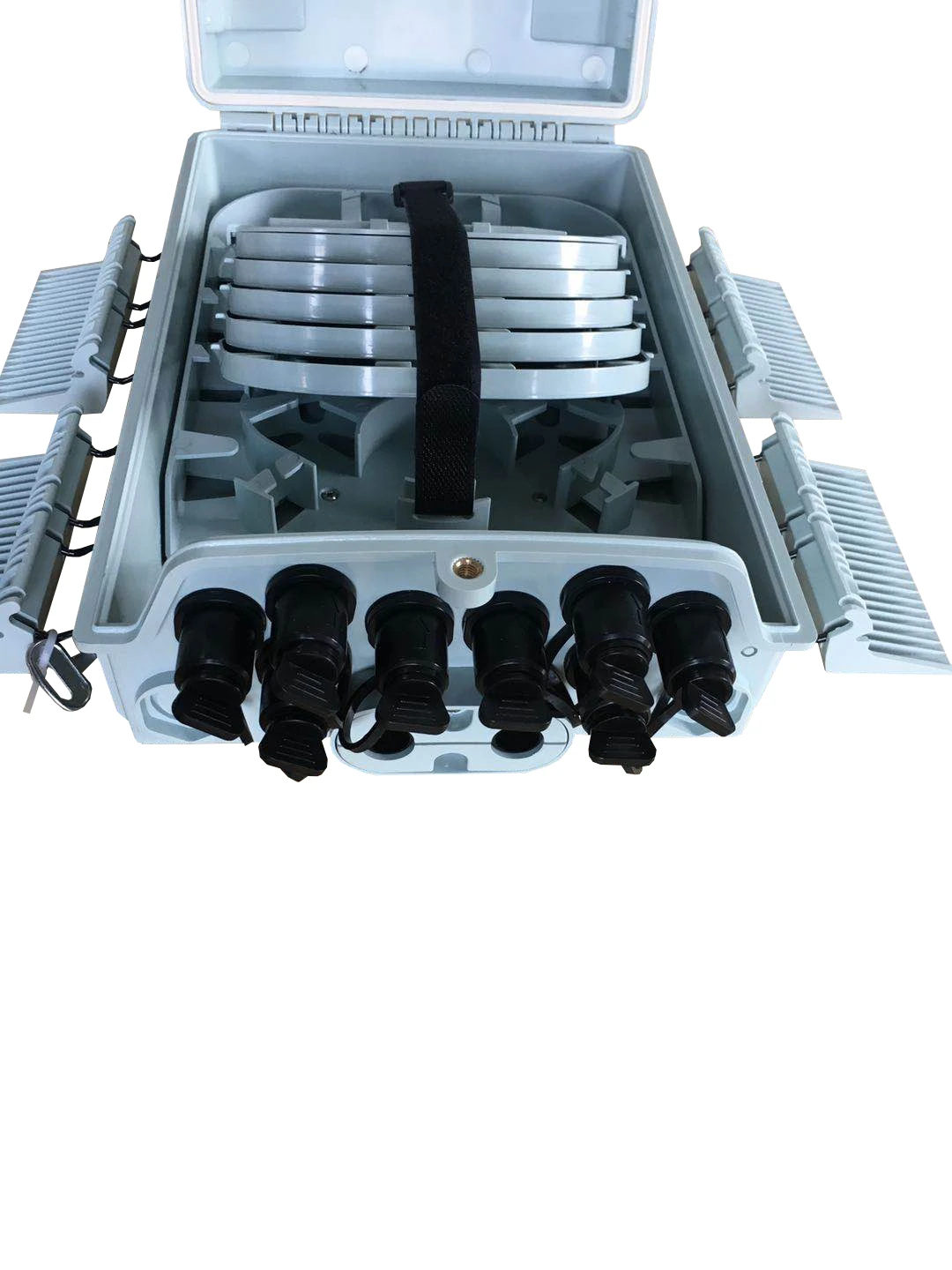

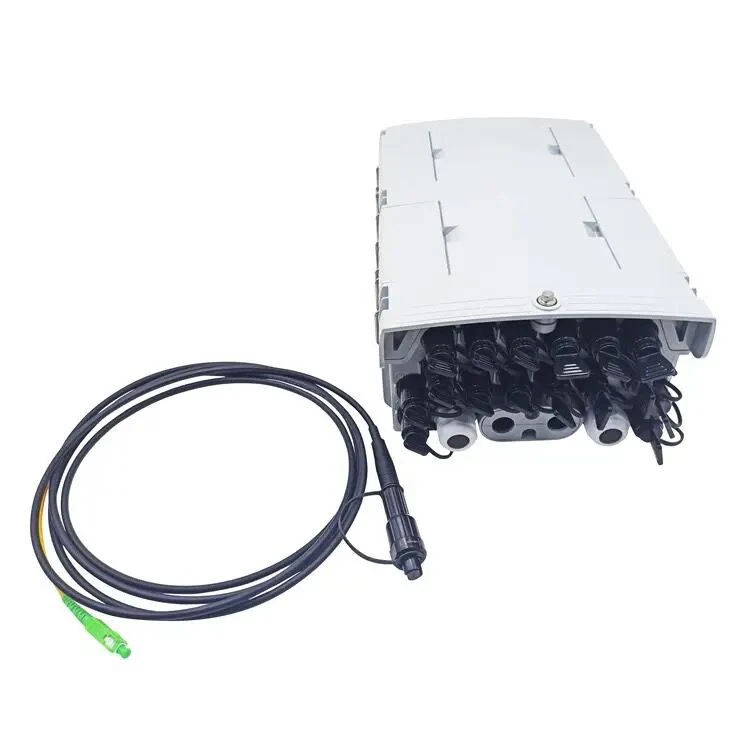

Products Details
