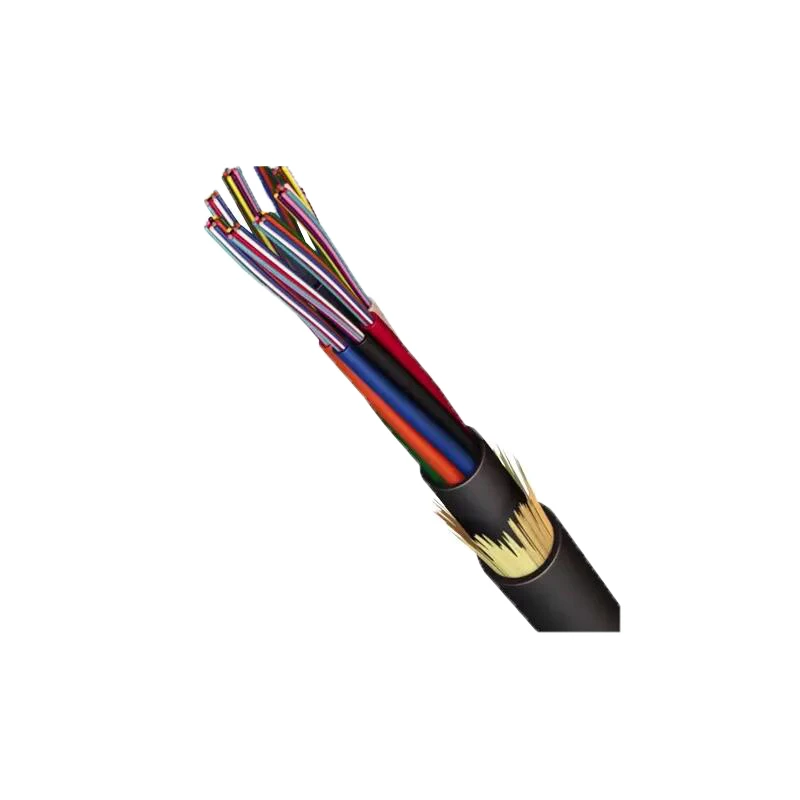

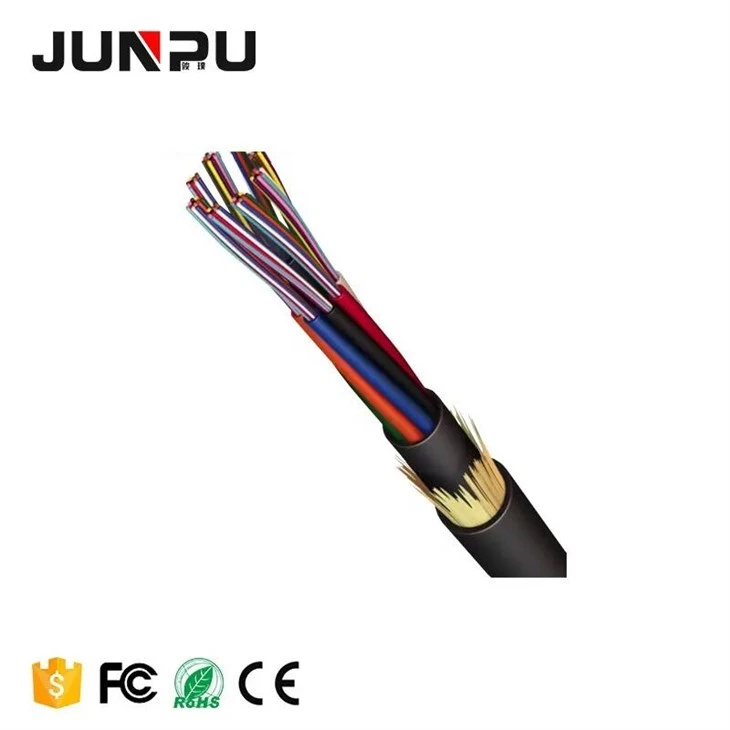

80-150m Span Mini Adss Cable
Products Description
The optical fiber is put in a loose tube.The fiber can be 4-12 cores in the tube. Tube filling compound will be used for as water blocking elements.
FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. 4-12 cores colored fiber Non-metallic self-supporting membe Good-performance sheath materials.
FEATURES
* High-integrated colored bare fiber design.
* Aramid yarn as strength member making cable have excellent tensile strength performance.
* The outer jacket material has many advantages such as anti-corrosion,waterproof, anti-ultraviolet radiation, flame-retardant and
harmless to environment etc.
Parameter
|
Optical Transmisson Performance |
Single mode |
Multi mode 850/1300 nm |
||||
|
9/125 μm(OS2) |
62.5/125 μm |
52/125 μm |
52/125 μm |
52/125 μm |
||
|
Max. Attenuation (db/km) |
0.36/0.36/0.25/0.35 |
3.0/0.8 |
2.7/0.8 |
2.7/0.8 |
2.7/0.8 |
|
|
Typ. Attenuation (db/km) |
0.34/0.32/0.21/0.24 |
2.7/0.6 |
2.5/0.7 |
2.3/0.6 |
2.3/0.6 |
|
|
Bandwidth(Mhz/km) |
N/A |
200/600 |
500/500 |
1500/500 |
3500/500 |
|
|
850 nm laser bandwidth |
N/A |
N/A |
N/A |
2000 |
4000 |
|
|
Numerical Aprture |
0.13±0.01 |
0.275±0.015 |
0.200±0.015 |
0.200±0.015 |
0.200±0.015 |
|
|
Cable Code |
Cable Diameter |
Cable Weight |
Tensile Strength |
||
|
TPU jacket |
LSZH jacket |
Short Term |
Long Term |
||
|
1-4 |
3.0±0.2 |
11 |
9.5 |
1000 |
300 |
|
6-12 |
3.6±0.2 |
14 |
12.5 |
1000 |
300 |

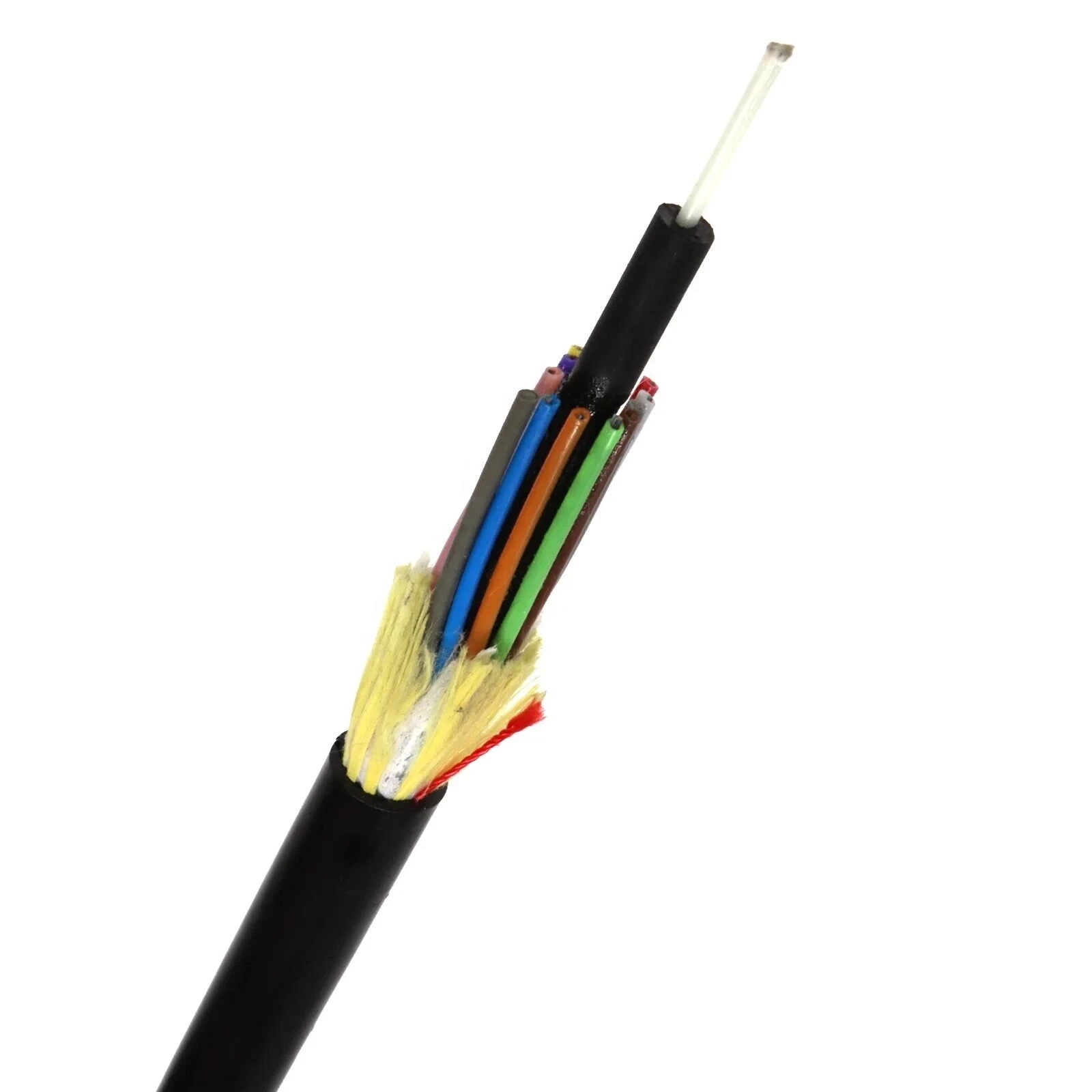

Detailed images
