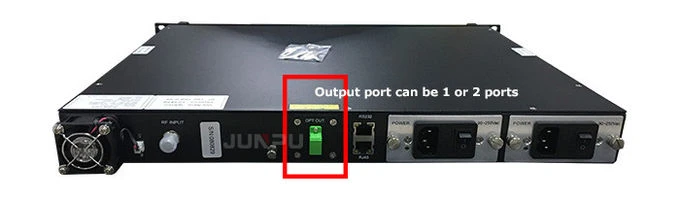

Network 1550nm Optical Transmitter Externally Modulated 2 Ports Per 10dbm
Description

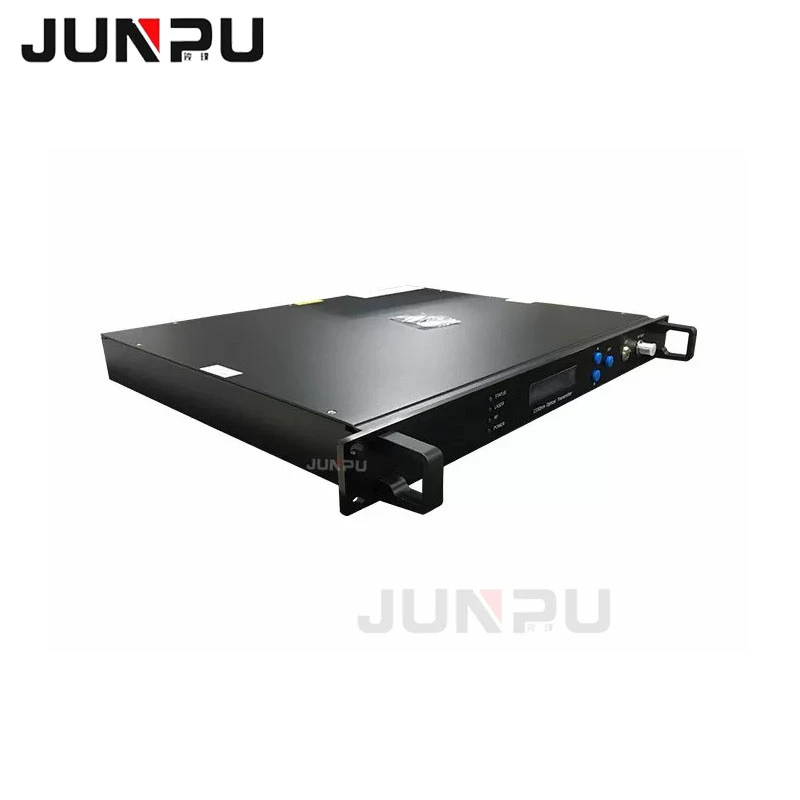

JUNPU 1550nm Optical Transmitter an economical 1550nm Externally Modulated Optical Transmitter, is produced specially for middle and small CATV station.
Optical transmitter adopts narrow bandwidth (Typ:=1MHz), low noise and continuous wave DFB laser as the light source, adopts CATV special LiNbO3 external modulator to modulate signal, and adopts a series of unique innovation technique to reach the excellent system control. With 47~862MHz bandwidth, CNR 2 53dB, CTB s -65dB, CSO s -65dB, SBS: 13dbmadjustable, Optical transmitter can make CATV network transmit video, audio and data with high perfomance. The machine is equipped with perfect
RS232 communication interface, SNMP network management and 1+1 backup power supply.

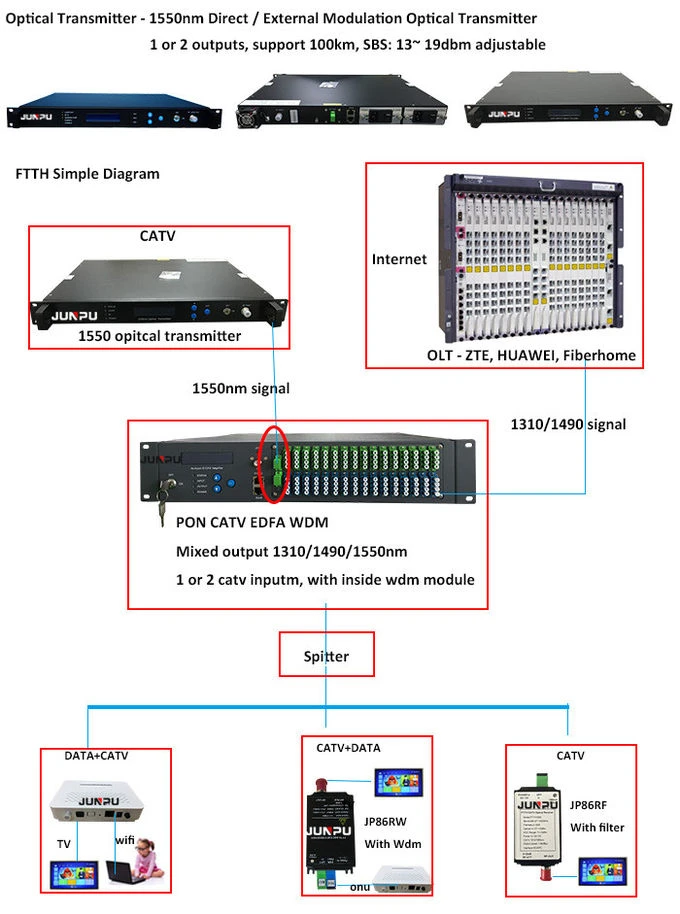

1550nm directed modulation optical transmitter max support 20km transmission distance.
If more than 20km, then it should be 1550nm extener modulated optical transmitter.
Details
|
Parameter |
Specification |
|
Product Name |
1550nm External Modulation Optical Transmitter |
|
Working Wavelength |
1550±10 |
|
SBS adjustable |
13 ~ 19dbm or 13,16,18,19dbm adjustable |
|
Output Optical Power |
1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11 |
Technical Specification
|
Parameter |
Index |
Remarks |
|
|
Optical Parameters |
Wavelength (nm) |
1550±10 |
1x5,1x9, 1x10,2x5,2x7,2x8,2x9,2x10,2x11 |
|
|
Output power (dBm) |
1×3 ~ 2×10 |
|
|
|
Optical return loss (dB) |
≥60 |
|
|
|
Connector type |
SC/APC |
Or FC/APC |
|
RF parameters |
bandwidth (MHz) |
47~862/1000 |
|
|
|
Input level (dBmV) |
23±5 |
AGC |
|
|
Flatness (dB) |
≤±0.75 |
45~862MHz |
|
|
Return loss (dB) |
≥16 |
45~750MHz |
|
|
Input inpedance (Ω) |
75 |
|
|
Link Parameters |
channels |
PAL-D/60ch |
|
|
|
CNR (dB) |
≥53 |
65Km fiber,Receive0dBm |
|
|
CTB (dB) |
≥65 |
|
|
|
CSO (dB) |
≥65 |
|
|
|
SBS (dBm) |
13~19 |
Step 0.1 |
|
General Parameters |
Net interface |
RJ45,R232 |
|
|
|
Power (V) |
90~265 |
Or -48VDC |
|
|
Power loss (W) |
≤50 |
|
|
|
Working Temp(℃) |
0~50 |
Automatically shell temp control |
|
|
Storage Temp(℃) |
-20~85 |
|
|
|
Working relative Temp |
20%~85% |
|
