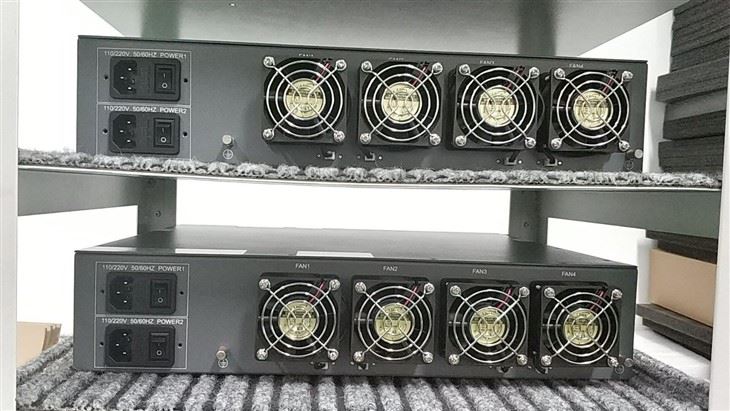

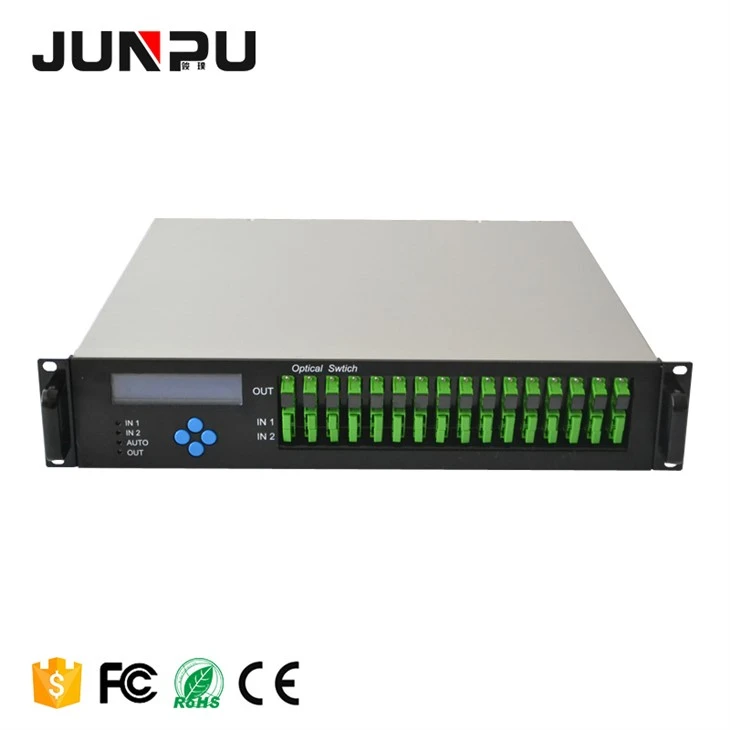

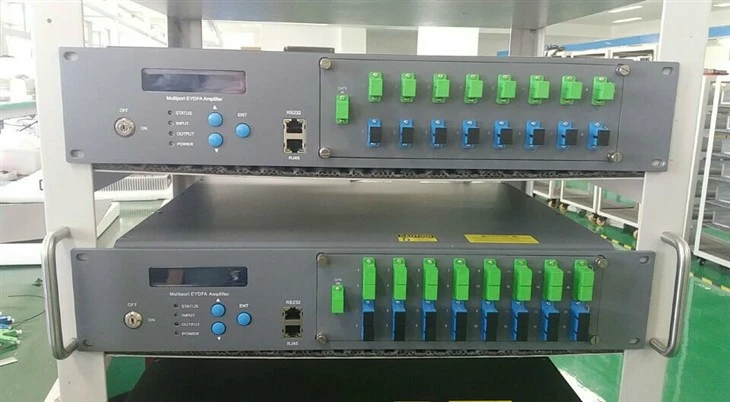

32 Ports CATV WDM EDFA

When optical transmitting over long distance, the optical signal has to be amplified many times because of the signal loss from fiber attenuation, connectivity losses, fiber splicing losses, etc. Before optical amplifier is invented, the optical signal has to be first converted into electrical signal, amplified, and then converted back to optical signal again.

Send Inquiry

Description

Technical Parameters

32 ports CATV WDM EDFA

EDFA, or Erbium-doped Fiber Amplifier, uses the Erbium-doped fiber as an optical amplification medium to directly enhance the signals. The amplifying medium is a glass optical fiber doped with erbium ions. The erbium-doped fiber gain medium amplifies light at wavelengths that are in the neighborhood of 1550 nm-the optical wavelengths that suffer minimum attenuation in optical fibers.

Wavelength Division Multiplexing (WDM: Wavelength Division Multiplexing) is a technology that simultaneously transmits multiple wavelength signals in an optical fiber. WDM technology increases the transmission capacity of an optical fiber several times to tens of times or even hundreds of times compared with single-wavelength transmission, thereby increasing the transmission capacity of the optical fiber, reducing costs, and having great application value and economic value.

PON+EDFA application EDFA optical amplifier mainly used for 1550nm, which make CATV over fiber tranmission more distance. The PON work with EDFA by FWDM, which realize triple FTTH application.

product-1792-1279 product-1920-1080

Features

Item	Unit	Specification	Note
CATV wavelength	nm	1535~1565	Central wavelength 1550nm
PON OLT wavelength	nm	1310/1490	Customized 1270/1577
CATV Input Power Range	dBm	-5dBm~+10dBm	Limit Range -10dBm~+10dBm
Max Total Output Power	dBm	41
Output Power Stability	dB	±0.1
Noise	dB	≤ 6
Return Loss	Input	dB	≥ 45
Return Loss	Output	dB	≥ 45
OSW	Input port		2	Optional
	Insertion loss	dB	≤1.5
	Switching time	s	＜0.5
Direct Modulation Transmitter	Wavelength	nm	1550	Optional
	Input level	dBuV	75~90
	Output power	dBmW	3/5/7/10
RF Test	Output level	dBuV	≥56	Optional
Optical Connector		SC/APC;SC/PC;LC/APC;LC/PC	Customized
C/N	dB	≥ 50	Testing conditions are carried out according to GT/T 184-2002
C/CTB	dB	≥ 63
C/CSO	dB	≥ 63
Power Supply Voltage	V	AC90V~AC265V
Consumption	W	＜ 150
Operating Temperature	℃	-5 - +50
Max Operating Humidity	%	Maximum 95% non-condensing
Storage Temperature Range	℃	-40 ~ +80
Max Storage Humidity	%	Maximum 95% non-condensing
Size	mm	602(L)480(W)89(H)
Package Size(1pc)	mm	635(L)635(W)155(H)
