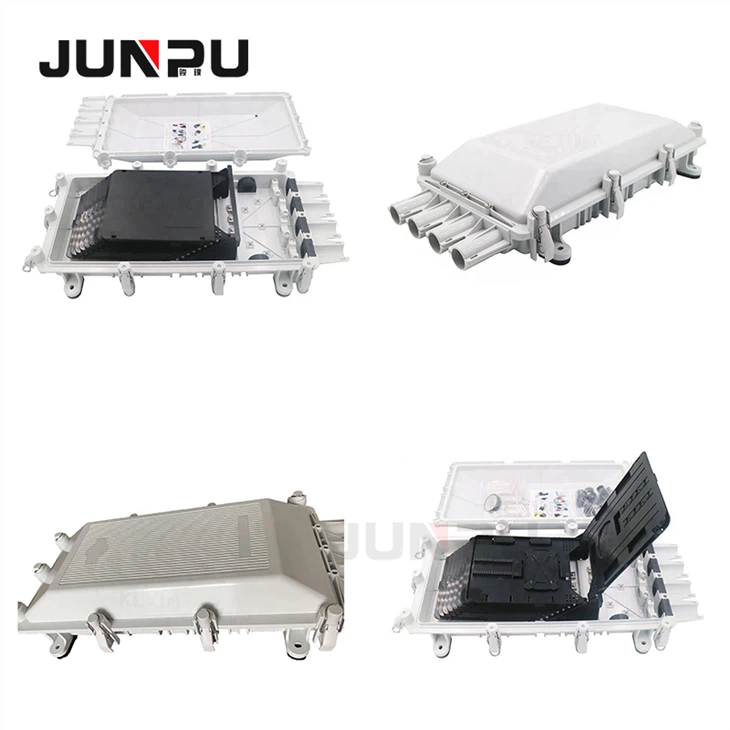

256 Core Optical Fiber Splice Box

256 Core Optical Fiber Splice Box

It can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 24 users requirements. It can help splicing, splitting, storage and management with suitable space.

The design of the box allows the mechanical continuity of the tensile elements of the cables and protects the fibers, the unions and the optical devices facilitating the organization of the splices and the storage of the fiber excess.

- The box is airtight and resistant to outdoor conditions so it can be installed both outside and inside buildings in log houses, manholes, walls, poles or cable galleries.

Advatages:

- It has 4 independent cable accesses at one end. Each of them allows the individualized entry of at least two medium capacity multifiber cables (double inputs) and up to 6 small capacity optical cables (7mm.).

- The closing lid is completely assembled and removed without the need for special tools thanks to the clip-type hermetic seal.

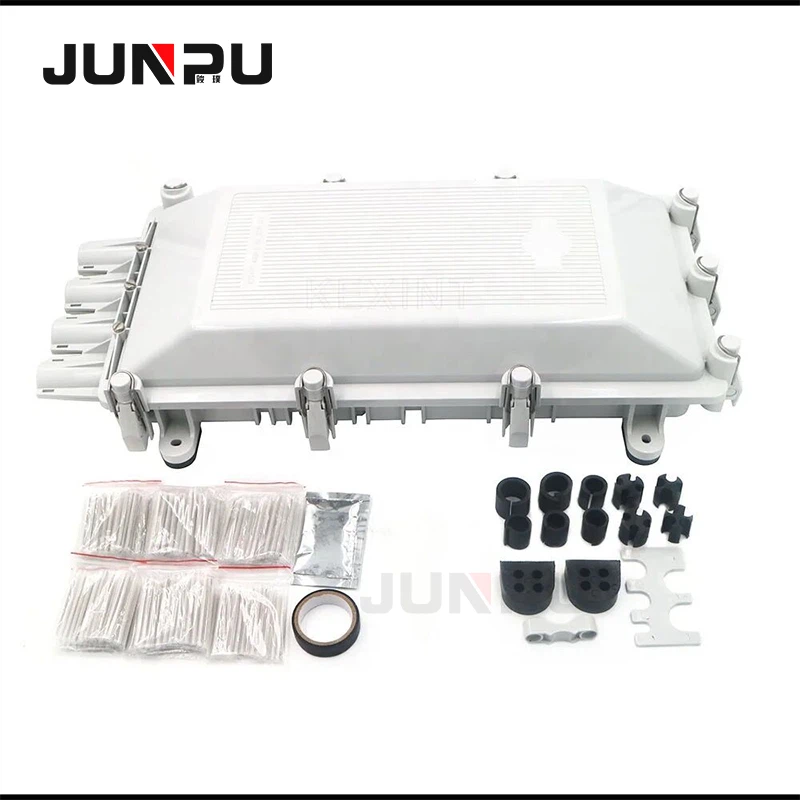

- The sealing of access cables to the box is made by rubber gaskets with pre-cut entries.

- Diameter inputs / outputs cables from 22 to 7 mm. Maximum 256 fusions of F.O (double layer).

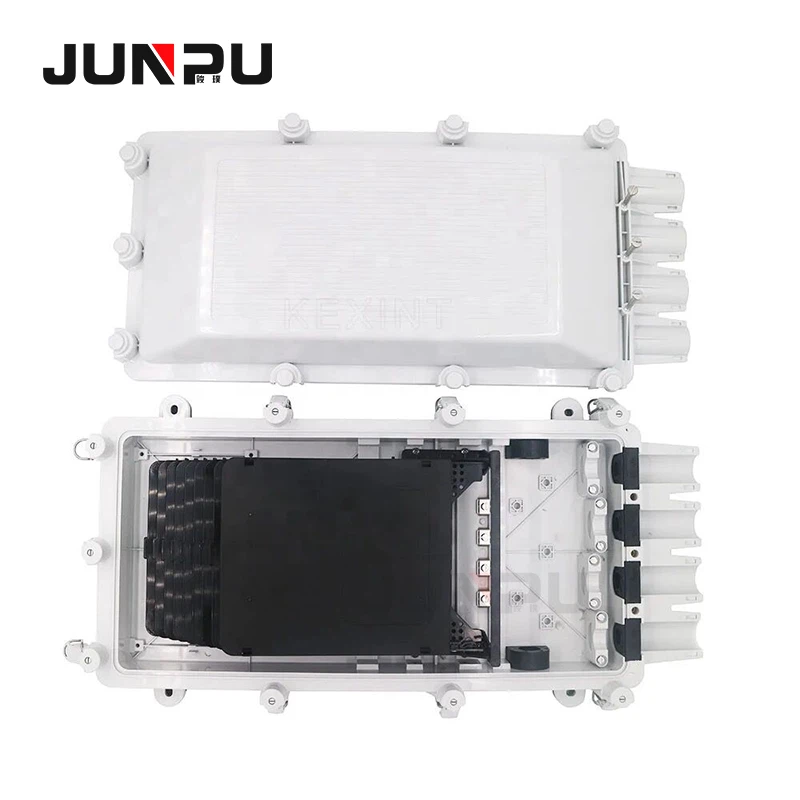

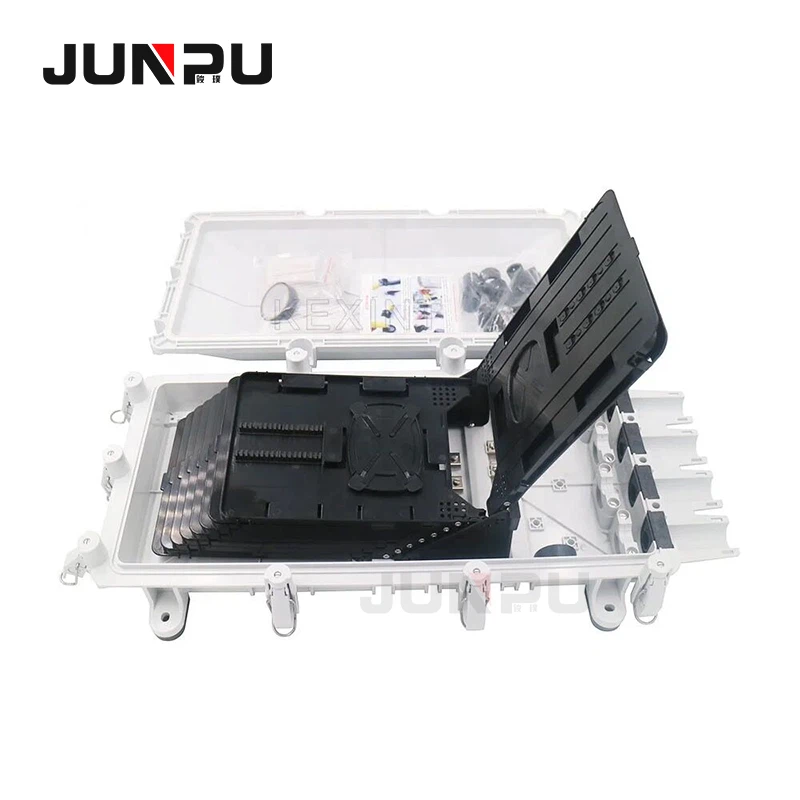

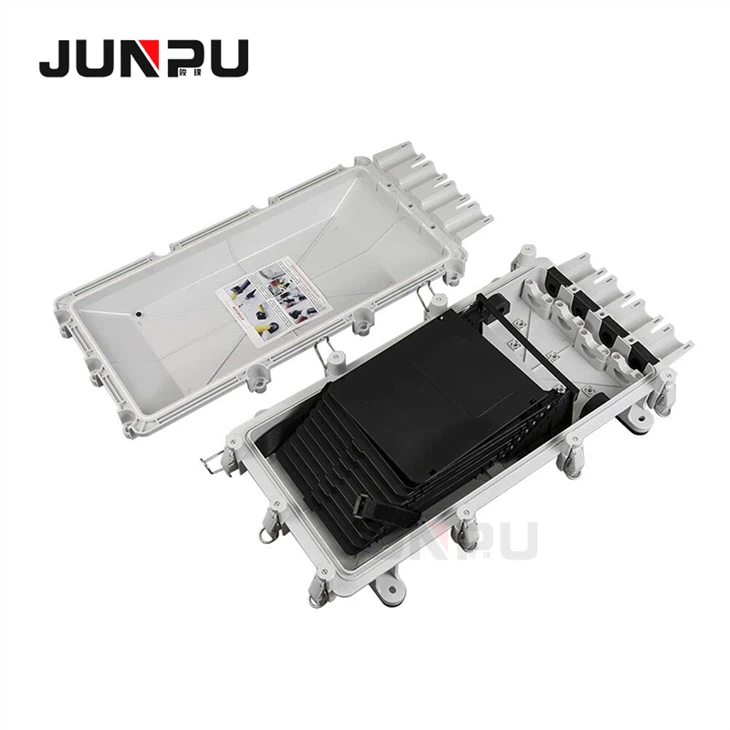

- Rectangular, wide-reach, easy-access splice trays with extendable tabs for better fiber storage up to 32 F.O. (double layer). Both the support block and the individual trays allow the rotation to 90º and its interlocking in fixed positions to facilitate installation.

- The boxes can be opened, closed and manipulated without interrupting the circuits in operation. It allows to join and segregate cables without having to cut all the fibers as well as the adequate storage of the tubes and / or fibers left over from the cables.

- Axial tension Load per cable> D / 45 mm x 1000 N. D: cable diameter. 1 hour by cable. Cable displacement <3 mm

- Flexion by cable: 30 ° flexion max. 500 N. Application of force: 400 mm from the end of the seal. No. of cycles: 5 / cable.

1.PC+ABS material used ensures the body strong and light.
2.Water-proof design for outdoor uses.
3.Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5.Ready for splitters: designed space for adding splitters.
6.Cable fixing units provided for fixing the outdoor optical cable.
7.Protection Level: IP65.
8.Accommodates both cable glands as well as tie-wraps
9.Lock provided for extra security
