GJS-D022 Fiber Optic Splice Closure
Description
GJS-D022 Fiber Optic Splice Closure
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting and hand hole-mounting. The ambient temperature ranges from –40℃ to +65℃.
Features
|
The process of installing FOSC
1. Step One - Open the closure
2. Cleaning the locale and determine where to install the FOSC and then place fiber cables required.
3. Check whether the main components and accessories have been well prepared inside the package.
4. Open the closure

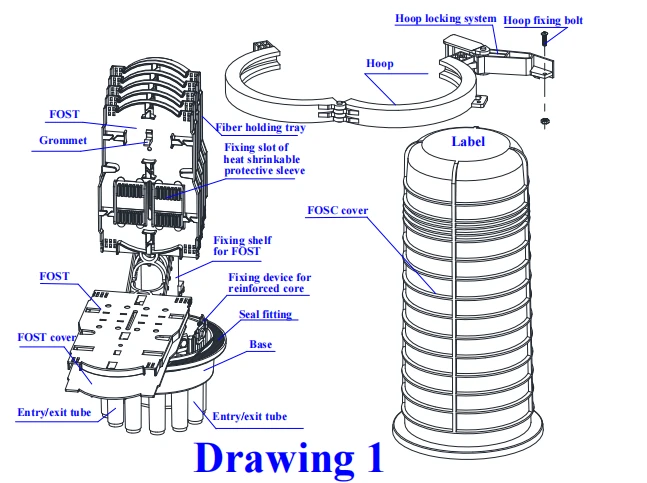

- Demount hoop fixing bolt and pull hoop locking system out, then proceed in demounting the hoop.
- Pull the FOSC cover upwards out, installation can begin.
|
